New 100W LED Module Outdoor LED Lighting Fixture Solar Light Module

Product Description

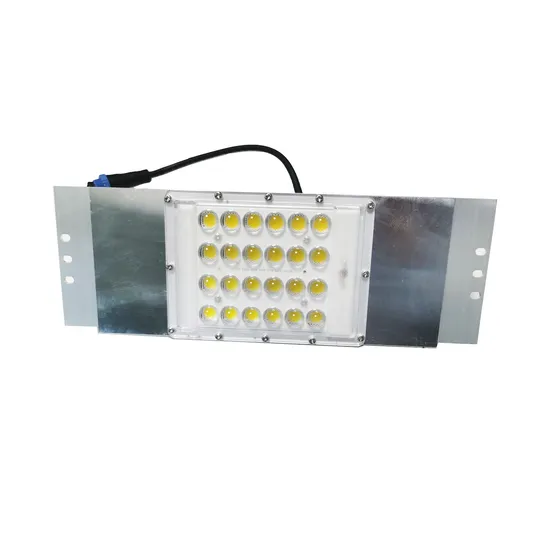

New 100W LED Module Outdoor LED Lighting Fixture Solar Light Module Product Description 3Ray Lighting is a professional led lighting solution provider in China. This led module is a private mould, a unique designed led module, which is 300mm long and 100mm wide, 80-120W power consumption, typically 100W with high efficency of 150lm/W, model number is 3R-M10.
3R-M10 module is designed for high power public lighting such as street lighting, high way lighting ,park lighting, industrial lighting, square lighting and even stadium lighting. The extrusion aluminum heatsink has excellent capability of thermal dissipation, with 24pcs 5050 led, and PC lens, it can output good lumens. Several kinds of optics available, which makes this module suitbale for most of lighting applications.
3R-M10 module standard version is DC144V input, it can be 72V input also, which can matach more drivers. With this module, customers can easily assemble into the lamps they want, and gives flexible power optiions, this is obviously help customers save storange cost for spare parts.

Product Parameters

Model Number	3R-M10
Light Source	SMD 5050 LED
LED Quantity	24pcs
Input Voltage	DC144V
Input Current	Max 0.75A
Power Consumption	80-120W
Efficiency	140-160 Lm/W
Normal Luminous Flux	12800-14800Lm
Related Color Temperature	2200K-5700K
CRI	Ra>70
Light Distribution	Type II/60°/90°
Average Beam Angle	30/60/90/75*150°
Working Temperature	-35 ºC ~ 50 ºC
Working Humidity	10 % ~ 90 % RH
Storage Temperature	-35 ºC ~ 60 ºC
Warranty period	5 years
IP Rating	IP65
Module Dimension	300×100×50mm
N.W. KG	0.9kg

Detailed Photos

Dimensions and Drawings

Test Report
