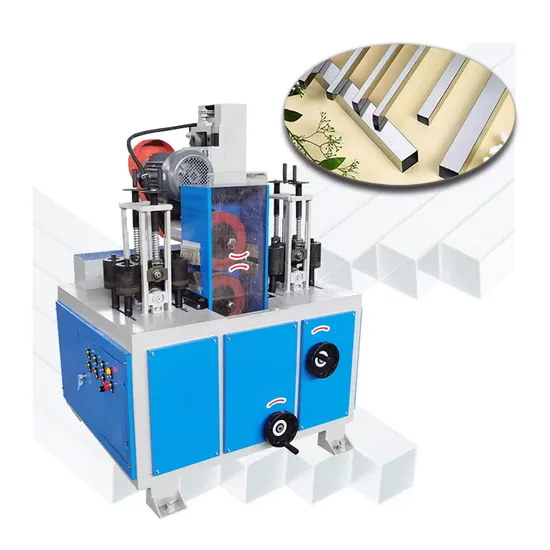

Xieli Machinery 2head Stainless Steel Square Tube Pipe Polishing Machine Rectangular Tube Iron Tube Copper Pipe Aluminum Pipe Polishing Machine
Basic Info.
Model NO.
FG-2
Certification
CE
Condition
New
Voltage
380V
Application
Metal Tube
Brand
Xieli Machinery
Product Name
Square Tube Polishing Machine
Polish Specification
10*10-120*120
Grinding Head Number
2
Machined Workpiece Length
0.8-12m
Feed Speed
0-20 M/Min Can Customized
Grinding Head Speed
2800 R/Min
Transport Package
Fumigation-Free International Wooden Cases
Specification
1600*1300*1600
Trademark
XL
Origin
China
HS Code
8460299000
Production Capacity
50000pieces/Year
Product Description
Product Parameters| Projet/Model | FG-2 | FG-4 | FG-8 | FG-16 | FG-24 | |
| polished square tube specifications(mm) | 120 | 10*10X120*120 | ||||
| 160 | 10*10X160*160 | |||||
| 200 | 50*50X200*200 | |||||
| 300 | 50*50X300*300 | |||||
| Polishing grinding heads number, (pcs.) | 2 | 4 | 8 | 16 | 24 | |
| Machined workpiece length(m) | 0.8-12 | |||||
| Steel pipe feed speed(m/min) | 0-20(It can be customized according to the user's requirements) | |||||
| External diameter of matching polishing wheel(mm) | 250-300 | |||||
| Grinding head speed(r/min) | 2800 | |||||
| Grinding head spindle diameter(mm) | 120 | 32 | ||||
| 160 | 32 | |||||
| 200 | 50 | |||||
| 300 | 50 | |||||
| Grinding head motor power(KW) | 120 | 4 | ||||
| 160 | 5.5 | |||||
| 200 | 7.5 | |||||
| 300 | 11 | |||||
| Grinding head feed mode | Manual / digital display electric (optional) | |||||
| Dedusting method | Dry fan bag | |||||
Main purpose and scope of application:
Is suitable for rectangular cross-section profiles such as square tube, square steel, strip steel, hexagonal square steel/square pipe and other metal or non-metallic surface derusting, wire drawing and 8 k mirror polishing, polishing grinding uses the dry form, can choose a variety of grinding materials and tool, (emery cloth Chiba wheel, hemp wheel, nylon wheel, cloth wheel, PVA, and wool wheel), each time can complete the multi-channel different degree of grinding, through reform the polishing wheel shape can also be for polishing profiled section.
