Good Quality Automatic Toilet Tissue Paper Roll Rewinding Making Machine

Product Description

Product parameters

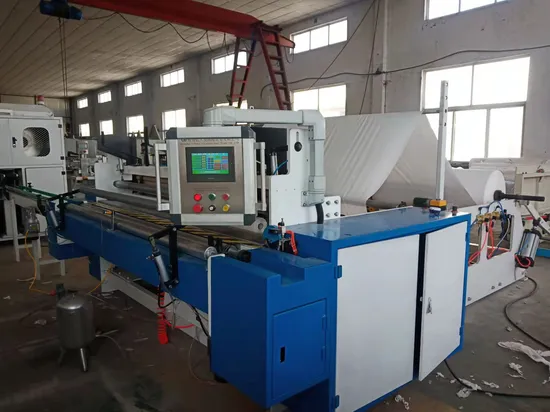

YDF-HLF-B Automatic Trimming Sealing Embossing and Perforating Rewinder adopts advanced PLC technology,variable speed adjustment,electronic braking ,and touch button multimenu type LCD screen operation control panel. And we independently developed long distance communication service system.It can detect the machine running at any time.Also the machine is newly added coreless roller shaped rewinding system.It has adopted PLC windpipe-shaped new technology.It does not need to put core or stainless steel pipe.It has fully upgraded the whole machine.

Model	1092/1575/1880/2400/2600/3150/3500
Width of raw paper (mm)	1200/1800/2100/2400/2500/3000/3500
Dia. of finished paper	60-150mm(tightness adjustable)
Dia. of finished paper core	32-50mm
Dia.of raw material	1100mm(other sizes are available)
Dia of core of raw material	76.2mm(other sizes are available)
Perforation pitch	4 perforating blade 90-160mm; 2 perforating blade 180-320mm
Reeling speed	150-200m/min
Parameter setting	PLC screen operation system
Unwinding unit	1-3 layers15-30gsm
Pneumatic system	3HP air compressor,Min.Pressure 5kg/cm² Pa (provided by customers)
Power	5.5-15kw
Overall Dimension(L*W*H)	6200*2600*800~6200*4000*800mm
Weight	3800~9000kg
Embossing Unit	Single ply embossing, two side embossing and steel to steel embossing(depend on selection)
Bottom Embossing Roller	Felt roller, wool roller and rubber roller (depend on selection)
Unwinding unit	1-3 ply
Unwinding unit driving	Gear box driving
Edge embossing unit	Steel to steel
Finished roll rewinding	Coreless rewinding system
Peforating Unit	Pneumatically separating unit
Calendering Unit	Steel to steel ,steel to rubber

Product display
Certifications
Customer visit
Company information
Qingdao YiDaFa International Trade Co., Ltd is located in Free Trade Zone, Qingdao, Shandong, China. The registered capital of our company is RMB 5 million. We have 6 production areas, 129 team members, including 39 technical experts, who have rich experience in the field of paper machine design. The main products of our company cover a variety of paper machinery, paper products processing machinery and related parts. We have done this business for more than 20 years in China. In 2014, we founded international trade department in order to stand in the international market.
Our mission is to be the leader in paper machinery field. Our principle is Science, Quality and Green. As we know, environmental pollution and waste of resources are two prominent problems in the traditional paper industry. To advocate the concept of global environmental protection, each of our paper machines has the advantages of energy saving, high efficiency and reducing pollution. Especially in waste water recycling use, we have unique processing technology.
Welcome any customers from all over the world to contact us freely. It is our sincere hope that we can establish a long-term and stable friendship with our strategic partners. Then we will work and explore together to create a brilliant future.
Packing&Shipping
FAQ: 1.How to install and maintain the machine?
Firstly, we will provide the installation guild with the machine for your reference.
Secondly, our company is responsible for training production workers for you, ensuring that the workers will be independent operation.
2.How can we get the matching accessories or wearing parts conveniently?
During the warranty, Our company can replace the accessories for free .Out of warranty,we can provide them at the preferable price. In fact, the wearing parts are standard parts that you could get it in your country at your convenience.
Our Services & Strength
1. The business contact on both sides will reply within 16 hours .
2. During warranty period, the company provide the relevant technical services for free,such as equipment quality problem resulting from the design and manufacturing equipment, which the company will be responsible for replacement and maintenance.
3.After the expiration of the warranty, our company provide customers with a lifelong technical service and spare parts with preferential price and efficient manner over a long period of time.
