1t 1.5t 2t 2.5t 3t Full Auto Complete Electric Manual Lifting Walkie Hydraulic Brick Pallet Forklift Reach Truck Reclaimer Order Picker Stacker Crane Price CE

Product Description

1t 1.5t 2t 2.5t 3t full auto complete electric manual lifting walkie hydraulic brick pallet forklift reach truck reclaimer order picker stacker crane price CE
The stand-on stacker is designed for efficiency in narrow aisles, offering enhanced maneuverability with a compact frame. Its stand-on design provides operator comfort and visibility, while maximizing lifting capacity and height. Ideal for medium-duty warehouse operations, it combines stability, speed, and precision to improve productivity.
Feature
Premium Safety and Durability: Complies with national safety standards, featuring strong frame, reliable hydraulic system, and multiple safety features.
Unique Design Features: Adjustable forks, high-strength manganese steel, customizable for various load sizes and operational conditions.
Reliable Components and Performance: Integrated control, battery life indicators, emergency power switch, and durable components for smooth operation.
Easy Operation and Maintenance: External charger, long-life battery, modular electrical system, and easy access for maintenance and trouble shooting.

Product Parameters

Model		CDD10	CDD15	CDD20	CDD30
Rated load	kg	1000	1500	2000	3000
Load center distance	mm	500	500	500	500
Height when gantry retracted	h1(mm)	2080/1580/1830/2080/2330/2070
Lifting height	h3(mm)	1600/2000/2500/3000/3500/4500
Maximum width during gantry operation	h4(mm)	2080/2480/2980/3480/3980/4950
Self-weight	kg	480/530/550/570/600/1500
Height of operating handle from the ground	h14(mm)	1440	1440	1440	1385
Fork height when lowering	h13(mm)	85	85	85	90
Overall length(foot pedal not unfolded)	l1(mm)	1750	1750	1750	2460/2490
Overall maximum width	b1(mm)	810	810	810	1020
Fork size(forged)	mm	40*100*1150	40*100*1150	40*100*1150	40*100*1150
Fork size(plate type)	mm	60*170*1100	60*170*1100	60*170*1100	70*160*1150
Aisle width(1m*1.2m pallet,1.2mplaced along forks)	Ast(mm)	2065	2065	2065	2200
Handle height from the ground	b5(mm)	550/690	550/690	550/690	685
Front overhang	mm	960	960	960	812
Turning radius	Wa(mm)	1600	1600	1600	1675
Boost speed,full/no load	m/s	0.08/0.1	0.08/0.1	0.08/0.1	0.10/0.12
Travel speed,full/no load	km/h	4/5.6	4/5.6	4/5.6	5/5.2
Descent speed,full/no load	m/s	0.15/0.12	0.15/0.12	0.15/0.12	0.10/0.09
Battery voltage/rated capacity	V/ AH	24/85	24/85	24/85	24/210

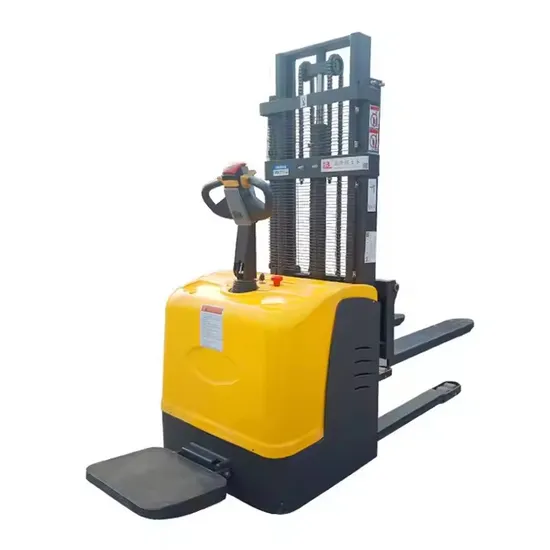

Stacker Picture

Product Description
THICKEND STEEL
Thicker "C" door frame steel,the choice of thicker steel to extendthe life of the door frame.
STRENGTHEN STACKER BODY
The whole vehicle adopts thickened steel plates, making the body more sturdy and durable.
CURTIS CONTRIL SYSTEM
Multifunctional handle, lift, furtleand hare speed adjustment,power display,emergencyreverse, easy to operate
THICK FORK
Adjustable forks, easy to operate,
suitable for more pallet sizes.
ANTI SLIP PEDAL
Thickened and reinforced anti-skid pedals for more comfortable and safe driving.


Packaging & Shipping

Certifications

Company Profile
Nanjing Liftor Machinery Co,.Ltd is a high-tech enterprise professionally specialized in R&D, production, sales, service of electric forklift, diesel forklift, pallet truck and stacker. It is located in Nanjing, Jiangsu Province with advanced forklift manufacturer technology, processing equipment and perfect product testing center. Our company is the China Automobile Industry Association member unit. We won the honorary title such as "Outstanding Enterprise of Quality Management, Credibility and Service AAA level", "National Enterprise of Good Creditworthiness", "National Quality Management Advanced Enterprise" etc. The company has already passed the safety production standardization and the quality authentication of ISO9001:2008 and European Union CE certification, fit-out national patent certificate. Our main storage equipment are electric truck, stacking car, reach forklift trucks, towing vehicle, order picker, AGV pilotless truck, counter balanced weight forklift and so on. It is widely used in various places of modern logistics.
FAQ
1.Are you forklift factory or trading company?We are the factory which have been manufacture electric forklift,diesel forklift,reach truck, stacker and pallet truck for more than 25 years.2.What is the delivery time?Generally forklift is can delivery immediately if the forklift are in stock. Or it is 15-30 days if the forklift are out of stock.3.What is the Payment?TT(bank transfer), LC at sight all will be accepted.4.Is OEM & ODM available?1). We can do the forklift according your design2). We can provide customized solutions according your requirments.5.Can you provide training for the customer?Yeah. We can provide forklift training for our customer.6.What certification do you have?Our company has passed ISO 9001:2008 and all of the forklift have CE certification.7.How can I get the best price?Price is the most concerning problem of every customer, if you want to know the forklift price, we need to know your detailed requirements.
