X6140 Horizontal Knee Type Universal Milling Machine

Product Description

Product Description
Tengzhou XILI Manufacturer Milling Machine X6140
1. High-quality milling machines with a sturdy construction.
2. The large table allows the machining of parts with high weight to 1800 kg.
3. Automatic feed in all axes used 3 servo-motors and 3 ball screws.

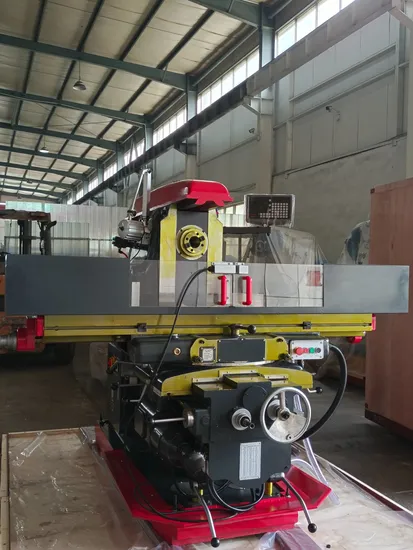

Detailed Photos

Specification
Specifications of Tengzhou Xili Manufacturer Milling Machine X6140

Specification	Unit	X6140	X6132
Table size	mm	1700X400	1325X320
T-slots(NO./Width/Pitch)		3/18/90	3/18/70
X axis travel(manual/auto)	mm	900/880	700/680
Y axis travel(manual/auto)	mm	315/300	255/240
Z axis travel(manual/auto)	mm	350/330	320/300
Rapid feed speed	mm/min	2300/2300/770
Table feed speed-X/Y	mm/min	23.5-1180
Table feed speed-Z	mm/min	8-394
Max load	kg	800	500
Spindle taper		7:24 ISO50
Spindle speed range	r/min	30~1500
Spindle speed step	steps	18 steps
Max.swivel angle of table		±45°
Spindle axis to table distance	mm	30-380	30-350
Main motor Power	kw	11	7.5
Overall dimensions	mm	2556×2159×1770	2294X1770X1610
Net weight	kg	3850	2650

Certifications

Packaging & Shipping
Delivery time: generally 30-45 days production time after confirmation of order
Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)
Packing size: 2100 x 2200 x 2250mm (L/ W / H), can be delivered in 20GP container


Company Profile
Our factory is located in Tengzhou City, with nearly 20 years history & more than 300employees.Products include:Gantry machining center.VMC machining center,conventional manual mills (vertical, horizontal, universal, knee-type, bed-type, gantry-typeetc.)
The main products have developed to 7 series in recent years: CNC Planer-type machining center CNC vertical machining center,CNC horizontal machining center series,CNC milling machine series,knee-type milling machine series,planer-type milling machine series,single-face milling machine series,vertical drilling machine series,drilling and milling machine series. Altogether there are more 40 specifications. Some products have national patents. In 2002, we passed the ISO9001 quality guarantee system certification, and got the certificate of CE in 2007. lt was awarded Shandong high technology company in 2010.
We are always pursuing the following notions of service and management: "customers first, quality first", "active improvement, winning through innovation", "credit is the basis".
Focusing on talents, we create the future relying on the science and technologies.
Focusing on quality, we rely on the customers to get common development.
After Sales Service
We will supply enough spare parts and accessories with our Manual Mill Milling Machine when shipment. Within one year after receiving our manual mill milling machine, If there are any damaged parts or accessoreis, We will supply them to you by air-mail free of charge.
FAQ
1. What is the MOQ ?
Minimum order quantity is 1 set.
2. What is the payment term ?
Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videosOther payment terms are also acceptable after discussion.
3. What is the trade terms ?
Jsually is FOB.
Others like CIF,CFR,EXW...... are also acceptable.
4. How long is the guarantee ?
12 month after machine's delivery from factory.
Within waranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5.What kinds of machines do you supply?
Company specialized in producing CNC & manual milling machines. Include:
CNC gantry machining center
Vertical machining center
Simple NC milling machine
Conventional manual milling machines (Vertical, Horizontal, Universal, Turet mil, Swivel head mil, Power sliding ram type, Bed type,Tool milling machine, Gantry type etc.)
6.How can I believe your company ?
XILI Machine Tool has more than 20 years milling machine production history. covers an area of about 50000 square meters,with 20 million CNY fixed assets and more than 300 employees.
Xili Machine Co.,Ltd. is a ISO9001 company, all products are with CE certificate.
Welcome your inquiry and visiting.
If you need any further information, feel free to contact us.
