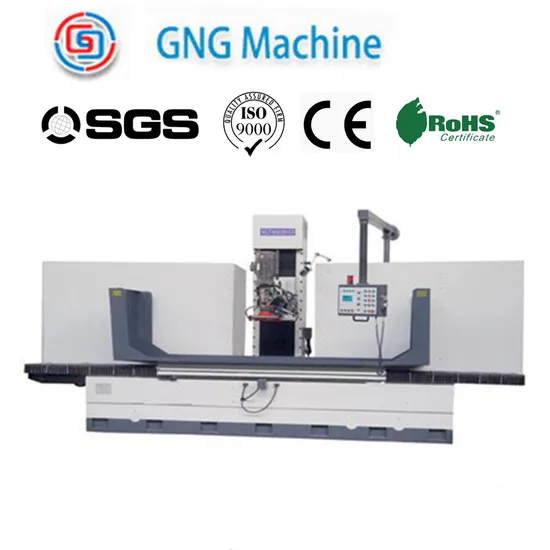

Sg60160sdcnc Column Moving Guide Way Grinder Machine
| US$50,625.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SG60160SD
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Worktable Size(mm)
Worktable Size
Floor Space(Lxw)(mm)
4700X3000
Max Loading Capacity(with Chuck)(Kg)
1230
Spindle Motor(Kw)
17
Weight
8500kg
Transport Package
Carton
Specification
CE ISO
Trademark
G&G
Origin
China
HS Code
8458910000
Production Capacity
200/Per Month
Product Description
Min. Order Quantity: 1 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Type: Surface
Grinding Machine
CNC or Not: Normal
Max. Grinding Diameter: 610
Max. Grinding Length: 1600
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: SGT60160SD
Voltage: 380V
Power(W): 17000
Dimension(L*W*H): 2000X2100X2175mm
Weight: 3300kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: Packed in playwood case
Delivery Detail: 30-45days
Specifications
Worktable sizeL610X1600
Gringding height: 600/790/850/1050
Spindle power: 5.5KW
| SG SGA plc cnc column moving surface grinder | |||
| Item/Model | Unit | SG60160SD | |
| SG60160CNC | |||
| table size(WxL) | mm | 610X1600 | |
| max. grinding(WxL) | mm | 610X1600 | |
| max. distance between spindle center line and worktable surface | mm | 820/1050(925) | |
| magnetic chuck size (optional equipment) | mm | 600x800x2 | |
| speed of table longitudinal movement | m/min | 5-25 | |
| wheel head cross moving | auto feed | mm/t | 1-30 |
| rapid speed | m/min | 0.05-2 | |
| hand wheel feed | mm/div | 0.005 | |
| wheel head vertical moving | auto feed | mm/t | 0.005-0.05 |
| rapid speed | mm/min | 0.05-2 | |
| feed of handwheel | mm/div | 0.005 | |
| wheel | speed | rpm | 960(1450) |
| size(ODxWxID) | mm | 500x75x305(450x75x203) | |
| motor of spindle | kw | 18.5 | |
| max. loading capacity of worktable with chuck | kg | 1230 | |
| total rated power | kw | 28.5 | |
| height of machine | mm | 2720/2920 | |
| floor space(LxW) | mm | 4700x3000 | |
| gross weight | kg | 8500 | |
