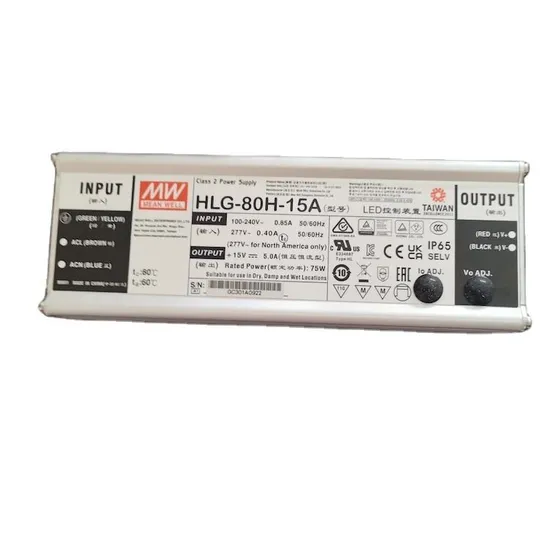

Mean Well Hlg-80h-15A 80W Class 2 Constant Current + Constant Voltage Mode LED Driver
| US$22.90-23.80 | 500 Pieces (MOQ) |
Basic Info.
Model NO.
HLG-80H-15A
Driving Method
LED Constant Current
Circuit Structure
Conventional Step-down Transformer
Certification
TUV, CE, RoHS, CCC
Power Supply Mode
Constant Current Source
Modulation System
No Dimming
In-Out
Step-down Type
Power Supply Voltage
AC85-265
Pack Sealing Size
195.6X61.5X38.8mm
Brand
Mean Well
Modelnumber
Hlg-80h-15A
Aluminium Case
Waterproof Power Supply IP65
Output Power
80W
Typical Lifetime
>62000hours
Warranty(Year)
7-Year
Selling Units
Single Item
Output Current
3-5A
Input Voltage
220V
Single Gross Weight
1.000 Kg
Output Voltage
15V
Output Frequency
50~60Hz
Transport Package
Cartons
Specification
IP65
Trademark
MEAN WELL
Origin
Guangdong, China
HS Code
8504401500
Production Capacity
1000PCS/Month
Product Description
Product Description 80 WATT Class 2 POWER SUPPLY HLG-80H-15A IP65 Waterproof Constant current + Constant voltage mode driverFeatures:
1.Constant voltage +constant current mode output.
2.Metal housing with class I design.
3.Built-in active PFC function.
4.Class 2 power unit.
5.IP65 rating for indoor or outdoor installations.
6.Function options:output adjustable via potaentiometer.
7.Typical lifetime>62000 hours.
8.7 years warranty.
Applications: Led street lighting, High bay lighting , Parking space lighting, LED fishing lamp, LED greenhouse lighting...
Description:
HLG-80H series is a 80w AC/DC LED DRIVER featuring the dual mode constant voltage and constant current output. HLG-80H operates from 90-305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40~ +80 Degree Celsius case temperature under free air convection. The design of metal housing and IP65 Ingress protection level allows this series to fit both indoor and outdoor applications. HLG-80H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Model Encoding:
| Model No. | HLG-80H-15A |
| DC Voltage | 15V |
| Rated Current | 5A |
| Voltage ADJ. RANGE | 13.5-17V |
| Rated Power | 100VAC-305VAV |
| EFFICIENCY (Typ.) | 93% |
| Current ADJ. RANGE | 3-5A |
| Dimensions and weight | 195.6X61.5X38.8MM, 0.86KG |
| Package | 16PCS/CARTON, WEIGHT 14.4KG. |
Dimensions & details
Application
Export market : North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging & Shipping
