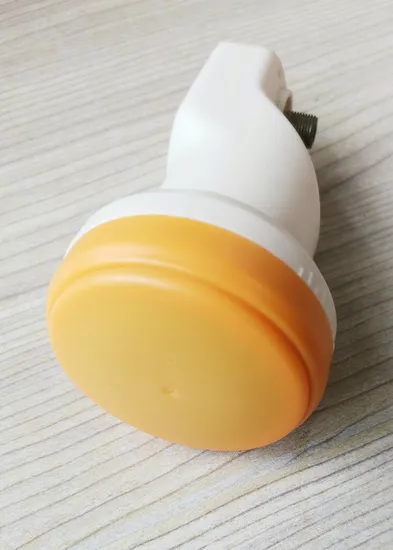

Ku Band Universal Single LNB for Satellite Dish

Product Description

universal single ku band LNB one port

Product Description
-- Please note that:
Our company is specialized in manufacturing all kinds of SATV/CATC SPLITTERS, TAP, ANTENNA, LNB, Amplifier . if you can't find the exact items you need, please send your drawing or part NO. or pictures to us, we will provide the best solution for you. Thank you very much !

-- Main Specifications SPECIFICATIONS:
1) Input Frequency: 10.70~11.7GHz(LOW BAND);10.70~12.75GHz(HIGH BAND)
2) Output Frequency: 950~1950MHz(LOW BAND);1100~2150MHz(HIGH BAND)
3) LO Frequency: 9.75/10.6GHz
4) Noise Figure: 0.2dB(Typ.)
5) Conversion Gain: 60dB(Typ.)
6) F/D Radio: 0.6
7) Input Interface: Wave guide WR-75
8) Cross Pol. Isolation: 20dB(Typ.)
9) Image Rejection: 45dB(Min.)
10) Polarity Switching Voltage:Vertical: 12-14.5V ;Horizontal:16-18V
11) Operating Voltage: Vertical:11.5 ~ 14 Vdc ;Horizontal:16 ~19 Vdc
12) Band Switching Pulse: 0/22kHz tone
13) Gain Flatness: ±0.5dB/27MHz
14) D.C.Current Consumption: 160mA(Max.)
15) LO phase noise: -70dB/Hz at 10kHz;-90dB/Hz at 100kHz;-110dB/Hz at 1MHz
16) Output power(at 1dB gain compression): 10dB(Min.)
17) Out put VSWR: 2.5:1(Max.)
18) Output connector: 75Ω F type female
19) Operating Temperature: -40 Celsius degree ~ +60 Celsius degree
20) Storage Temperature: -55 Celsius degree ~ +80 Celsius degree

PRODUCT NAME	LNB
Specification:	According to the costomer requests
Certification:	ROHS
Delivery:	The stock goods will be delivered within 3days,and the customized goods will be delivered within 1~3 weeks as soon as we received the payment.
Sample:	Free
MOQ:	The MOQ of most products is 1000 pcs, if we have stock for the item, we can sell you them without MOQ.
Terms of trade:	EXW,FOB,CIF,CPT ect
Payment Terms:	T/T in advance,Western Union,Paypal,L/C etc.If the amount more than 5000USD,we can do 30% T/T deposit,70%T/T balance one week before shipment after receiving cargo photoes.
Application:	Widely used in Automotive, telecommunication equpment,computer,controllers,alarm security,appliance instuments and fields
Serivce:	ODM/OEM
Other service:	CO,CCPIT

FAQ:
Q1:Are you a trading company or manufacturer?
We are professional manufacturer for audio&video cable . also we supply of different electrical and electronic items
Q2: why will you choice us :
more than 15 years of professional teams will give you good quality products ,good service ,and reasonable price .
Q3:Can we have our logo or company name to be printed on your products or the package?
We offer OEM , ODM . our designer can make special design for you .
Q4: Is the MOQ fixed?
The MOQ is flexible and we accept small order as trial order.
Q5:Can I have a visit to you before the order?
Sure,welcome to visit our company ..
our company is only one hour by train from shanghai
