Estop Same as Makino Factory Custom High-Precision CNC High Speed Machine Center

Product Description

Product Description

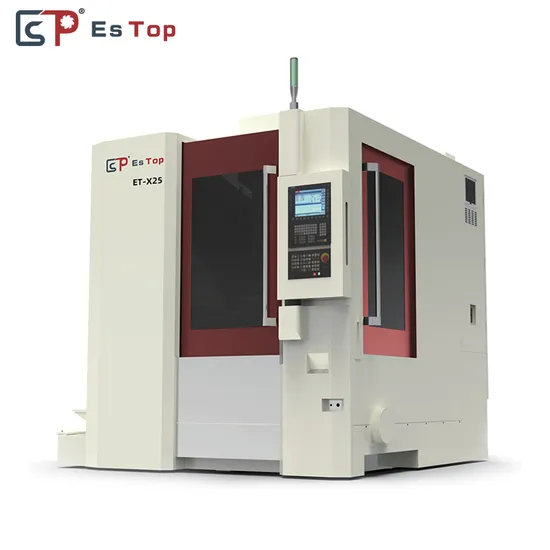

Estop Factory Custom High-Precision CNC High Speed Machining Center
Product Application:
- High speed, high rigidity, high performance, and high efficiency.
- Perfect for industries such as precision mold, ultra-precision parts, semiconductor, medical, ceramics, graphite, electronics, etc.
- Professional technical team with years of experience in CNC machine tool manufacturing.
- ISO9001 quality system certification.
Product Profile:

High Speed Machine Center
Through efficient high-speed cutting technology and multi-axis linkage processing technology, we ensure that every processing step of the mold has extremely high dimensional stability at high feed speeds, ensuring that each set of molds remains in optimal condition during production.

More Products:
Product Parameters
Product Parameters:

Type	Parameter	Unit	H6
Travel	X axis	mm	600
	Y axis	mm	500
	Z axis	mm	350
	Distance from spindle end surface to working surface	mm	120-470
	Gate width	mm	780
	Max height	mm	395
Line rail wire rod	Line rail specifications	mm	X/Y/Z:45/45/3590 (INA)
	Ball screw specifications	mm	X/Y/Z:4010 (NSK)
Load	Worktable dimension	mm	660*500
	T-slot	mm	6-18/100
	Table max loading capacity	kg	400
Spindle / ATC (standard configuration)	Spindle		HSK E40 Inner Tibet electric spindle
	Speed	rpm	30000 (Option 42000)
	Spindle motor	kw	11
	ATC	/	20T
Feed	X / Y / Z axis fast speed	m/min	30
	X / Y / Z axis feed speed	m/min	12
Accuracy	positioning accuracy	mm/mm	±0.0025
	Repeat positioning accuracy	mm/mm	±0.0015
Weight	Machine weight (approx.)	Kg	6500
Power supply	Power supply capacity (380V / 50 HZ)	KVA	20
	Air Pressure	bar	6-8
Outline dimension	Length / Width / Height	mm	2200*2390*2500

The main components of the machine tools & standard annex

Item	Name	Brand
1	Numerical control system	Siemens 828D
2	Three axis Ball screw	Japan NSK
3	Three axis Line rail	Germany INA
4	Spindle components	DM
5	Ball screw bearing	Japan NSK
6	clutch	Germany R + W (bellows type)
7	Main contactor	France
8	Main pneumatic elements	Japan SMC
9	Source	Taiwan Ming wei
10	Main wire	Taiwan Xinguang-oil prevention hotline
11	lathe bed	DM
12	Expansion protective cover	Taiwan-funded
13	Measuring system for tool	Renishaw
14	Linear scales (LS187C-1540-840-740)	HEIDENHAIN
Item	Specifications	Quantity
1	Spindle blowing system	1 set
2	Tools cooling system	1 set
3	Full cover protective cover	1 set
4	Automatic lubrication system	1 set
5	Work light	1 set
6	Adjust the cushion blocks and the bolts	1 set
7	Cast box	1 set
8	water tan	1 set
9	Tools box	1 set
10	Tool holder + pulling nail	1 set
11	Lock tool seat	1 set

One-stop Shopping
You can click on the picture to view the products you are interested in.
Our Service
Speed up your production and Achieve high quality with ESTopCNC.Revolutionizes your factory with ESTopCNC machine.
Installation:
You have decided to purchase products from ESTOP and now want to ensure that they are commissioned in a quick and hassle-free manner. Our installation service makes things as easy as possible.
Maintenance and repair:
Exceptionally high-quality machines require an exceptionally professional service. That's why it pays to bring in specialists. At ESTOP, we know our systems better than anyone else. But there is much more to a good service than this: we are easy to contact, offer prompt availability and boast motivated employees.
Spare parts:
Do you want to perform any repairs that become necessary yourself? Send us your name, part number and the quantity of the required spare parts. Your order will be processed by us immediately. The prompt delivery of ESTOP genuine spare parts is often crucial to ensure the fast repair of a system. The most popular spare parts are stocked in our factory in China.
Training:
To enable you as a user to work skilfully and safely with ESTOP's milling machine and to evaluate the acquired data in a professional manner, ESTOP offers in-house seminars.
Custom made:
Customized design outside of the typical condition.
Service contact:
Do you have a question for our Service Team or would you like to order new machine or spare parts? Professional and easy to contact - you will find the right person to speak to for any matter here.
Company Profile
Quality Control
Packaging & Shipping
FAQ
Q1: Where is your factory located?
A1: Our factory is located in Dongguan city and Chongqing city.
Q2.How can I choose the most suitable machines ?
A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q3. What is your minimum order quantity and warranty?
A3: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine.
Q4: How to ensure the quality?
A4: 1.Firstly we choose best material for the processing.
2.Being and after processing, we will inspect the finished parts.
3.Machine finished, our company QC will test the machine as per customer requests.
Q5: How do we get the training for the machines?
A5: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to your place.
Q6. What is your trade terms?
A6: FOB, CFR, CIF or others terms are all acceptable.
Q7. What is the payment Terms ?
A7: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you.
Q8. What is the package of the machines?
A8: The machines standard packed by iron pallets or Fumigated wood with plywood films.
Q9.When is the delivery time?
A9: We will delivery then within 15-60 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly.
Q10: How to deal with the after-sales service?
A10: 1. Technician available for training and installation at customer's company
2. Internet service by sending emails and videos, communicating online or calling
3. One year warranty. During the warranty period, we will sent damage of the machine parts (non-human factors)for free.
