Agricultural Farm Harvesting Machine 3 Rows Corn, Maize Combine Harvester

Product Description

4YZP-3GA CORN /MAIZE THREE ROWS Combine Harvester Main Technical Parameters
Advantages:
Compact structure, excellent performance,
High threshing ability, low broken rate. Low lost rate
Thorough clearance with double shakers for re-threshing
Famous brand engine with large power and stable performance

Combine Harvester Main Technical Parameters:

Overall	Model	4YZP-3GA
	Type	Wheel self-propelled
	Rows of cutter	3
	Width of Cutting	1800 mm
	Application row width	450-650 mm
	Cutting center Distance	550 mm
	Productivity	0.3-0.55 hectare/hour
	Total Weight	5500Kg
	Working Dimensions(L×W×H)	6250×2000×3200 mm
Engine	The model of engine	YC4A190
	Engine	Diesel engine
	Power	190HP
	Rated speed	2300 r/min
	Oil consumption	≤25kg/ hectare
	Oil tank	235L
Chassis	Gear-box	Mechanical (3+1)*2
	Steering	Hydraulic
	Minimum ground clearance	300mm
	Minimum turning radius(L-R)	5200-5400mm
	Tire Size Front/Rear	13.6-24 / 10-15
	Wheel track Front/Rear	1620-1450mm
	wheel base	2647mm
	Working Speed	2~6Km/H
	Cabin	Deluxe Cab
Grain Tank	Volume	2000L
	Unloading grain height	2070mm
	Unloading type	Hydraulic
Peeler Machine	Stripping Type	Rubber Roller
	Stripping Size	Φ72*830
	Quantity of Stripping Roller	16
Stalks Crusher	Working width	1800mm
	Type	Free swinging knife type

Combine Harvester Main Features: Function: corn picking + peeling + corn straw cutter and chopped Grain to be collected automatically and fell in down tray while peeling Compact structure, small turning radius, is suitable for small farmland It can cross rows to collect the maize High rate of peeling, less broken grain, The cutting effect is perfect Named brand engine, enough power; Strong gearbox and reliable The clearing fan on conveyor as optional Luxury cab brings comfortable working environment; Visual imaging system Air conditioner and Hydraulic transmission HST as optional

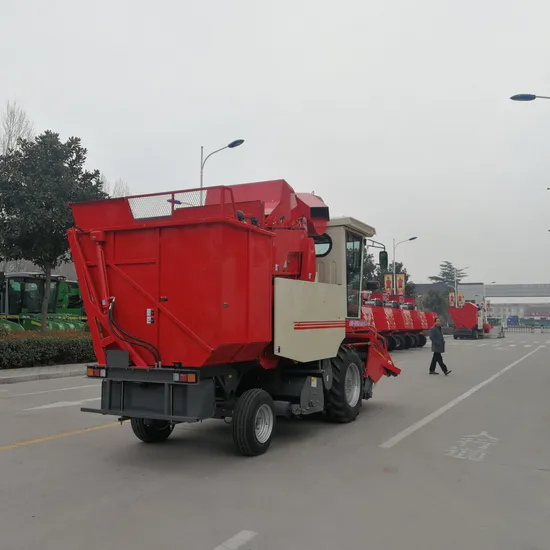

Picture show
Advantages of corn harvester: 1. The header adopts the forced feeding method of the reel chain, which can realize harvesting without rows and horizontal harvesting at the head of the field;
2. The harvesting table's ear-picking roller adopts a double-helical ear-picking roller, which pulls the stem quickly without winding or clogging;
3. The hob-type front-mounted crusher and the center-mounted returning machine can deeply crush the straw and return it to the field, with low cutting stubble and high straw crushing rate:
4. The peeling machine adopts 4 sets of 16 rollers, finger-type pressure feeding device, and flexible peeling technology, with high peeling rate, low seed knocking rate, and high peeling efficiency;

Q'TY IN 40 HC
Qty' of Loading: 1 Sets/40'HQ
Loading into Container photos
OUR CERTIFICATE
ISO 90001 &CE Approval .
8.our main products :
it includes walking tractor (power tiller)8-25hp ,wheeled tractor ,driven by single cylinder diesel engine 15-30HP;crawler tractor (40-110HP),Wheel tractor driven by multi-cylinder diesel engine (20
-240hp).can match kinds of farm implements .
9.kinds of farm implements and tools
10.Questions
1)how long is the warranty time ? it is 12 months since the date of B/L ;
2)how long is the delivery time ? it is about 20-30days normally since the date of 30% deposit.
3)what is the payment terms? the L/C at sight or Payment in Cash by T/T is acceptable .
4)what is the service life ?it is more than 8 years ,if the baler has a good maintanence as the manual .
5)how to order the baler? if you need it ,contact with our business manager who will take you a good solutions as your requirements .
6)how about the spare parts ? can get the spare parts from the local dealer or agent ,or directly order it from our factory .
