Bed Type Vertical Turret Milling Machine

Product Description

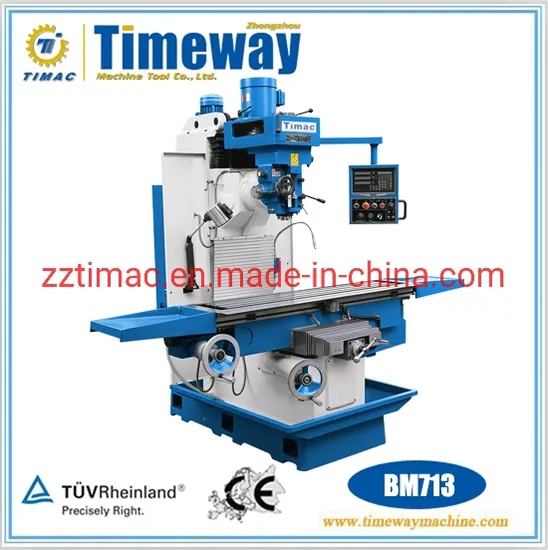

Bed Type Milling Machine BM713

1.Table Size:320 x 1525mm
2.Spindle speed:70-3620 r.p.m(10 steps)
3.CE norms

Standard accessories:
Milling chuck, Spindle arbor, Sleeve, Drilling chuck, Draw bar, Ring spanner,
Inner hexagon spanner, Work light, Coolant system, Operation Manual(English edition).

Optional accessories:
3 axes digital readout system(DRO), Machine vice, Universal dividing head,
Rotary worktable, Spindle guard, 58pcs clamping kits, ect.

Specification	Unit	BM713
Table size	mm	1525x320
T-slot number x width x pitch	no	3 x 14 x 80
Max. load of table	kg	600
Longitudinal travel - X axis	mm	1050
Cross travel - Y axis	mm	470
Vertical travel - Z axis	mm	500
MAIN SPINDLE :
Spindle taper		ISO40
Spindle quill travel	mm	127
spindle speed /step	rpm	70-3620/10
Distance between spindle axis to column surface	mm	450
Distance between spindle nose to table surface	mm	70-570
FEEDS :
Longitudinal/cross feed range	mm / min	X: 20-1200(variable) Y: Manual
Vertical feed	mm / min	1200
Longitudinal/cross rapid feed	mm / min	X: 1200 Y: Manual
Traverse rapid feed	mm / min	1200
POWER :
Main motor	kw	3.7
Feed motor	kw	0.4
Elevating motor for headstock	Kw	0.37
Coolant motor	kw	0.04
OTHERS :
Overall dimension	mm	2565x1920x2290
Package dimension	mm	2010x1900x2250
N.W / G.W	kg	2500 / 2700
