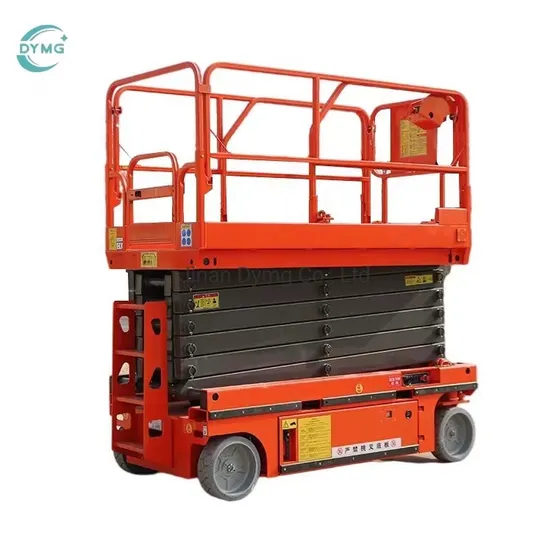

Dymg 6m 8m 10m 12m 14m Electric Self-Propelled Scissor Lift for Safe Aerial Work Access

Product Description

Product Description
Self-propelled scissors lift Has the function of automatic walking machine, integrated design, built-in battery power, meet in different working conditions, no external power supply, no external power traction can lift freely, and the equipment running and steering is also just a person can be completed. The operator only needs to master the control handle to the equipment before the complete equipment forward and backward, steering, fast, slow walk and equal action. Self scissors type lifting platform is mobile and flexible, convenient operation, labor saving, make high-altitude operations more efficient and convenient, is the ideal equipment for high-altitude operations, the safety production of the modern enterprise.
Product Parameters

Model	DYMG 1530	DYMG 1930	DYMG1932	DYMG 2646	DYMG 3246	DYMG 4047	DYMG 4590
Lifting height (m)	4	5.8	6	8	10	12	14
Working height (m)	6	7.8	8	10	12	14	16
Load capacity (kg)	240	230	550	450	320	320	227
Platform size (m)	1.29x0.7	1.67x0.74	2.3x1.13/0.81	2.3x1.13/0.81	2.3x1.13	2.3x1.13	2.67x1.13
Dimensions (m)	1.43x0.76x1.98	1.85x0.79x2.2	2.48x1.19x2.19	2.48x1.19x2.32	2.5x1.19x2.45	2.5x1.19x2.58	2.85x1.4x2.59
Platform Extend Length	600mm	900mm	900mm	900mm	900mm	900mm	900mm
Platform Extend Load	100kg	113kg	113kg	113kg	120kg	120kg	120kg
Max.Grade Ability	25%	25%	25%	25%	25%	25%	25%
Max.Drive Speed(Stowed)	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h
Max.Drive Speed(Raised)	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Net Weight (kg)	860	1450	2050/1880	2190/2030	2500	2960	3390
Handrail	1.1m	1.1m	1.1m	1.1m	1.1m	1.1m	1.1m
Tire	230x80mm	305x100mm	381x127mm	381x127mm	381x127mm	381x127mm	381x127mm
Ground clearance (mm)	60/15	83/16	100/20	100/20	100/20	100/20	100/20
Lifting Motor Power	24v/0.8kw	24v/3.3kw	24v/3.3kw	24v/3.3kw	24v/3.3kw	24v/4.5kw	24v/4.5kw
Battery	2x12v/80Ah	4x6v/225Ah	4x6v/225Ah	4x6v/225Ah	4x6v/225Ah	4x6v/225Ah	4x12v/225Ah
Battery charge	24v/30A	24v/30A	24v/30A	24v/30A	24v/30A	24v/30A	24v/30A

Detailed Photos
Main Features
1. Quiet and excellent mobility
The scissor lift uses storage battery as the power source, making low noise and no emission while working. It features quiter, cleaner operation for a variety of environments, such as office buildings, shopping malls, hotels, schools and etc.Zero-radius turning system and compact body making up-down, left-right, forward-backward,turning, movements easily operated by one operator.
2. Grade ability
Scissor lifts offer up to 25% grade ability while driving on slopes with safety protection.
3. Fold able guardrail
The guardrails of platform are fold able or dis mountable, and can reduce the height of the whole machine.,which facilitates the transportation and enables it go through small openings and operate in small space.
4. Extension deck
The platform can extend 900 mm on one side, enlarging the whole aerial working space.
5. Solid non-marking tire
The small solid non-marking tires make the machine work flexibly without any damage to the ground.
6. Swing-out tray
The trays in both sides of the chassis are designed to be swung out, making the maintenance, inspection, replacement of hydraulic oil tank and other components more convenient.
7. Control box & On-board diagnostic system
The control box is flexible to mount and dismount, with this control box design, operating on the platform and on the ground are available.
8. Electric motor
The Electric motor,supporting the 2 front wheels to drive to and fro, making the steering more flexible.
9. Automatic pothole protection system
This design ensures the life safety of the operator which working on the tilt or uneven ground in intelligent protection
condition.
10. Proportional controls
The proportional controls feature driving shifting between high speed and low speed, reducing the wire harness and energy losses.
