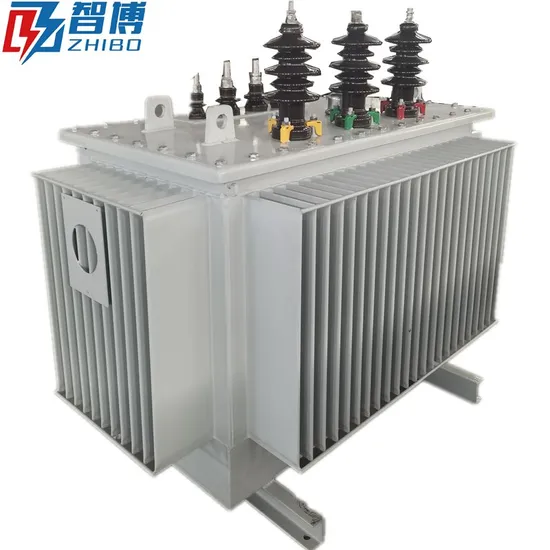

20kv 22kv 24kv 400kVA Oil Cooled Transformer Distribution Power Transformer

Product Description

Quick details:

Brand Name:	ZHIBO
Model Number:	S11-10KV series
Certification:	ISO9001
Place of Origin:	China

Custom attributes:

Product Name:	S11 series	Installation:	Indoor/Outdoor
Rated Capacity:	30~31500KVA	Voltage:	6kv-35kv
Number of Phases:	Single or Three Phases	Frequency:	50Hz/60Hz
Cooling:	ONAN/ONAF	Coil:	Copper/Aluminum Coil
Insulation level:	Class H/F	Core:	Cold Rolled Grain Oriented Silicon Steel Sheet

Product commerce clause:

Minimum Order Quantity:	1Unit
Price:	negotiation
Payment Terms:	T/T ;L/C;USD
Supply Ability:	500 units per month
Delivery Time:	20 working days after received your payment
Packaging Details:	plywooden box or nude, suitable to be delivered

Product Description: Voltage Available: 10kV, 11kV, 20kV,22kV,33kV,35kV...
The heat dissipation of transformer coil in new type series transformer S9 & S11 uses new oil duct structure with reasonable design, optimizes the insulation technology and improves the mechanical strength and snti short circuit ability. The core is made of high quality cold rolled sillcon steel, with five step lamination process, the surface coating curing paint to reduce the loss and noise. The apprearance is beautiful, easy and reliable operation.
Technical parameter:

GENERAL TRANSFORMER SPECIFICATION
GENERAL SPECIFICATION
TRANSFORMER TYPE			Oil immersed, Hermetically sealed
INSTALLATION			Outdoor
APPLICABLE STANDARDS			IEC 60076-1
RATED POWER	(ONAN)	kVA	50
HIGH VOLTAGE		kV	15
HIGH VOLTAGE TAPPINGS (NO LOAD)	%	kV	±2x2.5 or ±5%
LOW VOLTAGE ( NO LOAD)		kV	0.4
HIGH VOLTAGE INSULATION LEVEL	(Um/UAC/ULI)	kV	24/50/125
LOW VOLTAGE INSULATION LEVEL	(Um/UAC/ULI)	kV	1 , 1 / 3 / --
FREQUENCY		HZ	50
VECTOR GROUP			Dyn11
NUMBER OF PHASES			3
MAX. AMBIENT TEMPERATURE		C	40
MAX. TEMPERATURE RISE ( WINDING / OIL)		C	65 / 60
MAX. ALTITUDE ABOVE SEA LEVELL		m	1000
PERMISABLE SHORT CIRCUIT DURATION		s	2
GUARANTEED VALUES
IMPEDENCE VOLTAGE (75C)	±10% tolerance	%	5.5
NO LOAD LOSSES	1.5 -5% tolerance	W	130
LOAD LOSSES (75C)	3.5-8% tolerance	W	910/870
STRUCTURAL SPECIFICATIONS
HIGH VOLTAGE WINDING CONDUCTOR MATERIALS			Cu
LOW VOLTAGE WINDING CONDUCTOR MATERIALS			Cu
OIL TYPE			Inhibited Mineral Transformer Oil
TANK MATERIALS			Galvanized Steel Metal
DIMENSION and WEIGHT
LENGTH /WIDTH / HEIGHT		mm	L / W / H
TOTAL WEIGHT		kg
WEIGHT OF ACTIVE PART		kg
WEIGHT OF OIL		kg
CONNECTION TERMINALS
HIGH VOLTAGE		Proclean Bushings 30 Nf 250A x 3
LOW VOLTAGE		Proclean Bushings 1kV / A x 4
ACCESSORIES
HERMITICAL PROTECTION RELAY
PRESSURE RELIEF DEVICE
OFF-CIRCUIT TAP CHANGER
LIFTING LUGS
OIL FILLING & DRAIN VALVES

PS: the weight and dimension just for reference, please in kind prevail.
Winding&active part:
Package:
Logistics Delivery:Company Profile:
Our products are mainly including S9, S11, S13, SH15, SH16 series energy-saving oil-immersed transformers with 35kV and below voltages, which capacity are under 63000kVA; ZBW, YBW, YBM series combined substation; SC (B) 9, SC (B) 10, SC (B) 11 resin insulated low-loss dry-type transformers and SG (B) 10 series (H class) American DuPont NOMEX insulation transformers; ZS, ZSF series rectifier transformers, HSJ, HSSP series electric furnace transformers and so on.
