Laboratory Scale Digital Laboratory Basket Bead Mill
| US$10,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Lab-SMB
Type
Internal Grinding Machine
Processing Object
Paintings, Coatings, Dyes, Pigments
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001, ATEX
Condition
New
Motor Power (Grinding)
22kw
Motor Power (Stirring)
7.5kw
Batch Capacity
300 - 1500L
Lift
1300 mm
Weight
2800 Kg
Transport Package
Wooden Case
Specification
To order
Trademark
Hoosun
Origin
Shanghai, China
HS Code
8479820090
Production Capacity
300 - 1500L
Product Description

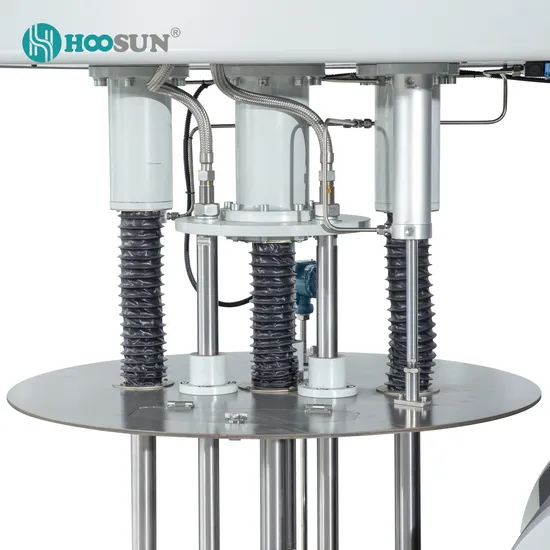

Key Features:Unique Dispersion System: Our basket mill features a unique dispersion grinding system with separate dispersion drives in the grinding chamber, offering increased product preparation efficiency. Intelligent Operation: Equipped with an intelligent lifting and lowering system, it allows for easy automation and intelligent production processes. Versatile Application: Capable of handling a wide range of product viscosities and can be applied to various drum sizes, making it highly adaptable. Leak-Free Design: No risk of mechanical leakage, with no pumps or pipework required. Technical Specifications:
Fineness: 50 - 150nm Zirconia Bead Diameter: 0.03 - 0.6mm Optional Materials: Tungsten carbide, Polyurethane, Zirconia, Silicon carbide, Silicon nitride Application Areas:
Paintings Coatings Dyes Pigments Nano new materials MLCC (Multilayer Ceramic Capacitors) Lithium batteries Silicon carbon cathode electrodes Alumina Ceramic ink Additional Benefits:
On-site Installation: We offer installation on-site and lifetime maintenance to ensure your equipment operates at peak efficiency. Warranty: 1-year warranty for peace of mind. Electric Drive: The mill operates with an electric drive, ensuring efficient and reliable performance. Fine Grinding: Designed as a fine grinding machine, it offers superior precision and quality in grinding applications. Our Hoosun basket mill is the perfect solution for industries requiring high-precision and efficient grinding of paints, coatings, and pigments. Its advanced technology and robust construction ensure superior performance and durability, making it the top choice for professional applications.
Technical Parameter
| Model | Lift (mm) | Weight (kg) | Motor Power (grinding) | Motor Power (stirring) | Batch Capacity |
| Lab-SMB | / | 300 | 2.2KW | 0.75kw | 6-10L |
| SMB 200 | 800 | 1100 | 7.5KW | 1.5kw | 50 - 200L |
| SMB 400 | 900 | 2200 | 15KW | 4kw | 200 - 400L |
| SMB 500 | 1300 | 2800 | 22KW | 7.5kw | 300 - 1500L |
| SMB 3000 | 1500 | 3200 | 37KW | 15kw | 1500-3000L |
| SMB 6000 | 1800 | 5200 | 55KW | 37kw | 2000 - 6000L |
