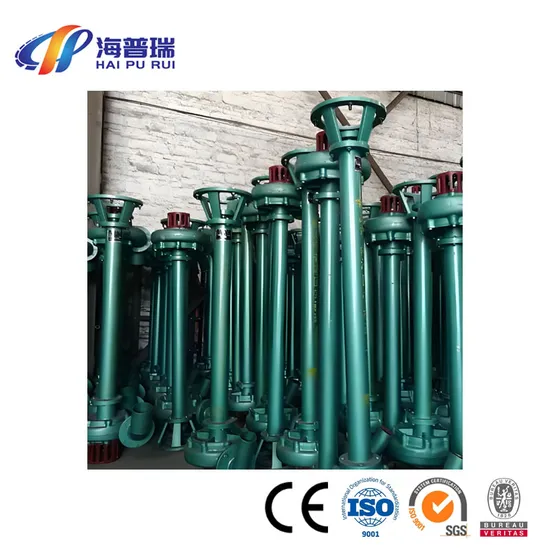

Reliable Vertical Single Suction Stage Slurry Pump a High Concentration of Slurry

Product Description

Shenyang Haipurui Vacuum Technology Co.,ltd.
=======================================
Slurry pump
ZJ series slurry pump is a high efficiency and energy saving, single stage, single suction, centrifugal slurry pump developed by our company. According to the structure type, it is divided into horizontal (ZJ type) and vertical (ZJL type), and the horizontal pump is divided into 300mm, 250mm, 200mm, 150mm, 100mm, 80mm, 65mm, 50mm, 40mm and other specifications according to the outlet diameter. The vertical pump is divided into 150mm, 100mm, 80mm, 65mm, 50mm and other specifications according to the outlet diameter.
This series of slurry pump has innovation in hydraulic design and structural design, and the flow parts are made of high chromium wear-resistant alloy cast iron with strong abrasion resistance developed by ourselves. It has the characteristics of high efficiency, energy saving, long service life, light weight, reasonable structure, reliable operation, low vibration, low noise, easy maintenance and so on. It is suitable for conveying abrasive or corrosive slurry containing solid particles in electric power, metallurgy, coal, building materials and other industries. The maximum weight concentration of the solid-liquid mixture is 45% for mortar and 60% for pulp. It can be run in series according to user needs. The series of slurry pump has passed the ministerial new product identification and provincial energy saving certification, the conclusion is that: the pump performance ranks the leading level in China, and the efficiency index of most pumps reaches the international advanced level.
ZJ series slurry pump has been listed as the original Ministry of Energy power science and technology achievements promotion project, the Ministry of metallurgy, the Ministry of Coal recommended selection products, by the Ministry of Power planning and design General Institute and equipment complete set Bureau listed 50-300MW thermal power unit main auxiliary machine selection products. In 1991, through the provincial "double mining" certification, the State Bureau of Technical Supervision approved the use of "international standard products" logo. ZJ series slurry pump has been rated as high quality products in Hebei Province, energy-saving products of the Ministry of Machinery, the 16th batch and 17th batch of energy-saving mechanical and electrical products promotion projects, national key new products. In 1998, it passed IS09001 quality system certification.

ZJ series slurry pump model significance example

200ZJ-I-A70
200: pump outlet diameter(mm)
ZJ: slurry pump
I(II) "I" is a first stage pump or a single stage pump
"II" is two stage pump
A:Number of impeller blades

code	A	B	C	D	E	F	G	...
Number of blades	5	4	3	2	1	6	7

70: impeller diameter

ZJL type slurry pump structure characteristics

ZJL type slurry pump structure drawing
volute 2. impeller 3.Rear protection plate 4. sealing ring 5. Oil sealing 6.bearing 7. oil ring

model	Speed n	Flow Q	Head H	Shaft power Pa	eff n	motor
	r/min	m³/h	m	kW	%
150ZJL-A35	980	198 332 364	17.9 132 12.1	15.3 17.5 18.0	63.1 68.1 66.8	Y250M-6 V1 380V 37kW
	730	147 247 271	10.0 7.3 6.7	6.3 7.2 7.4	63.1 68.1 66.8	Y200L-8 V1 380V 15kW
	590	119 200 219	6.5 4.8 4.4	3.3 3.8 3.9	63.1 68.1 66.8	Y160L-6 B3 380V 11kW
100ZJL-A34	1480	157 214 293	36.8 32.6 24.4	26.1 29.2 33.5	60.2 65.1 58.2	Y225M-4 V1 380V 45kW
	970	103 140 192	15.8 14.0 10.5	7.4 8.2 9.4	60.2 65.1 58.2	U180L-6 V1 380V 15kW
80ZJL-A36	1480	105 144 201	45.5 41.4 32.5	25.0 27.9 32.8	52.1 58.2 54.2	Y225M-4 V1 380V 15kW
	970	69 94 132	19.5 17.8 14.0	7.0 7.8 9.3	52.1 58.2 54.2	Y180L-6 V1 38CV 15kW
65ZJL-A30	1470	38 58 98	34.7 31.9 26.0	8.2 9.7 13.4	43.7 51.9 51.7	Y180M-4 V1 380V 18.5kW
	960	25 38 64	14.8 13.6 11.1	2.3 2.7 3.7	43.7 51.9 51.7	Y132M2-6 B5 380V 5.5kW
50ZJL-A20	1440	17 25 38	10.7 9.2 5.9	1.4 1.6 2.0	34.9 38.6 31.2	Y112M-4 B5 380V 4kW
	910	11 16 24	4.3 3.7 2.4	0.4 0.4 0.5	34.9 38.6 31.2	Y90L-6 B5 380V 1.1kW
40ZJL-B25	1440	10.1 18.4 22.9	21.5 19.0 16.8	2.3 2.6 2.8	26.1 36.6 37.6	Y132S-4V1380V 5.5kW
	910	6.4 11.6 14.5	8.6 7.6 6.7	0.6 0.7 0.7	26.1 36.6 37.6	Y90L-6V1 380V 1.1kW
40ZJL-A21	1440	9.5 20.3 25.9	17.0 15.3 14.1	1.6 2.0 2.2	27.9 42.4 44.6	Y112M-4V1 380V 4.0kW
	910	6.0 12.8 16.4	6.8 6.1 5.6	0.4 0.5 0.6	27.9 42.4 44.6	Y90L-6V1 380V 1.1kW

Note: 1. Except 150ZJL-35n=590r/min for belt drive, the rest are direct transmission.
2.V1,B3,B5 are the installation structure of the motor
ZJL slurry pump installation drawing and installation size table

Model	Motor	Transmission mode	A	B	C	D	E	F	G	H	H	n-φ1	81	Outlet flange						Weight (with motor) (kg)
150ZJL-35	250M-637kW V1 Y200L-815kW V1 Y160L-611Kw B3	DC DC ZV	3093 2908 2674	1049	360	350	895 740 702	221	610	1150	1080	4-φ25	25	p150	φ200	φ225	φ260	8-φ18	22	1300 1190 1046
100ZJL-34	225M-445kW V1 Y180L-615KwVI	DC DC	2930 2765	1031	310		795 660	214	573	1180	1110			p100	φ145	φ170	φ205	4-Φ18	18	1183 1036
80ZJL-36	225M-445kW V Y180L-615KwV1	DC DC	2887 2722	1028	270		795 660	212	543	1120	1050			Φ80	φ125	φ150	φ185			993 846
CZJJL-30	YI80M-418.5kW VI Y1322-65.5Kw B5	DC DC	2673 2458				620 435	212	416	712	672	4-φ22		Φ65	φ115	φ130	φ160	4-Φ14		703 614
50ZJL-20	Y125M-44kW B5 Y90L-61.1Kw B5	DC DC	194 1881	814	195		340 290	141	321	600	540	4-φ25		φ50	φ90	φ110	φ140		16	293 275

Material chose 1)The overcurrent component is made of nickel phosphorus alloy Coating or PTFE coating, compartment sealing For PTFE seals and labyrinth seals,
The composite structure design of our product is meticulously crafted to meet the stringent requirements of the chemical engineering and manufacturing sectors. Its versatility extends to the pharmaceutical industry and others that contend with corrosive environments, where it thrives seamlessly amidst these artistic settings.
2) Crafted with precision, the overcurrent component is constructed from premium stainless steel (S304/S316L), making it an impeccable choice for highly corrosive environments. The entire assembly, including the robust pump casing, partition, and rotor, is formed from high-grade stainless steel, ensuring durability and reliability.
We offer flexibility in material selection to meet your specific needs. Should you require different materials, please do not hesitate to reach out via email, and we will accommodate your request.
Discover more visuals that showcase our product's exceptional design and features. Company Profile
Shenyang Haipurui Vacuum Technology Co., Ltd. is a leading innovator in the vacuum industry, dedicated to pioneering advancements and delivering excellence. As a distinguished high-tech enterprise, Shenyang Haipurui specializes as a special new enterprise, passionately dedicated to the research, development, design, manufacturing, sales, and servicing of vacuum pumps and complete vacuum systems. Nestled on a sprawling 20-acre estate, boasting a 7,000 square meter state-of-the-art plant, we pride ourselves on an experienced team steeped in industry expertise. Our collaboration with cutting-edge vacuum technology and a keen understanding of user needs enables us to continuously evolve our product designs, offering the pinnacle of vacuum solutions across diverse industries. Our commitment to excellence is underscored by our ISO9001 quality management system certification, alongside our numerous patents and software copyrights. We are driven by innovation, ensuring that our products and services reach new heights with each breakthrough.
The company's outstanding product lineup primarily encompasses two prominent categories:
1. Vacuum Obtaining Equipment: We proudly offer a comprehensive range of solutions including the vacuum pump, 2BV, 2BE, SK, 2SK series liquid ring vacuum pumps and compressors; SY, 2SY series liquid ring compressors; ZJ series Roots vacuum pumps; LGB series screw vacuum pumps; and the XD, 2XZ, 2X series rotary vane vacuum pumps, as well as WLW reciprocating vacuum pumps, all engineered for optimal performance. Application site
Exhibition
FAQ
1.Are you a factory or trading company?We are a factory and we have professional team of workers,Designers and inspectors.2.Do you accept custom?Of course.We have professional teams who make your designs,photos,imagines and OEM orders into real production.3.What's your shipping terms?If you need to ship by air,we can use DHL,UPS,FedEx,TNT or EMS.If you need to ship by sea,we have many good forwarders to work with,they can provide the best price for you.
4.Whats your payment terms?
Until now , we can accept TT.LC.
5.What information do you need to offer a quotation?
Pump Capacity: m³/h or L/S
Voltage: V
Frequency: Hz
Any questions,pls feel free back to us.
