Book Paper Spiral Wire Binding Machine Automatic Paper Hole Punching Double Loop Wire O Notebook Book Binding Machine

Product Description

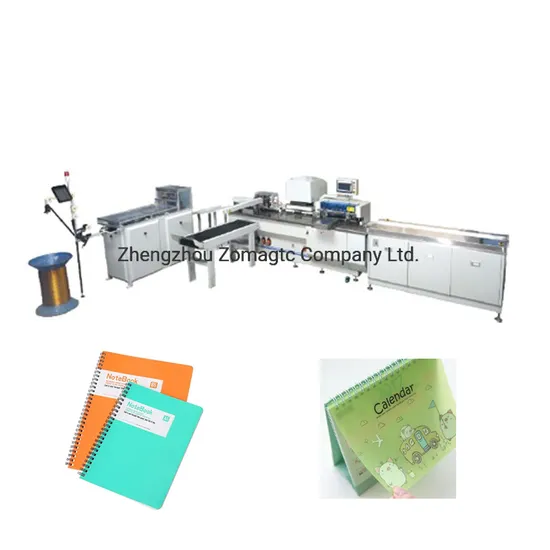

Automatic Double Loop Wire O Binding Machine and Paper Hole Punching Machine Calandar Notebook Making Machine price
Product Parameters
Specification of Automatic Double Loop Wire O Binding Machine and Paper Hole Punching Machine Calandar Notebook Making Machine price

Model NO.	ST-PB580S	ST-PB580
Functions	paper feeding,hole punching,double loop forming,binding	paper feeding,hole punching,binding
Application	mass-production,high efficiency	Mid-production, easy to change size
Ring size	1/4-3/4	1/4-3/4
Max. Binding size	With feeding: 580*360mm Without feeding: 580*800mm	580mm*800mm
Work Speed	Up to 1500 nooks/h	Up to 1100 nooks/h
Electric power source	3PH 380V 50/60Hz(other voltage on request)	3PH 380V 50/60Hz(other voltage on request)
Compressed air	5-8kgf	5-8kgf
Power	3phrase,380V	3phrase,380V
Dimension	6*1.3*1.6m	4*1.3*1.6m
Weight	1150kg	1000kg

Description of Automatic Double Loop Wire O Binding Machine and Paper Hole Punching Machine Calandar Notebook Making Machine price
Product Description
1.This machine could be used for mass-production of desk calendars, wall calendars, exercise-books,wire-o books etc.

2.It includes paper separation, punching, binding and collection all in one machine.
With the option of collator, calendar hanger inserting device, hard-cover manual punch, it can improve more production efficiency for customers.
Related Products
Automatic single coil book binder punching machine wire coil hole spiral binding machine wire binding student notebook making machine

Product Parameter
Model	ST-S420 Automatic single coil book binder punching machine wire coil hole spiral binding machine wire binding student notebook making machine
Max binding format	420mm
Min binding format	70mm
Max binding wire diameter	25mm
Min binding wire diameter	8mm
Binding hole spacing optional range	5, 6, 6.35, 8, 8.47mm
Circle diameter range of G-type back hook scissor	14-25mm(customized if less than 14mm)
Circle diameter range of ordinary scissor	8-25mm
Voltage	3PH 380V
Dimension	6000*1300*1700mm
Weight	1800kg

Binding thickness (mm)	Inner diameter (mm)	Wire diamater (mm)	Recommend hole diametr(mm)
6	8	0.7-0.8	3
10	10	0.8-0.9	3
12	12	0.9-1.0	4
14	14	1.0-1.1	4
16	16	1.0-1.1	4
18	18	1.1-1.2	4
20	20	1.1-1.2	4
22	22	1.1-1.2	5
25	25	1.1-1.2	5

Packaging and shipping

Packaging Detail:	Strong wooden case for Automatic book binder punching machine wire coil hole binding machine double wire binding student notebook making machine
Delivery Detail:	15 days after confirming the order

Trading Terms

Terms of payment	T/T, L/C, Westion Union.
Terms of trade	FOB, CFR, CIF
Mode of transportation	By Sea, By Air,By courier
Port of shipment	China main ports
Rerfence date of delivery	About 15 days
