Color Coated Steel for Whiteboard

Product Description

Product Description
Specifications:

Product Name	PPGI
Color	RAL color, such as white, green, black
Standard	AISI, ASTM, BS, DIN, GB, JIS
Base Metal	Cold rolled steel (CR) Hot dip galvanized steel (SGCC) Electro-galvanized steel (SECC) Stainless steel, aluminum plate
Thickness of base metal	0.3-1.2mm
Width	≤1350mm , as per customer request
Paint Thickness	Top side :15-20 μm back side :5-8 μm
Surface Protection	PE protective film
Certificate	ISO9001, ISO14001, ROHS
Properties	(1) good formability and workability (2) various color choice, well decorative (3) excellent rust & corrosion resistance, salt spray resistance, high temperature resistance , chemical resistance (4) eco-friendly , meet with ROHS standard
Coil ID	505 mm
MOQ	10 MT or depends
Supply Ability	1200 tons per month
Payment Term	T/T or L/C
Application	1. Home Appliance :Refrigerator,freezer,washing machine,water heater,air conditioner,water dispenser,wine cabinet,microwave oven,toaster oven,rice cooker,range hood,computer casing,DVD player,TV back plate,set top box, kitchen appliance 2. Writing Board :White board,black board,green board,chalk board 3. Indoor Decoration :Security / fire-proof door,kitchen cabinet,wall panel,ceiling panel,lighting,curtain rod,dustbin,table,wardrobe,washroom accessories,hotel decoration,elevator cabin 4.Transportation :Ship/yacht interior decoration ,refrigerated truck 5. Medical device, cold room, and so on.

Specification of Physical&Chemical test:

Test item	Method	Standard	Result
Film thickness	Electromagnetic thickness tester	Top 22±2μm	Average more than 20μm
		Back 5±2μm	Average more than20μm
Gloss(Top)	60 degree reflection	Standard 85 degree	85±5 degree
Color difference	Minota delta color machine	Difference with standard sample	Difference ≤1
Adhesion test	100/100	95/100	95/100
Pencil hardness	JIS K5400	≥3H	No scratch
Mek test	Rubbed with MEK on surface	No see the material	80 times
Chemical	JIS K5400	5% H2SO4 24 Hr 5% HaoH 24 Hr	No change on the surface
Anti pollution	Red, blue, black ink	Easy clean	Easy clean

Packing
Company Profile ANHUI WONDERFUL-WALL SCIENCE TECHNOLOGY CO.,LTD
Anhui Wonderful-wall Science Technology Corp.Itd.(Hereinafter referred to as"Wonderful-wall corp.")is a subsidiary Jinggong Holding Group.Established in 1996,with 2 production basement located in Lu'an,Anhui and Shaoxing,Zhejiang,covering area of 270,000 square meter.We specializes in the research and development,manufacturing,selling kinds of prepainted aluminium coil(PPAL),prepainted steel coil(PCM),solid aluminium sheet,ACP,decorative energy-saving composite panels, and film laminate metal(VCM).It is the largest and most comprehensive technology enterprise,a color coating aluminium industrial manufacturer along with the largest production scale,the most complete specifications and the first-class equipment in domestic and Asia.8 domestic and oversea advanced color coating matching with 10 slitting, cutting production line,2 solid aluminium sheet production line,1 3-colors printing production line,1 embossed production line and 2 decorative energy saving composite panel.With annual production capacity of 100,000MT PPAL, 120,000MT PCM,2 million square meters solid aluminum sheet,1.5 million square meter ACP,1 million square meter decorative energy-saving panel.

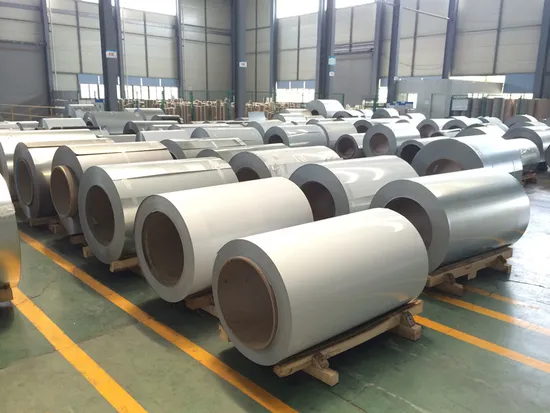

Work Shop:
Exhibition Room:
Test:


Certifications:
>>>>> For the detailed parameters, please contact with our business representative, tks!
Contact: Jason


Website: alucosuper.en.made-in-china.com
NOTE:
The born of pre-painted metal sheet is a qualitative leap in the traditional painting process. It is widely
used because of its high-quality, like eco-friendly, low cost, high efficiency and fast switching color.
Using pre-painted metal sheet will effectively improve your marketing competition.
