3 Phases Industrial Online UPS System with Isolation Transformer UPS

Product Description

Product Description

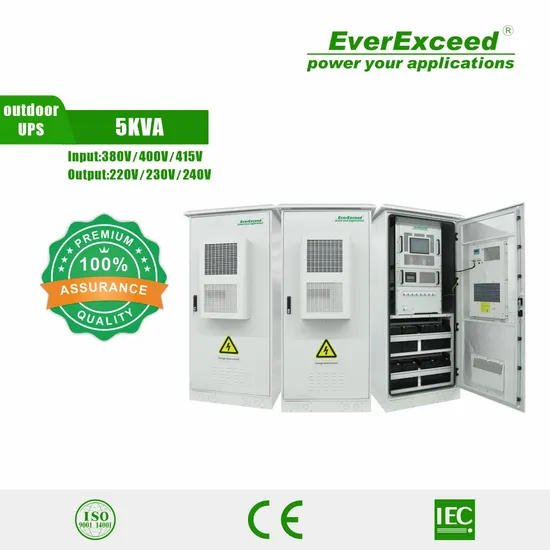

UPS 3 Phases Industrial online UPS System With Isolation Transformer ups
PowerOutdoor series UPS is specially designed for outdoor communication & networking equipment, traffic control system and other applications of city corner, countryside, or mountainous area. High temperature resistance, frost resistance, corrosion resistant, dust prevention, and water resistance are based. With advanced functions like wide range of input voltage and frequency, high reliability, energy saving, environmental protection, anti-thunder, remote control, remote detection, our UPS can guarantee stable power supplying to communication, networking, traffic control and other device. It is a type of ideal helpmate for running these important outdoor devices.
Product Parameters
Technical Data:

MODEL	PR-1K	PR-2K	PR-3K	PR-6K	PR-10K
Capacity	1KVA/0.7KW	2KVA/1.4KW	3KVA/2.1KW	6KVA/4.2KW	10KVA/7KW
INPUT
Voltage Range	115~295VAC			176~297VAC
Frequency Range	50HZ(46~54Hz)/60HZ (56-64HZ)
Soft Start	0~100%, 5sec
Power Factor	0.98
OUTPUT
Voltage	220/230/240VAC (Customizable: 110/120/127VAC)
Voltage Precision	±2%
Frequency Precision	50/60Hz±0.05Hz
Power Factor	0.7/0.8(Optional),standard 0.7
Wave Distortion	Linear load<3% ;Non-linear load<6%
Overload Capability	110%~150%,for 30 seconds later, transfer to bypass
	>150%, for 200ms later, transfer to bypass;
	When load is normal, it can automatically transfer to normal mode.
Crest Factor	3:1
Transfer Time	0ms (line to inverter)
BATTERY
DC Voltage	36VDC	96VDC	96VDC	240VDC	240VDC
Charge Current	4A/8A (optional)	4A/8A (optional)	4A/8A (optional)	4.2A	4.2A
Battery Capacity	Optional (Battery type and capacity choose by customer)
SYSTEM
Display	LCD+LED
Interface	RS232, SNMP card (optional), Dry contact (optional)
IP class	IP55
Noise	50dB(1m away)
Temperature	-25ºC~55ºC(operation,heater optional)
Humidity	0~95% (Non-condensing)
Altitude	1500m
Weight (KG)	85	125	125	125	155
Dimension (W*D*H) (mm)	613*640*954	650*753*1227		940*940*1770

Applications:
Specially designed for outdoor communication& networking equipment, traffic control system and other applications of city corner, countryside, or mountainous area.
Recent projects:
FAQ Q 1. What's the payment terms and payment method ?
A. We accept L/C, T/T, Credit Card, Western Union, Money Gram, etc.Usually 30% deposit, 70% before shipment.
Q 2. How's the delivery time ?
A. It usually takes about 3-10 days after payment arrived.
Q 3. How about package ?
A. For the small UPS and the inverters less than 30kg will be packed in foams and cartons. For the big UPS and inverters heavier than 30kg will be packed in pallets or wood boxes .Q 4. Would you accept to print our logo and design ?
A. Yes, we can print your logo on the inverters, UPS and cartons. Also welcomed your own design of these inverters and UPS.
Q 5. What kind of certificates you have ?
A. For company have ISO9001, ISO14001, TUV and SGS factory certification.For UPS and power inverters, we have CE,IEC, KC and ETL, etc.Q6. When the product have problem, how to solve it ?
A. We have a professional after-sales team, in case of any problems, first contact us to help you solve, we have a 24 months warranty and lifetime technical support. We will track product usage until you are satisfied.
