Ws-6933 DVB-S/S2 H264 Digital Satellite Finder with Home Made

Product Description

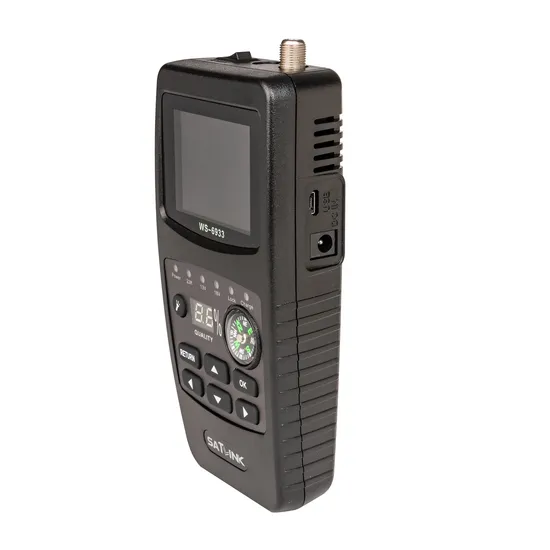

WS-6933 is a fully DVB-S/S2 compliant handheld satellite finder.With it's compact size,light weight,intuitive user's interface,long battery operational hours and rich feature ser,the finder provides all functions needed for installation and verification of digital TV service to residential homes or multi-dwelling units.

Open the package and make sure it includes all below items, if any missing, please contact the reseller for replacement.
4. Adaptor 5. AV Cable
Digital Satellite Meter
User's manual
Sillicon Rubber Case
• Digital meter for signal strength and quality • Sound and Light Alarm for Locking Signal
• Auto Calculate Angle of AZ ,EL
• Supports DISEQC 1.0/1.1 ,0/22khz Tone
• Beep Integrated
• LNB short protect
• Support mechanical compass
• 7.4V/800mAh Li-Ion Battery Included • Software upgrade via USB port
• Easy to carry

TECHNICAL SPECIFICATION

TRANSMISSION STANDARDS
DVB-S/S2
SATELLITE INPUT/DEMODULATION
Connector Type	F Type
Input Frequency	950 to 2150 MHz
Signal Input Level	-65 to -25 dBm
Band Switch Control	22KHz
LNB Supply	13V/18V, IMax300mA
Demodulation Type	QPSK /8PSK /16APSK
Symbol Rate	2<Rs<45Mband(SCPC/MCPC)
LCD FEATURES
LCD Type	TFT Positive transflective
Number of Dots	240(RGB)*320
Active area (WxH)	36.72(W) * 48.96(H)MM2
DATA SERVICE PORT
Connector	USB
Data protocol	USB to RS-232
POWER SUPPLY
Li-Ion Battery	7.4V/800mAh
Adapter	OUTPUT: DC12V/1A INPUT: 100-240VAC 50/60Hz
Power consumption	Max. 5W
PHYSICAL CHARACERSTICS
Size (W x D x H)	8x16x4(cm3)
Net Weight	0.25kg
