Copra/Coconut/ Desiccated Coconut Milk Powder Rotary Dryer/Vacuum Drying/Processing/Making Machine

Product Description

Coconut Belt dryer/Spray /Vacuum /Fluid bed /Fluidizing/Spin Flash/Disc/Plate/Paddle/Rotary drum /Disc /Freezing Vacuum/Drying Machine for Vegetable/Fruit/Flavouring/Comdiment
Product Description

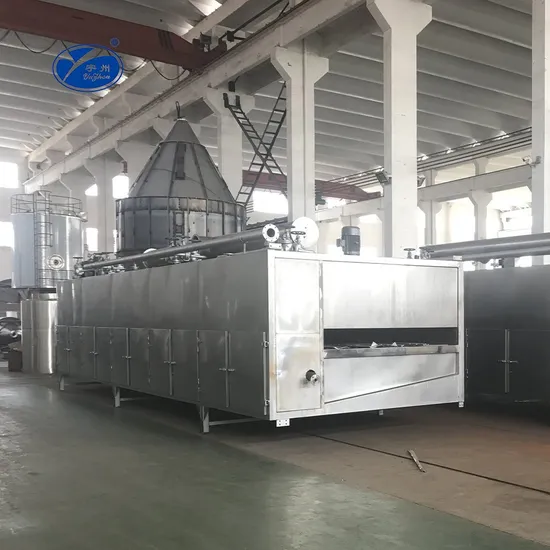

This Belt Dryer has single layer,three-layer and five-layer structure, each layer can be independently adjusted the drying temperature according to the characteristics of the materials.
The working principle of this multilayer conveyor dryer shows as follows: the material is limit controlled by the hopper and is evenly spread on the mesh belt. The materials are driven by the motor to the top layer, then perform uniform motion in the multilayer belt dryer and conduct downward movement layer by layer. Cold air enters from the two axial flow fans, after ballasting via baffle plate, it will flows from bottom to top. There is equipped with a heater under the mesh belt at each layer. The cold air is constantly gradient heated, and then through the material layer. It will conduct mass transfer and heat transfer with the material layer, so that the moisture contained in the material can be rapidly vaporized and evaporated. When the cold air gets to the top layer, it has become saturated moist air, and will be discharged outdoors under the action of exhaust fan.

Material Movement and Process Diagram
This conveyor belt dryer adopts five-layer structure. Materials in the hopper are lifted to the top layer by conveyor belt, and then enter into the drying machine. The materials with the upper belt move to the other end of the multilayer belt dryer, and then slide along the hoop plate down to the next layer. And then the materials along with this layer pass through the conveyor dryer to the other end, and fall to the lowest layer, and so on. The materials along with the lowest belt move to the other end of the drying machine to discharge.
Features of Multilayer Belt Dryer
1. The hot gas flow passes through the mesh belt and the material layer from bottom to top, thus ensuring uniform heat transfer. This drying machine has high production efficiency and good quality.
2. This multilayer conveyor dryer adopts hoisting equipment with uniform feeder, and the thickness of the material layer can be infinitely variable control. Processing

Parameters

Model	DWC-20	DWC-25	DWC-32	DWC-36	DWC-48	DWC-60	DWC-80
Spreading Area (m2)	20	25	32	36	48	60	80
Steam Pressure (Mpa)	0.4 to 0.7
Steam Consumption (Kg/h)	150 to 300	180 to 375	240 to 480	270 to 540	360 to 720	450 to 900	600 to 1200
Drying Cycle (min)	20 to 200	60 to 600	100 to 1000
Evaporation Power (Kg/h)	100 to 200	125 to 250	160 to 320	180 to 360	300 to 480	300 to 600	400 to 800
Installed Power (kw)	5.5	5.5	5.5	5.5	14.2	15.2	15.2
Total Weight (Ton.)	8	8	8.5	10	11	13	15
Outline Dimensions (m)	8.9 × 2.4 × 3.4	9.9 × 2.4 × 3.4	11.5 × 2.4 × 3.4	12.5 × 2.4 × 3.4	13.5 × 2.4 × 3.4	14.5 × 2.4 × 3.4	15.5 × 2.4 × 3.4

Company Profile
Jiangsu Yutong Drying Engineering Company is a High-New Technology Enterprise in China. With over 14 years of experience, we are able to provide a wide variety of products, including drying machine, grinding machine, granulator, mixing machine, and more. Features like compact structure, high efficiency, and low energy consumption have resulted in our products being increasingly used in the pharmaceutical, chemical, food, light industry, dyes, mineral products, electronics, ceramics, plastics, agricultural products, pesticides, feed, fertilizers, and other industries. At Yutong, our cooperative relationships with many research institutes and universities enable us to constantly improve product performance and develop new drying machines, mixers and feed machines. As a result of our focus on innovation, we have received many national patents.
Exhibition
Certifications
After sales
1.one year warranty
The company implements a one-year warranty and alifetime service system for the products.
2.About the equipment
lf the device fails or encounters difficult problems duringuse,You can first solve it by reading the "Common Troubleshooting Method" in the product description.
3.About the service
lf the equipment encounters a malfunction and cannot beresolved by itself, please contact us and the company willRespond within 2 hours after receiving the failure notification.
4.About delivery
All equipment sold by our company is free of shipping.
