CE Approved 10ton 12ton Portable Mobile Container Ramp for Forklift Hydraulic Loading Dock Leveler Platform

CE Approved 10ton 12ton Portable Mobile Container Ramp for Forklift Hydraulic Loading Dock Leveler Platform

US$1,700.00-3,300.00 1 Piece (MOQ)

Basic Info.

Model NO.
10tons 8tons 12tons 15tons
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
CE
Use
Construction Hoist
Power Source
Manual
Material
Steel
Condition
New
Load
6tons 8tons 10tons 12tons 15tons
Specification
11300*2100*1100
Trademark
Haolong
Origin
Jiyang District, Jinan City, Shandong Province
HS Code
8428909090
Production Capacity
5000pieces/Year

Product Description

Product Description

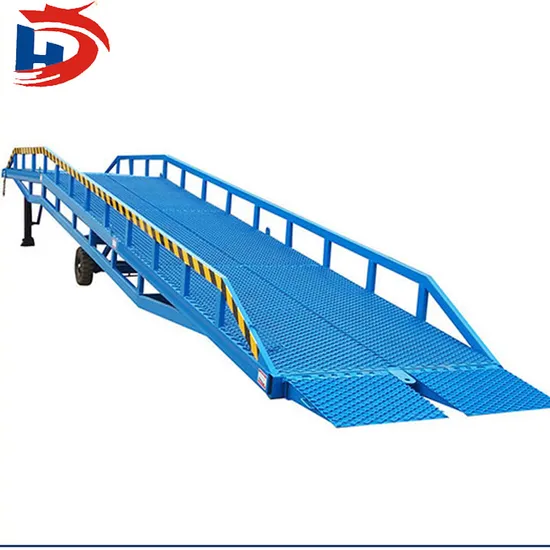

A mobile boarding bridge, also known as a mobile loading dock, is a device that creates a temporary passage between the truck and the ground. It is made of high-strength materials and has a robust structure that can withstand the pressure of heavy loads. The design of the mobile boarding bridge allows goods to be easily transported from the ground to the truck, or unloaded from the truck to the ground, which greatly improves the efficiency of logistics and transportation.
Maximum Lifting Capacity: Our Hot selling large tonnage mobile boarding bridge mobile hydraulic dock ramp Mobile boarding bridge has a maximum lifting load of 15 tons, making it suitable for heavy-duty applications in various industries such as building material shops, manufacturing plants, machinery repair shops, and food & beverage factories. Reliability and Durability: With a 1-year warranty on the core components, including the engine, gear, bearing, gearbox, and motor, our product ensures long-lasting performance and minimal maintenance requirements. Convenience and Safety: Our mobile boarding bridge features a hydraulic dock ramp, allowing for easy and safe loading and unloading of goods, making it an ideal solution for users who value convenience and efficiency. Compliance and Certifications: Our product meets all necessary safety and quality standards, and we provide a machinery test report to ensure compliance with regulatory requirements. User-Friendly: As a user mentioned, "I'm looking for a reliable and easy-to-use mobile boarding bridge for my food & beverage factory", our product is designed to meet such needs, with a user-friendly interface and a comprehensive instruction manual provided.

Model

DCQY-6

DCQY-8

DCQY-10

DCQY-12

DCQY-15

Overall
size

11300*2100

11300*2100

11300*2100

11300*2100

11300*2100

Slope
length

7150mm
(L)

7150mm
(L)

7150mm
(L)

7150mm
(L)

7150mm
(L)

Platform
pate
length

3000mm
(L)

3000mm(L)

3000mm
(L)

3000mm
(L)

3000mm
(L)

The tail
plate
length

750mm

750mm

750mm

750mm

750mm

The tongue
plate
length

400mm

400mm

400mm

400mm

400mm

Width

2100mm

2100mm

2100mm

2100mm

2100mm

Steel plate
thickness

3mm

3mm

3mm

3mm

3mm

Steel mesh
thickness

8mm

8mm

8mm

8mm

8mm

Load

6t

8t

10t

12t

15t

Distribution
power

Manual hydraulic pump, and hand leg

Manual hydraulic pump, and hand leg

Manual hydraulic pump, and hand leg

Manual hydraulic pump, and hand leg+ 2 auxiliary legs

Manual hydraulic pump, 2 hand legs+ 2 auxiliary legs

Adjustable
range

1100-1800mm

1100-1800mm

1100-1800mm

1100-1800mm

1100-1800mm

Guardrail
high

200mm

200mm

200mm

200mm

200mm

Main
beam

160*80*4mm rectangular pipe
4 main beams

160*80*4mm rectangular pipe
4 main beams

160*80*4mm rectangular pipe
4 main beams

200*100*5mm rectangular pipe2 pcs
200*100*4mm rectangular pipe3 pcs,
Total 5 main beams

200*100*6mm rectangular pipe,4pcs
200*100*6mm rectangular pipe,1pcs
Total 5 main beams

Vice beam

100*50*4mm

100*50*4mm

100*50*4mm

100*50*4mm

120*60*5mm

Hydraulic
cylinder

Φ80*Φ45
(2 pcs)

Φ80*Φ45
(2 pcs)

Φ80*Φ45
(2 pcs)

Φ80*Φ45
(2 pcs)

Φ80*Φ45
(2 pcs)

Hydraulic
oil pipe

32Pma

32Pma

32Pma

32Pma

32Pma

Soild trip

600-9

600-9

600-9

600-9

600-9

Container
connectivity

The bridge body is welded with a hook and fixed with a steel chain

Paint color

Generally blue(adjustable); spray-paint

Overall wight

±2200kg

±2400kg

±2600kg

±3300kg

±4000kg




FEATURES
1. Convenience: The mobile boarding bridge adopts a modular design, which is easy to install and can be quickly built without professionals. Its foldable and mobile nature allows it to be quickly deployed in different locations and adapt to a variety of complex logistics environments.
2. Safety: The mobile boarding bridge is equipped with anti-skid, anti-overturning and other safety devices to ensure the stability of the goods during transportation. Its load-bearing capacity is strong, can withstand the load needs of trucks of various specifications, and is well-known for the safety of cargo transportation.
3. High efficiency: The mobile boarding bridge can realize the rapid docking of goods and trucks, reducing the time and cost of manual handling. Its convenient operation also improves the overall efficiency of logistics operations.
APPLICATION
Recommended Products
Company Profile
Packaging & Shipping
FAQ
Q:What's the information should I provide when inquiry?
More details or drawings,better. A: life capacity B:span C:lift height D: crane traveling distance E: power source
Q: What is your minimum order quantity?
A: 1 set;
Q: What is your package?
A: The main body is packaged with plywood boxes or plastic woven fabrics; Spare parts inside the plywood box;
Q: What is your delivery cycle time?
A: Within 10/25/40 days after receiving the advance payment; The specific deadline shall be based on the detailed requirements and actual deadline;
Q: Do you provide lifting accessories?
A: Yes, we can provide any type of crane accessories, such as hooks, grab buckets, magnets, pulley blocks, hooks, locks, wire ropes, fiber ropes, etc.
Q: Do you provide custom service codes?
A: Yes, our factory supports OEM/ODM services.
