201 304 316 Stainless Steel Metro Hall Swipe Card Speedlane Turnstile NFC DC Brushless Slim Barriers

Product Description

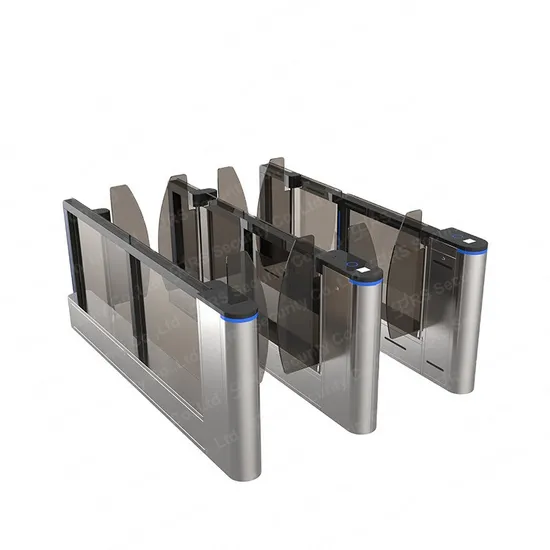

201 304 316 Stainless Steel Metro Hall Swipe Card Speedlane Turnstile NFC DC Brushless Slim BarriersProduct Description Slim Turnstile RS 716-10 also called: Glass Turnstile,Swing Turnstile,Speedgate Turnstile,Speedlane Turnstile.Glass Turnstiles RS 716-10 has standard electrical interface which can be connected with ic cards,biometric,fingerprint,barcode cards,magnetic cards,id cards etc.Speedgate consist of servo motor,swing barrier,mechanism,buzzer,batter,led lamp,sensors,electric circuit etc.Speedlane RS 716-10 outer coveringWing Turnstile the swing door provides flexible passageway access control,the control width from 300-1600mm.Glass Turnstile RS 716-10 has different program for pedestrian or bicycle,work with high sensitivity sensors to ensure safety of peple.Swing Turnstiles RS 716-10 with standard fire interface,arm can drop down for evacuation even power is not cut off when fire alarm triggered.Speedgate Turnstile widely used in Theme Parks,Amusement Park,Public Toilets,Shipping Mall,Business Hall,Driveway,sensors,electric circuit etc.
Product Parameters

Product Name	Swing Turnstile,Slim Turnstile
Moduel No.	RS 716-10
Brand	Bloccante
Size	1600*130*1000mm
Material	304 stainless steel, acrylic
Channel width	standard 600mm (≤900 can be customized)
Thickness of the cabinet	1.5mm+1.2mm
Drive motor	DC 24V brushless motor, low noise
Control panel	one for one
Traffic direction	one-way traffic/two-way traffic; traffic speed: 35-40 people/minute
Passing speed	35~40 person/minute
Opening methods	ID/IC card and other readers to verify opening, infrared induction automatic opening, button opening, etc.
Opening signal	dry contact signal
Protection functions	encoder limit, electromechanical anti-collision, infrared anti-clamping, infrared alarm for illegal intrusion
Life	≥9 million times
Infrared quantity	6 pairs
Power	30-60w
Applicable temperature	: -20~75ºC

Function1.The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;
2.In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.
3.The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.
4.Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.
5.The bicycle delay function: prevent the gate from hitting the bicycle;
6.Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.
7.The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass.
8.Various control functions: external button, remote control, bar code, IC or ID, etc.
9.Remote control function: the RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.
10.Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock to cancel the pass, time 1-60 seconds.Feature
Long-life performance, high operation dependability and fast response.
The whole system runs smoothly, low noise, no mechanical impact.
Single directional or Bi-directional is selectable.
Automatic reset function: turnstile arm will lock automatically
within 5s (can be setting) if passenger delay to entry.
When power is off, arms will drop down automatically, which is
complying with fire safety requirements.
LED indicator (red × means no entry; green →means entry). Easy to install and maintain.
3-year warranty support.Detailed Photos
Application
