Swiss CNC Lathe for Advanced Industrial Metal Cutting Applications

Product Description

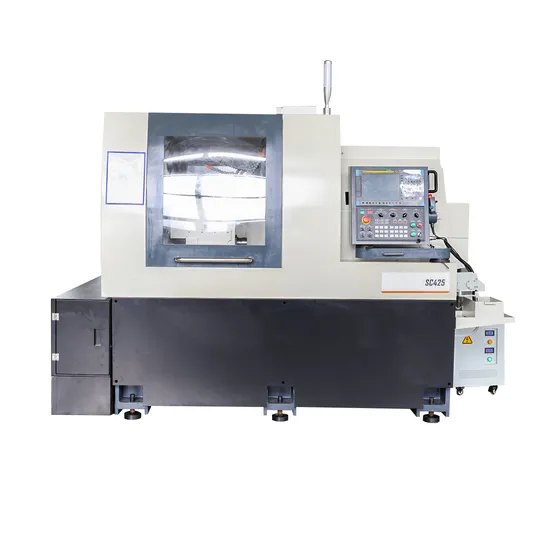

Swiss Lathe/CNC Automatic Lathe 5-axis -425
The Swiss-type lathe, often recognized as the shining pinnacle of CNC automatic lathe technology, stands as a hallmark of precision machining excellence. Celebrated for its unmatched accuracy and unwavering consistency, this machine is a beacon of cutting-edge innovation in the realm of precision engineering, redefining performance standards.
Experience the zenith of multi-functional processing with our revolutionary Swiss-type lathe. Be captivated by its prowess in expertly performing tasks such as tapping, milling, drilling, and turning, all while showcasing the extraordinary capabilities of dual spindles and an advanced double Y-axis. This dual-action marvel not only slashes processing time but also elevates efficiency, rendering it the quintessential choice for batch operations involving uniquely shaped, non-standard parts. Perfectly engineered for precision hardware and shafts, this machine is a masterpiece of meticulous design.Enter a domain of unparalleled precision with our groundbreaking Swiss-style lathe, a true marvel in CNC automatic technology. This extraordinary machine transforms your workshop, seamlessly executing an extensive array of operations such as tapping, milling, drilling, and turning with exceptional precision. Equipped with dual spindles and a state-of-the-art double Y-axis, this lathe epitomizes operational efficiency, enabling simultaneous processing that significantly reduces production time. Specifically designed for the batch production of complex, non-standard components, it excels in crafting precision hardware and intricately shaped shafts, setting new benchmarks in manufacturing excellence.
Product Description
Step into a new era of unparalleled precision engineering with the Swiss Type CNC Lathe Machine by Liaocheng Wayne New Materials Co., Ltd., designed exclusively for the discerning metal manufacturing connoisseur. This engineering marvel features a remarkable 210mm Spindle Stroke Capability, setting a new standard in the world of CNC Swiss machining. The expertly designed sliding headstock meticulously guides segments of metal stock through the guide bushing with extraordinary accuracy. Safely enclosed within the robust chuck behind the guide bushing, the remainder of the workpiece remains steadfast, protected from the tooling area. This ensures exceptional stability and absolute precision, empowering you to craft with unmatched confidence and sophistication.Marvel at the artistry of our CNC Swiss machine as it masterfully crafts each section of the workpiece to perfection. The bar stock glides with effortless precision along the z-axis, heralding the meticulous machining of subsequent sections. This segmented approach is emblematic of swift and precise manufacturing, brilliantly counteracting part deflection from intense cutting forces. It enhances the accuracy and elevates the quality of the finished product, establishing a new benchmark in precision machining.Discover the cutting-edge engineering of today's Swiss-style lathes, outfitted with one or two primary spindles in tandem with one or two secondary back spindles. The main spindle serves as the core powerhouse for the majority of machining operations, delivering unrivaled performance. Meanwhile, the innovative secondary spindle, strategically placed behind the part, efficiently collects the part post-cutting. It performs secondary operations with finesse, such as drilling or tapping previously unreachable sections of the workpiece, showcasing versatility and efficiency at every turn.Upon completing these intricate operations, the secondary spindle fluidly deposits the finished part into a collection bin, streamlining the entire process, and eliminating the manual intervention typical of standard CNC turning machines. When it comes to material versatility, Swiss lathes stand as champions, adeptly handling a diverse range of metals, including carbon steel, aluminum, stainless steel, and brass, as well as skillfully machining certain plastics such as nylon and polycarbonate. While they are less frequently utilized for wood, delight in the superior craftsmanship and efficiency that exemplifies the prowess and innovation of our Swiss Type CNC Lathe Machine.

Product Parameters

Items		SC425
Mechanic	System	FANUC 0i TF-PLUS	SYNTEC 220TB
	/Max.RPM	Main8,000min-1/Sub8,000min-1	Main6,000min-1/Sub6,000min-1
	Max.Turning Diameter	φ42mm
	Main Spindle Stroke	210mm
		5000rpm
		φ10mm
		M8/M6
		φ10mm
		M8
	Rapid traverse speed	32m/min(X1:24m/min)
Tools	O.D Tools	4X [16×16]+1X [20×20]
	I.N Tools	3X [φ25-ER16]+2X [φ20-ER16]
	()Cross Driven Tools(integration)	4X [ER16]
	()Back end tools(fixed)	4X [φ20-ER16]
Motors	Main	5.5/7.5KW	5.9KW
	Sub	1.5/2.2KW	3.9KW
	Cross	1KW	1KW
	Drive	0.75KW	1KW
	Coolant	0.4KW
Others	Coolant tank capacity	200L
	Lubrication tank capacity	1.8L
	Central Height	1,000mm
	Weight	4,500Kg
	(××)The size (L×W×H)	2760×1572×1882mm
NC NC Control	/ Controllable Axes	7axis/4axis
	LCD	LCD 10.4"
	System standard parameters	Standard
	Rigid tapping	Standard
	Hand wheel	Standard
	/ Synchronous/hybrid control	Standard
	Helical interpolation	Standard

Items
Standard units	Floodlight	The product output device
	Transformer	Centralized lubrication system
	C+ The spindle axis C + brake	Synchronus rotary guide bush holder unit
	C:0.001° C axis resolution: 0.001 °	Auxiliary shaft workpiece ejection device
	M Air blow on Sub spindle	Cooling box
0ptionanl units	Bar feeder	Front power tools
	Oil cooler	4 4axis cross tools
	Chip conveyor	cut-off tool detector
	High pressure pump	45 4axis or 5axis I.N tools
	Thread whirling rings	10 10axis I.N tools

Detailed Photos
Application
Applications of Swiss MachiningSwiss machining technology, once a shining star in the watchmaking industry, has now gracefully expanded its influence across numerous sectors, thanks to its unmatched precision and adaptability. This cutting-edge technology seamlessly integrates into various industries, enabling extraordinary achievements by providing:1) AerospaceIn the aerospace industry, the relentless demand for intricately detailed and highly specialized components finds its perfect match in Swiss machining. This sector heavily relies on these meticulously crafted lathes to produce essential parts from premium materials like aluminum alloys and steel. The outcome is the flawless creation of vital components such as fans and fasteners, designed to precision and perfection.2) Medical devicesWithin the medical field, Swiss-type lathes are pivotal in crafting intricately detailed components with unmatched precision. These machines are indispensable for manufacturing surgical instruments and implants, consistently meeting the rigorous precision standards that define the medical industry.3) ElectronicsIn today's era of relentless pursuit towards the miniaturization and sophistication of electronics, traditional lathes simply cannot meet the demands. Enter CNC Swiss machining, a game-changer that offers remarkable precision, adept at shaping connectors, pins, and intricate electronic components, thus perfectly aligning with the forefront of modern technological advancements.4) AutomotiveIn the face of ever-evolving and complex mechanical challenges in the automotive industry, Swiss machining technology emerges as an essential tool. It plays a pivotal role in developing advanced components, advancing the automotive industry to unprecedented levels.
With the adoption of Swiss machining, automotive manufacturers enhance the production of critical components such as suspension systems, carburetor covers, and engine parts. This strategic approach not only leads to significant cost reductions but also optimizes production workflows, substantially shortening manufacturing timelines while boosting efficiency.
Our Advantages
1. Professional Supplier: When you choose us, you're partnering with a team of seasoned experts renowned for their passion and expertise in delivering cutting-edge precision machinery solutions. Our commitment is unyielding, ensuring each product is meticulously crafted to fulfill your unique needs and surpass your highest expectations.
2. Best Quality: Experience the pinnacle of quality with our machines, engineered to provide unparalleled reliability and extraordinary performance. Our unwavering dedication to excellence is woven into the fabric of every machine, showcasing our relentless quest for perfection and superior craftsmanship.
3. Best Service: Immerse yourself in an unmatched customer service journey, where your satisfaction is our ultimate goal. From the moment you make an inquiry to the final delivery, we are devoted to providing a seamless and rewarding experience, ensuring that every interaction is beyond your expectations.
4. Best Price: Discover exceptional value through our competitively priced offerings. We are committed to delivering superior quality and service, ensuring you enjoy outstanding craftsmanship and affordability without any compromise.
Packaging & Shipping
Company Profile
Liaocheng Wayne New Materials Co., Ltd. stands proudly as a trailblazer in the dynamic domain of CNC Router and Laser Engraving & Cutting technology. Situated in the vibrant and forward-thinking city of Liaocheng, Shandong, our extensive and versatile product portfolio embodies excellence in machinery. We offer an impressive array of equipment, including our large-scale ATC Woodworking Router Machines, cutting-edge 5-Axis CNC Router Machines, and dependable CNC Advertising Router Machines. Additionally, our precision CNC Marble Engraving Machines, efficient CNC Plasma Cutting Machines, innovative CNC Metal Mold Machines, and adaptable CNC Lathe Machines are expertly crafted to fulfill the diverse demands of our clientele. Our high-precision Swiss Type Lathe Machines, robust Fiber Laser Cutting Machines, adaptable CO2 Laser Cutting & Engraving Machines, along with our state-of-the-art Laser Marking Machines and highly efficient Laser Welding Machines, exemplify superior craftsmanship. By embracing cutting-edge technology and adhering to uncompromising quality standards, we are dedicated to establishing the international brand 'Wayne.' Our premium products have successfully reached over 100 countries, penetrating key markets such as the United States, Germany, Indonesia, Canada, Australia, Russia, and extensively throughout Southeast Asia. This extraordinary global reach solidifies our position as a foremost international leader in our industry.
Our core mission is to deliver unparalleled service excellence to our valued customers. Whether seeking standard solutions or customized designs, we excel in providing precisely tailored solutions that cater to your unique needs. Every component of our state-of-the-art machines is meticulously sourced from globally acclaimed suppliers and innovators in machine control, ensuring both superior performance and unrivaled reliability. Our machines integrate seamlessly into a vast array of industries and artistic fields, including woodworking, intricate metal and stone craftsmanship, aluminum fabrication, boat building, shop fitting, and precision mold making. Backed by a dedicated, highly skilled after-sales service department, an expert sales team, and stringent quality assurance protocols, you can confidently make purchases from us. We warmly invite customers and potential business partners worldwide to collaborate with us, paving the way for mutual success. By delivering exceptional service, impeccable quality, and competitive pricing, Wayne positions itself as your ultimate partner of choice. We are eager to collaborate with you to create greater value together. Contact us with your requirements, and let's engage in a productive conversation. We are ready and waiting to embark on a promising journey together.
FAQ
1.What products do we have ?
Machine :laser engraving machine ,laser cutting machine ,laser welding machine ,laser marking machine /cnc lathe machine ,swiss type cnc lathe machine ,cnc machine center
2.Why Choose us ?
1)Faster delievery time
2)Full set of production equipment
3)Any third party test can be accepted
4)Payment terms are more flexible ,both TT and LC can be accepted
5)Perfect Pre-sale and After-sale services can be provided within 24 hours online
3.What is the best advantage do we have ?
Best Quality ,Best service ,Best price
