Single Axis Laser Diameter Gauge with Precision Technology for Reliable Industrial Measurement Solutions Made In China Product Description
The laser bidirectional diameter gauge is a high-precision measuring device that uses the laser scanning principle for non-contact online measurement. It measures the outer diameter in two directions (X-axis and Y-axis) at the same time. It is suitable for measuring and controlling the outer diameter of metal wire materials, glass tubes, hoses, wires and cables, etc. It measures in both directions at the same time and displays the average value. It overcomes the disadvantage that the unidirectional diameter gauge cannot measure out-of-round objects, and can simultaneously display the outer diameter and out-of-roundness of wires and tubes.
Features:
Applicable to metal wires, glass tubes, hoses, wires and cables, etc.
1)Can be connected to PLC, industrial computer, special controller, and large-screen display
2)Can extend the length of the diameter gauge
3)Can be equipped with PROFIBUS-DP and MODBUS converters to connect to PLC and industrial computer
4)Can be equipped with a remote controller to automatically feedback control the extruder and traction machine to keep the outer diameter within the tolerance range, improve product quality and reduce consumption.
5)Can measure transparent objects. Product Parameters

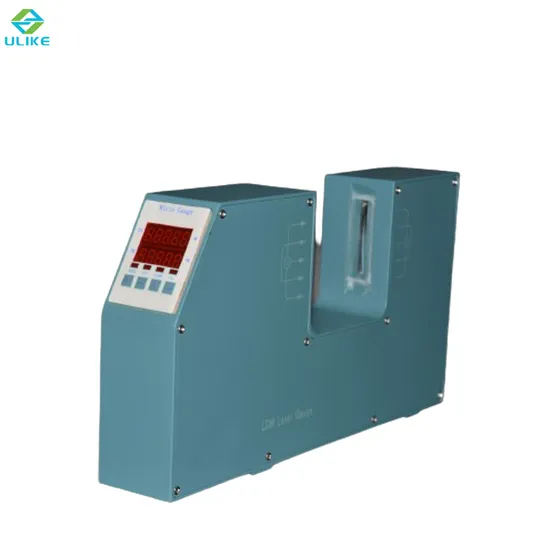

SINGLE AXIS LASER DIAMETER GAUGE
Model	LDM-25	LDM-30E	LDM-50	LDM-1050
Measuring Range	0.3-20mm	0.3-25mm	0.3-45mm	0.3-45mm
Accuracy	±0.002	±0.002	±0.002	±0.002
Repeatability	0.5μm	0.5μm	0.5μm	0.5μm
Resolution	0.001mm	0.001mm	0.001mm	0.001mm
Dimension	485x200x85mm	300x180x70mm	485x200x85mm	345x185x60mm
Units of Measurement	mm	mm	mm	mm
Power	~220V+15%, 50-60HZ
Temperature	-10~40ºC
Humidity	<85% RH
Gauge Head Serial I/O	Standard: RS485 Options: RS232/USB
Communication Protocol	Modbus/Profibus(Option)
Presets	Diameter,+Tol,-Tol,Alarm Setting
Transparent Measurement	Option	Option	Option	Option
Measuring Head Setting	No	Yes	No	Yes
Control Output
Serial I/O	RS485
Analogues Output	0-10V DC Output
Relay Output	2Volt Free (Status,Upper Tolerance,Lower Tolerance)
