Welding Rotator Apply in Turning Rolls and Vessel Roller

Product Description

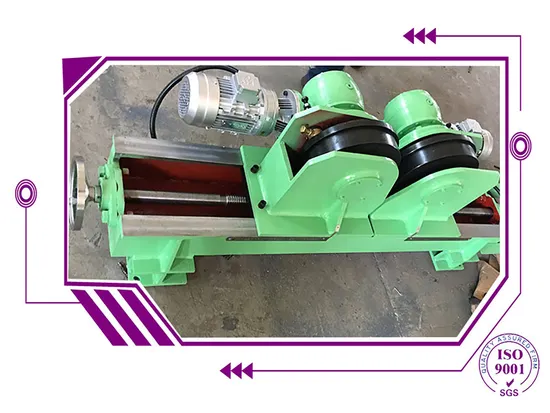

Welding rotator is a kind of our advanced welding equipment , which is be researched and manufactured absorbing domestic and international advanced equipment .it is mainly used for pipe, containers, boilers, pressure vessels, oil tank and other cylinder's assembling, burnishing and welding, can use together with column and boom and SAW system to realize inside and outside girth and longitudinal welding. Its series includes self aligning rotators (SAR), and conventional rotators (WR). Other customize have trolley tilting anti drift rotator; Accordingly this device has advantages of compact structure, small cubage, beautiful shape, lightweight, convenient operating and so on. The machine can assort all kinds of auto welding or manual welding, improving welding quality, lessening welding labor and improve productivity.
We can provide solutions to unique welding rotator according to the customer's requirement

model (HGK##)	max load capacity(tons)	vessel diameterΦd-ΦDmm	diameter and width of wheel		wheel distance adjust way	motor power, kw	wheel speed m/min	Overall Dim. (L*W*H)		G.W (tons)
			Rubber D1*W3(mm)	metal D2*W4(mm)				Power L1*W1*H	Idler L2*W2*H
WR2	2	250-1800	200*80	2-190*16	adjust by manual lead screw or bolt separately	2*0.18	0.1-1 VFD	1260*500*410	1260*350*410	0.45
WR3	3	250-1800	200*80	2-190*16		2*0.25		1260*500*410	1260*350*410	0.50
WR5	5	250-2300	250*100	2-240*20		2*0.37		2000*500*480	1600*380*480	0.90
WR10	10	320-2800	300*120	2-290*25		2*0.55		2440*610*550	2320*450*550	1.6
WR20	20	500-3500	350*120	2-340*30		2*1.1		3100*675*660	2500*500*660	2.0
WR40	40	600-4200	400*120	2-390*40		2*1.5		3300*700*720	2600*600*720	2.5
WR60	60	700-5000	450*120	2-440*50		2*2.2		3800*870*830	3000*650*830	3.1
WR80	80	700-5500	500*120	2-490*60		2*3		4380*900*870	3400*700*890	3.4
WR100	100	700-6000	500*120	2-490*80		2*3		4380*970*980	3800*760*980	5.8
WR 150	150	1000-6000	/	500*260	adjust by bolt separately	2*4		4500*1000*1060	4050*800*1060	7.5
WR 250	250	1000-7500	/	660*260		2*5.5		4900*1060*1100	4380*920*1100	11.0
WR 400	400	1000-7500	/	700*300		2*5.5		5900*1140*1180	5500*920*1180	17.5
WR 500	500	1000-8000	/	800*350		2*7.5		6200*1280*1350	5700*1000*1350	22.3
WR 600	600	1500-8500	/	850*360		2*7.5		6900*1300*1600	6000*1200*1600	27.5
WR 800	800	1500-9000	/	900*380		2*11		7100*1400*1600	6500*1260*1600	30.0
WR 1000	1000	1500-10000	/	1000*350		2*15		7500*1600*1700	7000*1320*1700	40.0
WR1200	1200	1500-12000	/	1000*450		2*15		8380*1600*1800	7200*1320*1800	51.0

Notes:
a) Variable rotation speed from 100 to 1000 mm/min: included
b) Wheels padded with heavy duty rubber: Included on models SAR 100 and smaller
c) Remote control box with 6-12 m span: included, and allows adjustment of rotating speed -digital display in mm/min-,forward and reverse rotation, and stop
d) Auto adjusted tilt angle of roller bed as per diameter of work piece
e) Shot blasted frame at SA 2 ½: included
f) Variable Frequency Driver (VFD) made by Teco or other brand
g) Custom built welding rotators: available
h) CE mark only under customer request
i) The information contained in this brochure is intended to be accurate. However the manufacturer retain the rights to make changes in design which may not be include
Standard package includes
One power unit with control box
One idler unit
Operation manual
One year warranty
Optional:
+Turning rolls mounted over manual or motorized bogies
+ Synchronized operation of multi number of power rotators
+ Pu roller instead of rubber roller
