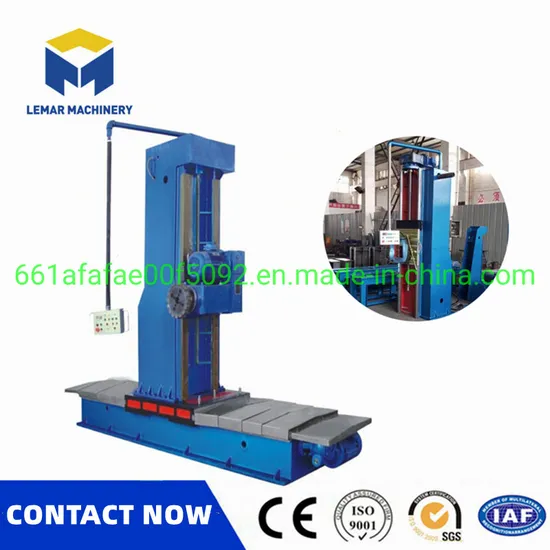

CNC Dx 1530 H Beam Box Beam End Face Milling Machine

Product Description

CNC DX 1530 H Beam Box Beam End Face Milling Machine The H-beam Box beam end milling machine is the most common milling equipment. It can use a variety of different tools to mill the workpiece plane, chamfer the trapezoidal surface and the T-slot.
The DX series end milling machine can adjust the angle of 0~45° in the vertical plane, the column can be raised and lowered, and the table can be retracted left and right. Specification:

No.	Item	Specification	Note
1	Applicable workpiece maximum cross-sectional size H×W	1500×3000 mm
2	Working speed in the horizontal direction of the sliding table	100~800 mm/min	Frequency conversion speed regulation, milling feed speed
3	The speed of advance and rewind in the horizontal direction of the slide table	1200 mm/min	Adjust the speed
4	Power head vertical milling speed	100~800 mm/min	Frequency conversion speed regulation, milling feed speed
5	Horizontal feed motor power	2.2 kW	Frequency
6	Vertical adjustment of motor power	3.0 kW	Frequency
7	Milling motor power	7.5 kW
8	Milling head spindle speed	75~420 rpm	6-speed handle speed-adjustable milling power head
9	Maximum milling depth at one time	8mm	Appropriate cutter head and walking speed
10	Adjustment angle of the power head	0~45º	Adjustable bevels of the millable end face in the vertical plane
11	Milling cutter head diameter	Ø125~250 mm	Factory equipped with a pair of Ø 200 cutter head
12	Telescopic amount of milling head spindle	L=100 mm
13	Hydraulic clamping workpiece support	1 set 2 pcs
14	Power supply	380V, 60Hz, 3p

Performance characteristics: 1.The H beam Box beam end milling machine is composed of milling head, lifting column, bed, mechanical feed system, electrical control system, guide rail protection device, tool and other parts
2.The guide rails in the horizontal direction are heavy-duty ball linear guide rails produced by HIWIN TAIWAN, with strong bearing capacity, small clearance and high precision. Lemar's structural parts are different from the guide rail welding of other 7.5KW DX series end face milling manufacturers. Our guide rails are made of high hardness, not easy to be pulled, and have high precision. 3.Automatic end face milling machine for H beam box beam adopts a hanging operation station, which can facilitate the operator to operate the milling cutter 4.The bed and column of h beam box beam automatic end face milling beveling machine adopt welded structure, which is annealed as a whole after welding, which is stable and not deformed, and has high precision
Lemar has more than 10 years of experience specializing in mechatronics products such as cutting and welding equipment, CNC machinery, robot auxiliary equipment, etc.; has cultivated a team of experienced and highly skilled talents
Our main products are:
Box beam production line series
H-beam production line series equipment
U-beam production line series equipment
Wind tower production line
CNC cutting series
Shot blasting machine
Automatic welding center
Automatic welding manipulator
Welding positioner
Welding roller frame displacement Machines and other special machines, auxiliary machines, edge milling machines, end milling machines, steel plate splicing machines, etc.
The products cover all parts of the country and are exported to Europe, America, Southeast Asia and the Middle East and other countries. It is one of the domestic H-beam production line export bases. Economic globalization has brought unprecedented development opportunities to Lemar Machinery.
In the wave of economic globalization, we will build a world-class brand and move towards a higher goal!
