3 Layer 3000L Water Tank Blow Molding Machine

Product Description

Product Description
3000L Three layer blow molding machine.
1.Adopt Siemens PLC,Siemens Touch Screen and MOOG to make the operation easy.
2.Adopt progressive hydraulic system by ourselves,easy to control.
3.Adopt inverter to control the clamping system,saving a lot of energy.
4.The technology of DIe Head is the same with Germany.
5.Configuration:

PARISION CONTROL THINCKNESS CONTROL	MOOG	JAPAN
PLC	SEIMENS	GERMANY
TEMPERATURE CONTROL MODULE	SEIMENS	GERMANY
SERVO VALVE & SERVO TRANSDUCER	MIRAN	ITALY
INVERTER	SEIMENS	GERMANY
HYDRAULIC OIL SEAL	DZ	TAIWAN
INTERMEDIATE RELAY	OMRON	JAPAN
PNEUMATIC VALVE	AIRTECH	TAIWAN
HYDRAULIC PUMP & VALVE	YUKEN	JAPAN
PNEUMATIC SWITCH & CONTACTOR	SEIMENS	GERMANY
HYDRAULIC MOTOR & SCREW MOTOR	SEIMENS	GERMANY
REDUCER	GUOMAO	CHINA

6.Specification

No		specifications	3000 Liter
		Model No.	3 layers
		Processing material	HDPE/HMWHDPE
1	Extruders	Gear Box Type	Hard Surface
		Extruder Drive Motor(Inter)	75KW
		Extruder Drive Motor(Middle)	75KW
		Extruder Drive Motor(Outer)	75KW
		Heating Load	110KW
		Max Screw Speed	60RPM
2	Accumulator Die Head	Pusher Cylinder	∮560X400mm
		Heating Load	90KW
		Parison Control Cylinder	∮530X50mm
		Die-Core size[Min/Max]	∮300-700mm
		Max. Parison weight	80KG
3	Molding Clamping Unit	Clamping Platen Size	2100X2200mm
		Max Mold Size	1900X2300mm
		Mould Clamping Force	2200KN
		Mould Thickness	1000-2200
		Clamping Pull Bar	150mm
4	Hydraulic System	Hydraulic Drive motor(Main)	45KW
		Hydraulic Drive motor(Parison Control)	7.5KW
		Oil Tank Capacity	1200L
5	Gripper	Gripped Stroke	350mm
		Discharge Stroke	2400mm
6	Hopper Loader	Loader	800kg/H 3pcs
		Hopper	50Kg 3pcs
7	Weight		65Ton
8	Size		12X4.5X7.2M
9	Total Power		350KW
10	Average power		250KW

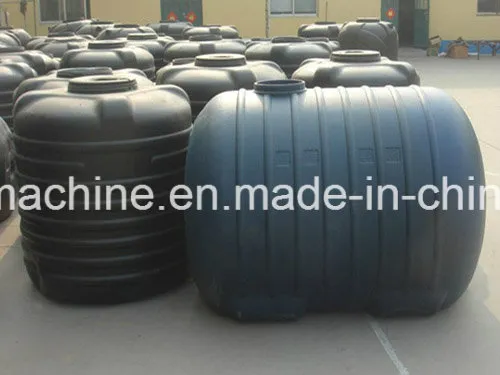

7.OUTPUT FOR 3000 L BLOW MOLDING MACHINE:

Commodity	Output	Unit	Weight	Unit
1000 L Mould	12	PC/H	18	KG
1500 L Mould	9	PC/H	26	KG
2000 L Mould	8	PC/H	36	KG
2500 L Mould	7	PC/H	45	KG
3000 L Mould	6	PC/H	54	KG

DELIVERY TIME
4 months after the down payment;
TRAINNING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory in the periods of installing & adjusting;
INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines for one week(free of charge) in the Buyer's factory. After one week,if the Buyer still needs the training,$50 should be paid for the engineer.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in buyer's factory.And the Buyer should also pay for the air ticket for the engineer.
GUARANTEE
The guarantee time is one year after the machines normally works in the Buyer's factory, if only the problem is cause due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you how to solve the problems.
Any problem caused due to irregular operation or incorrect maintenance by the Buyer won't be listed in guarantee coverage.
