Microwave Rectangular Straight Waveguide Aluminium/Copper Rectangular Straight Waveguide of Microwave Components

Product Description

Products Description Rectangular Straight Waveguide is an important guiding wave device that uses metal tubes to transmit electromagnetic waves. The tube walls are usually copper, aluminum or other metal materials, which are characterized by simple structure and high mechanical strength. Waveguide has no inner conductor, low loss, large power capacity, electromagnetic energy is guided to spread in the inner space of the waveguide, can prevent external electromagnetic leakage. specifica

Model No*	Freq Range (GHz)	VSWR (Max)	Std Dimensions A×B×R (mm)**	WG Type		Flange	Material
				IEC	EIA
EF-22WEB …	1.72-2.61	1.15	190×190×95	R22	WR430	FDP/FDM	Al/Cu
EF-22WHB …	1.72-2.61	1.15	250×250×152	R22	WR430	FDP/FDM	Al/Cu
EF-26WEB …	2.17-3.30	1.15	100×100×40	R26	WR340	FDP/FDM	Al/Cu
EF-26WHB …	2.17-3.30	1.15	180×180×100	R26	WR340	FDP/FDM	Al/Cu
EF-32WEB …	2.60-3.95	1.10	100×100×40	R32	WR284	FDP/FDM	Al/Cu
EF-32WHB …	2.60-3.95	1.10	160×160×100	R32	WR284	FDP/FDM	Al/Cu
EF-40WEB …	3.22-4.90	1.10	80×80×40	R40	WR229	FDP/FDM	Al/Cu
EF-40WHB …	3.22-4.90	1.10	120×120×78	R40	WR229	FDP/FDM	Al/Cu
EF-48WEB …	3.94-5.99	1.10	80×80×40	R48	WR187	FDP/FDM	Al/Cu
EF-48WHB …	3.94-5.99	1.10	80×80×40	R48	WR187	FDP/FDM	Al/Cu
EF-58WEB …	4.64-7.05	1.10	80×80×40	R58	WR159	FDP/FDM	Al/Cu
EF-58WHB …	4.64-7.05	1.10	80×80×40	R58	WR159	FDP/FDM	Al/Cu
EF-70WEB …	5.38-8.17	1.10	60×60×30	R70	WR137	FDP/FDM	Al/Cu
EF-70WHB …	5.38-8.17	1.10	80×80×50	R70	WR137	FDP/FDM	Al/Cu
EF-84WEB …	6.57-9.99	1.10	50×50×25	R84	WR112	FBP/FBM/FBE	Al/Cu
EF-84WHB …	6.57-9.99	1.10	60×60×35	R84	WR112	FBP/FBM/FBE	Al/Cu
EF-100WEB …	8.20-12.40	1.10	40×40×20	R100	WR90	FBP/FBM/FBE	Al/Cu
EF-100WHB …	8.20-12.40	1.10	55×55×35	R100	WR90	FBP/FBM/FBE	Al/Cu
EF-120WEB …	9.84-15.0	1.10	40×40×20	R120	WR75	FBP/FBM/FBE	Al/Cu
EF-120WHB …	9.84-15.0	1.10	45×45×30	R120	WR75	FBP/FBM/FBE	Al/Cu
EF-140WEB …	11.9-18.0	1.10	40×40×20	R140	WR62	FBP/FBM/FBE	Al/Cu
EF-140WHB …	11.9-18.0	1.10	40×40×25	R140	WR62	FBP/FBM/FBE	Al/Cu
EF-180WEB …	14.5-22.0	1.10	30×30×15	R180	WR51	FBP/FBM/FBE	Al/Cu
EF-180WHB …	14.5-22.0	1.10	35×35×20	R180	WR51	FBP/FBM/FBE	Al/Cu
EF-220WHB …	17.6-26.7	1.15	30×30×15	R220	WR42	FBP/FBM/FBE	Al/Cu
EF-220WHB …	17.6-26.7	1.15	35×35×20	R220	WR42	FBP/FBM/FBE	Al/Cu
EF-260WEB …	21.7-33.0	1.15	30×30×15	R260	WR34	FBP/FBM/FBE	Al/Cu
EF-260WHB …	21.7-33.0	1.15	35×35×20	R260	WR34	FBP/FBM/FBE	Al/Cu
EF-320WEB …	26.3-40.0	1.15	25×25×10	R320	WR28	FBP/FBM/FBE	Al/Cu
EF-320WHB …	26.3-40.0	1.15	30×30×15	R320	WR28	FBP/FBM/FBE	Al/Cu
EF-400WEB …	32.9-50.1	1.20	25×25×10	R400	WR22	FUGP	Cu
EF-400WHB …	32.9-50.1	1.20	20×20×10	R400	WR22	FUGP	Cu
EF-500WEB …	39.2-59.6	1.20	25×25×10	R500	WR19	FUGP	Cu
EF-500WHB …	39.2-59.6	1.20	25×25×10	R500	WR19	FUGP	Cu
EF-620WEB …	49.8-75.8	1.20	20×20×10	R620	WR15	FUGP	Cu
EF-620WHB …	49.8-75.8	1.20	25×25×10	R620	WR15	FUGP	Cu
EF-740WEB …	60.5-91.9	1.20	20×20×10	R740	WR12	FUGP	Cu
EF-740WHB …	60.5-91.9	1.20	25×25×10	R740	WR12	FUGP	Cu
EF-900WEB …	73.8-100	1.20	20×20×10	R900	WR10	FUGP	Cu
EF-900WHB …	73.8-100	1.20	25×25×10	R900	WR10	FUGP	Cu

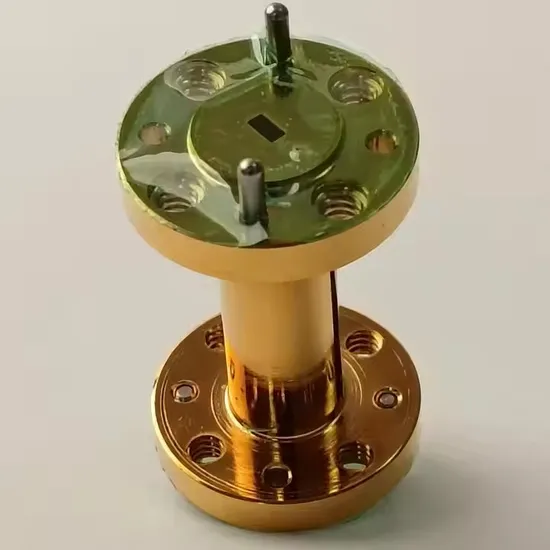

Product picture
Product Description 1.Radome Testing The military and commercial aircraft carry a vast array of antennas for specialized and vital functions. Communications, navigation, weather and fire control antennas must perform as specified to meet safety and mission requirements. Radomes must conceal and protect antennas without interfering with or degrading transmit/receive capabilities.
2.Satellite Antenna Testing
RF testing of flight hardware poses challenges that are unique to the space industry and antennas specifically, are often delicate and gravitationally sensitive. Minimizing or even avoiding motion of these antennas during testing is highly desirable for two reasons: Firstly, it minimizes risk to the antennas. Secondly, the standard gain horn antenna can be deployed with respect to a fixed gravity vector.
3.Wireles
Wireless networks rely on antennas and our products allow for the reliable characterization of these antennas. We offer test systems that are suitable for evaluation of electrically small handset or other UE antennas, as well as electrically large base station antennas. Packaging & Shipping
