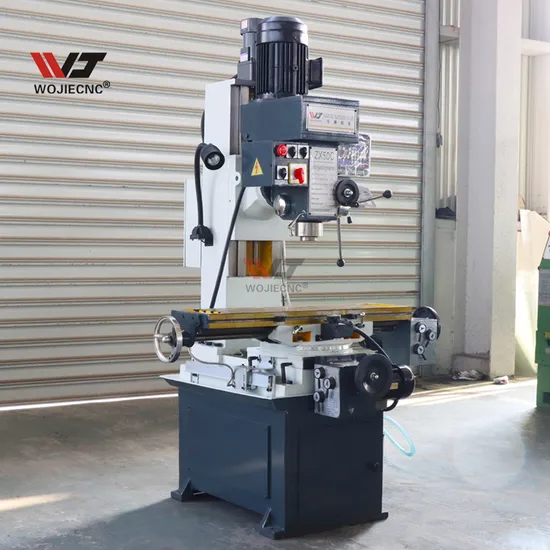

Zx50c Small Horizontal Milling Machine Drilling Milling with Universal Functionality

Product Description

Product Description
ZX50C drilling and milling machine has good abrasion resistance, the milling head can not only rotate backward on the vertical plane, but also rotate on the bed, which has good processing versatility. It can process planes, grooves, spiral surfaces,inclined surfaces, forming Noodles, etc.
Product Parameters

Specification	Unite	ZX50C milling machine
Max. drilling diameter	mm	50
Max.Horizontal Milling Dia.	mm	100
Max.Vertical Milling Dia.	mm	32
Max.Boring Dia.	mm	100
Spindle Taper		MT4,R8
Spindle Speeds Range		(5 step)115-1750
Spindle Travel		120
Table Size	mm	800*240
Table Travel	mm	400*(120)*380
Main Motor Power	kw	1.5
N.W/G.W	kg	470/550
Dimension	mm	1100*970*1650

Detailed Photos

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.
