Refrigerator & Freezer Parts Defrost Heating Element

Product Description

Refrigerator & Freezer Parts Defrost Heating Element
Product Description

ITEM	Defrost Heater	Tube Material	Stainless Steel 304,310S,316L,incoloy 840
Filler	MgO	Heating Wire Material	Nickel chromium wire,Iron chromium wire
Cold Bar	M3 M4 Stainless Steel 304	Leads Wire Materal	Silicon Rubber
Seal Tech	Heating Press	WaterProof	IP67
Voltage	110V/220V/400V/480V	Power	<500W/M
MOQ	120PCS/TYPE	Warranty	2 Years

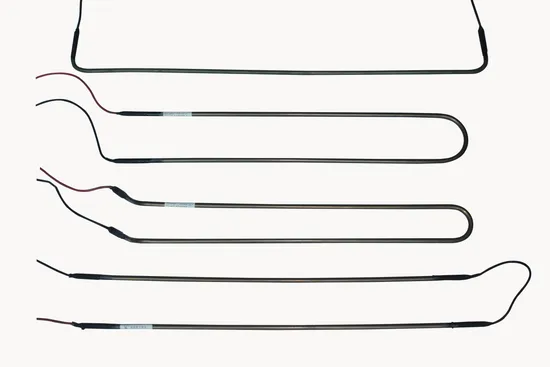

Various Types Products
The Defrost Heater Shape can be customized according to requirements
Production Application
Defrosting heating element is designed for defrosting hard of various kinds of freezer,refrigerator . lt is adopted the stainless steel as the base material. Any shape to the user's requirements.This properties of the product are defrosted effectually, The insulating resistance is excellent . corrosion-resistant, resist and wear out ,lt is safe and reliable to carry the sealed dampproof performance of the end which obtained the national patent.
Feature and Technical Data
1.The material of tube is Incoloy840,AISI 304, 321
2.The diameter of tube is 6.5mm,8mm,8.5mm,9mm,10mm,11mm 12mm,14mm
3.Ambient temperature: -60°C ~ +125°C
4..High- voltage in Test 8:16,00V/ 5S
5:Firmness of connection end:≥50N
6.High temperature molded Neoprene
7.Insulation resistance>500MΩ
8.Leakage current to be 0.5ma max While energized at rated voltage
9.Power tolerance:+5%,-10%
Production Procession
Packaging & Shipping
We sill use carton to package small quantity, and Pllate , Wooden case for large quantity products.
We will ship them via International Express like FedEx,DHL,TNT,UPS and so on for small quantity
We will ship them via Ship from Ningbo port or Shanghai port to customer for large quantity products
We also ship them via train line or Air to your country acocrding to your requriement
SHIPMENT
1-Via International Express like FedEx,DHL,TNT,UPS and so on for small quantity
2-Via Ship from Ningbo port or Shanghai port to customer for large quantity products
3-Via train line or Air to your country acocrding to requriements
Company Profile
The company is located in Shengzhou, Zhejiang. Jingwei Heat was founded in 2014, with a construction area of 6000 square meters and nearly 100 employees
Specializing in heating tube; silicone heating elements; Aluminum foil heating strips for refrigerators, freezers, etc; With an annual production capacity of 1 .5 million sets of heating tubes and 2 million sets of aluminum foil heater, we are a long-term stable supplier to manufacturers such as Mitsubishi, Electrolux, Backer, Meida, Entive and so on.
FAQ
Q:WHAT IS THE MATERIAL OF TUBE?
A:THERE ARE STAINLESS STEEL 304 AS USUAL AND INCOLOY 840
Q:HOW WE CHOOSE THE TUBE DIAMETER?
A:TUBE DIAMETER IS 6.5MM,8.0MM.10.7MM, IT IS ACCORDING TO YOUR MACHINE SIZE TO CHOOSE
Q:SHALL WE PURCHASE DARK GREEN(SOFT TUBE) DEFROST HEATER?
A:YES,BUT THE PRODUCTION TIME IS ABOUT 25-35 DAYS
Q:WHAT IS THE WARRANTY?
A:2 YEARS FROM LEAVING FACTORY
Q:HOW TO ORDER?
A:PLEASE SEND ME INQUIRY VIA NETPAGE OR CALL ME
Q:HOW MANY WORKERS IN FACTORY?
A:THERE ARE MORE THAN 100 WORKERS IN FACTORY, AND MORE THAN 15 WORKERS IN OFFICE
