Portable Stone Crusher 520t/H Sp127jtd Jaw Crushers with Magnetic Separator

Product Description

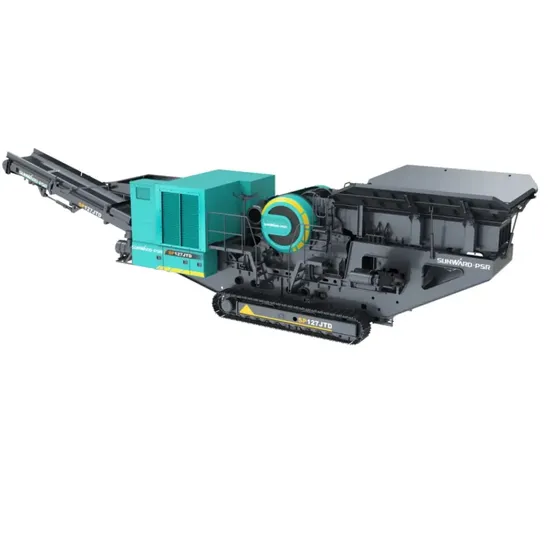

Portable Stone Crusher 520t/H SP127JTD Jaw Crushers with Magnetic Separator The SP127JTD crawler jaw crushing plant is equipped with a high-performance SPG1176J jaw crusher, which can efficiently crush a wide range of rock types, including high-strength rocks such as granite, basalt, diabase, and construction waste (reinforced concrete, concrete, brick). The vibrating grate feeder allows for the pre-screening of fine material, which is discharged by a side discharge conveyor. The main discharge conveyor can be equipped with an overhead magnetic separator to separate metal inclusions to prevent them from entering the final product or subsequent crushing stages.
Advantages and highlights:
1. Efficient primary crushing of a wide range of rock types
2. Patented integrated type frequency conversion system
3. The weight of the unit allows it to be transported by road
4. Control of the position of conveyors and sides of the receiving hopper using hydraulic cylinde
Product Parameters

Item	Unit	SP127JTD
Maximum feeding dimension	mm	700
Receiving hopper	m³	6
Maximum throughput	t/h	170-520
Machine weight	t	59
Engine power	kW	168
Drive Type	Diesel-electric
