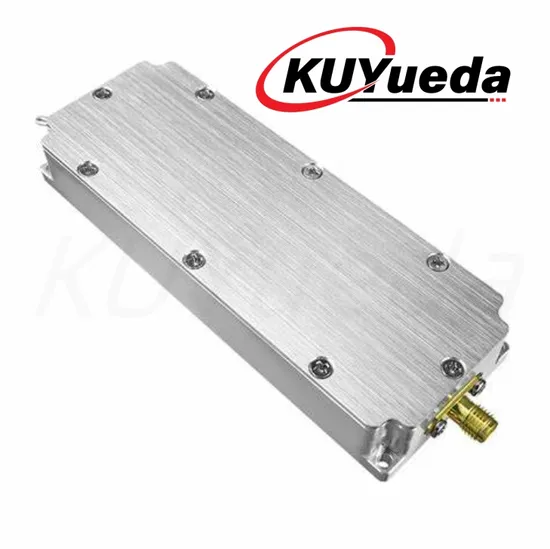

Customized 100W Power Amplifier Module for Drone Defense
Basic Info.
Model NO.
KU-MK 50f
Trademark
KUYUEDA
Origin
China
HS Code
2014103997
Production Capacity
50000
Product Description
Product Specificatio
| Test item | Technical parameters | Unit | Remark | |||
| Frequency Range | 860-930 | MHz | Customized Frequency | |||
| Operating Voltage | 28 | V | 28-32V | |||
| Maximum Power Output | 50±0.5 | dBm | 100W@≤7A | |||
| Gain | 45±1 | dB | peak-to-peak value | |||
| In-band fluctuation | ≤2 | dB | peak-to-peak value | |||
| Spurious Emission | Operating In-band | ≤-15dBm/1MHz | dBm | Center Frequency add CW Signal to Maximum Power Output Test | ||
| Operating Out-of-band | 9KHz~1GHz | No noise wave above normal base | dBm | |||
| 1G~12.75GHz | dBm | |||||
| Output VSWR | ≤1.30 | No power up:Standard Grid Output -10dBm | ||||
| ≤1.30 | Power up:Dual Directional Coupler Test | |||||
| high-low temperature test | Operating Ambient Temperature | -10~+55 | ºC | Cold Start | ||
| Gain Stability | ±1.5 @-40ºC~+55ºC | dB | ||||
| Power Stability | ±1 @-40ºC~+55ºC | dB | ||||
| Power Supply Requirement | ≥8A@+28Vdc; | Continuous Wave Output 100W | ||||
| Power Supply Port | Power Cable:Red positive Black negative | Red positive Black negative | ||||
| RF Output Connector | SMA | SMA External Screw Base | ||||
| Warming | Temperature,VSWR,Under Voltage/Power,Over Current | |||||
| Frequency (MHZ) | Power (dBm) | Current (A) | Voltage (V) | Dimensions(mm) | Weight (kg) |
| 400-500 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 500-600 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 600-700 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 720-830 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 830-930 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 930-1030 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 1170-1280 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 1550-1620 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 2400-2500 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 5100-5300 | 50±1 | ≤10 | 32-36 | 94*170*27 | 0.8 |
| 5700-5900 | 50±1 | ≤10 | 32-36 | 94*170*27 | 0.8 |
