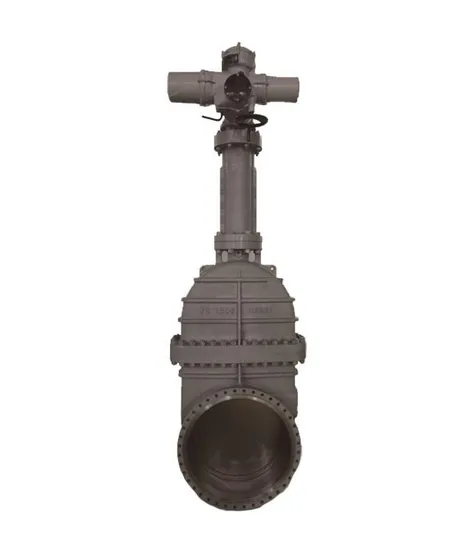

AOC-9031 Series Single Parallel Sliding Gate Valves (also known as flat gate valves) are one of the important types of control valves in the production process. Single Parallel Sliding Gate Valves have excellent opening and closing characteristics, featuring full bore, low flow resistance, good sealing performance, and easy operation. They are suitable for the transportation pipelines and storage equipment of refined oil products, wellhead devices for oil and natural gas extraction, and pipelines for media containing suspended particles and fibers.
AOC-9032 Series Double Parallel Sliding Gate Valves are also an important type of control valve in the production process. These valves adopt a unique metal contact structure, ensuring reliable operation and extremely high cut-off performance. They are widely used in emergency shut-off valves, vent valves, or large-diameter control valves under high-temperature, high-pressure, and extremely low-temperature conditions. Applications include transportation pipelines and storage equipment for refined oil products, wellhead devices for oil and natural gas extraction, pipelines for media containing suspended particles and fibers, independent steam turbine feed systems, and harsh conditions involving high-temperature and high-pressure particles.Product Parameters

Body Type			AOC-9031 Single Parallel Sliding Gate Valves	AOC-9032 Double Parallel Sliding Gate Valves	AOC-9033 Spring Loaded Double Parallel Sliding Gate Valves
Actuator Size			1.1/2''(40A)-36''(900A)	1.1/2''(40A)-36''(900A)	1.1/2''(40A)-24''(600A)
Plug Size			1.1/2''(40A)-36''(900A)	1.1/2''(40A)-36''(900A)	1.1/2''(40A)-24''(600A)
Body Rating			ANSI 150-300	ANSI 150-600	ANSI 150-1500
Fluid Temperature			-20~+250ºC	-20~+450ºC	-20~+566ºC
Connections			Flanged(RF, RTJ), Butt Weld, Socket Weld(SW, BW)
Body Materials			A216WCB/C,A217 WC6/9, A351 CF8, A351CF8M,etc
Trim Materials			A105+ENP+PTFE,SUS316+Stellite, etc		SUS316+Stellite
Flow Materials			ON-OFF	ON-OFF	ON-OFF
Leakage		Metal Seat	ANSI Class V	ANSI Class V, VHS	ANSI Class V, VHS
		Soft Seat

Structural Features
Non-guided Structure Features
1. The gate does not have a guide hole, resulting in a compact structure, small size, and lightweight valve.
2. The gate can be designed with V-shaped, semi-circular, or pentagonal channels, providing the valve with regulating capabilities to adjust to any opening degree and meet the flow requirements of pipeline systems (see the right diagram).
3. The two valve seats are floating and have a soft-hard composite seal, ensuring a long service life. When the internal cavity pressure of the valve abnormally rises, the floating valve seat can automatically release the high pressure into the pipeline.
4. Grease injection valves are provided at the external seats of the valve body. During use, if leakage occurs due to seal pair wear, sealing grease can be injected here to prevent valve leakage.
5. A drain valve is provided at the bottom of the valve body to discharge accumulated impurities inside the valve.
Guided Gate Structure Diagram
1. When the valve is fully open, the guide hole in the gate aligns with the valve body channel to form a straight pipe section, allowing direct media purging (see above diagram).
2. During the gate's opening or closing travel, the valve seat always contacts and fits the gate. The soft valve seat can automatically scrape impurities off the gate during operation, making the flat gate valve suitable for media with suspended particles and fibers, while preventing seal surface damage from valve body thermal deformation.
3. The two valve seats are floating and have a soft-hard composite seal, ensuring a long service life.
4. When the valve cavity pressure abnormally rises, the floating valve seat can automatically release the high pressure into the pipeline.
5. A drain valve is provided at the bottom of the valve body to discharge accumulated impurities inside the valve.
