C6241/C6246 Precision Horizontal Medium Duty Manual Lathe for Metal Working

Product Description

C6241/C6246 Precision Horizontal Medium Duty Manual Lathe for Metal Working

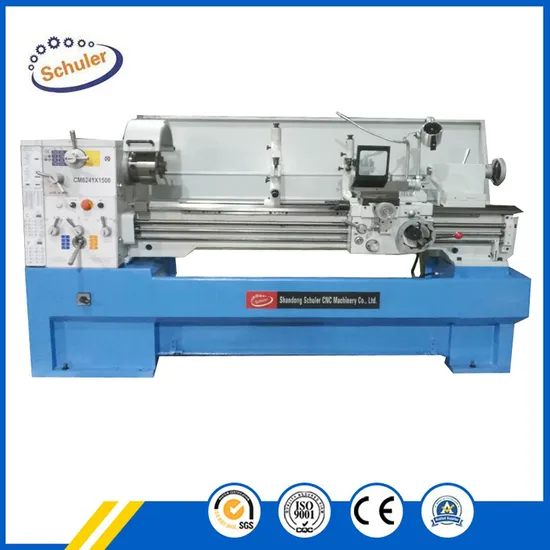

Product Picture:
Product Features:
1. Chrome Molybdenum headstock gears are hardened and ground
2. Universal gearbox allows inch, metric, diametral, and module pitch threads without changing gears
3. High quality ANSI Class 50 waer-resistant bed ways are hardened and ground
4. Removable Gap allows up to larger diameter workpiece
5. Attractive chrome-plated control levers, dials and knobs complete this impressive package
6 D1-6 spindle is precisely ground for accuracy and supported by high quality spindle bearings
7. Large easy to use foot brake
Random attachments:
1·Lighting
2·Cool down
3·Three-jaw chuck + tray
4·Reducing sleeve
5·Oil gun
6·Wrench
7·Baffle plate
Optional accessories:
1·Drawing
2· four-claw chuck + tray
3·Flower plate
4. Center frame
5·with knife holder
6. Live top
7. Spring screw guard
8. Digital display
9. Taper model
Lathe Machine Technical Parameters:

Model	C6241D×1000	C6241D×1500	C6246D×1000	C6246D×1500
Swing over bed	Φ410mm(16")		Φ460mm(18")
Swing over cross slide	Φ224mm(8 13/16")		Φ274mm(10 3/4")
Swing in gap(D×W)	640mm×218mm		690mm×218mm
Height of center	205mm(8 5/64")		230mm(9 1/16")
Distance between centers	1015mm/1515mm		1015mm/1515mm
Width of bed	300mm(11 3/4")		300mm(11 3/4")
Max. section of cutting tool	25mm×25mm(1"×1")		25mm×25mm(1"×1")
Total travel of cross slide	290mm(11 3/8")		290mm(11 3/8")
Total travel of top slide	120mm(4 3/4")		120mm(4 3/4")
Spindle bore	Φ82mm(3 1/4")		Φ82mm(3 1/4")
Spindle nose	D1-8		D1-8
Spindle morse taper in nose,in sleeve	ME90/M.T.#5		ME90/M.T.#5
Spindle speeds number	12		12
Spindle speeds range	25-2000 R.P.M		25-2000 R.P.M
Leadscrew diameter&thread	35mm(1 3/8")×4 T.P.I or pitch 6mm		35mm(1 3/8")×4 T.P.I or pitch 6mm
Threads imperial pithches	4-112(50 NOS)		4-112(50 NOS)
Threads metric pithches	0.25-7(24 NOS)		0.25-7(24 NOS)
Diametral pitches DP/DP	4-112(50 NOS)		4-112(50 NOS)
Diametral pitches MP/MP	0.25-14(34 NOS)		0.25-14(34 NOS)
Longitudinal feeds(imperial/metric)	0.0011"-0.0316"(50Nos)/0.01mm-0.286mm(50Nos)		0.0011"-0.0316"(50Nos)/0.01mm-0.286mm(50Nos)
Cross feeds(imperial/metric)	0.00024"-0.0068"(50Nos)/0.01mm-0.286mm(50Nos)		0.00024"-0.0068"(50Nos)/0.01mm-0.286mm(50Nos)
Total travel of tailstock quill	120mm(4 3/4")		120mm(4 3/4")
Tails stock quill	Φ60mm(2 3/8")		Φ60mm(2 3/8")
Taper tailstock quill	M.T.#4		M.T.#4
Spindle drive motor	7.33HP(5.5KW)		7.33HP(5.5KW)
Coolant pump motor	4/75HP(0.04KW)		4/75HP(0.04KW)
Machine dimension	88"×36"×49"/110"×36"×49"		88"×36"×51"/110"×36"×51"
Packing dimension	93"×39"×62"/114"×39"×62"		93"×39"×64"/114"×39"×64"
N.W	1680KG/2010KG		1730KG/2060KG
G.W	1930KG/2260KG		1980KG/2310KG

Brand Image:
As a professional manufacturer of lathe machines, we want our customers to know of our commitment to providing the latest products to all customers.
Lathe Machine Details Picture:
Lathe Machine In the Workshop:
Lathe Machine Package Delivery:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
