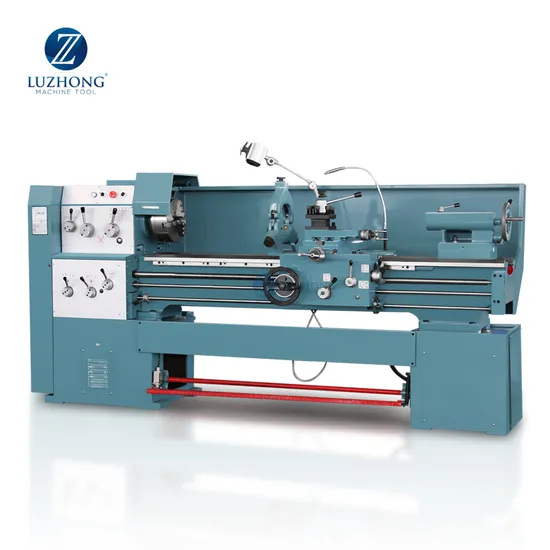

C6150 Torno Mecanico Universal with Price and Specifications Lathe Machine
Basic Info.
Model NO.
C6150
Tool Holder
4 Station Manual Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
C6150 Torno Mecanico Universal Lathe Machine with
Max. Swing Over Bed
500mm
Max.Swing Over Cross Slide
300mm
Max.Processing Length
750/1000//1500/2000mm
Spindle Taper
Mt6
Spindle Speed
40-1400rpm
Spindle Speed Steps
9steps
Spindle Motor
4/5.5/7.5kw
Spindle Bore
52/82mm
Tailstock Taper
Mt5
Tool size
20X20mm
Longitudinal feeds range
0.0832-4.6569mm/r
Cross feeds range
0.048-2.688mm/r
Main motor power
5.5kw
Tailstock quill diameter
65mm
Transport Package
Plywood Case
Specification
2100x1150x1550mm
Trademark
Luzhong Machine Tool
Origin
China
HS Code
8458190000
Production Capacity
500 Sets Per Month
Packaging & Delivery
Package Size
240.00cm * 114.00cm * 180.00cm
Package Gross Weight
1350.000kg
Product Description
C6150 Torno Mecanico Universal Lathe Machine with Price and SpecificationsProduct Description
Detailed Photos
Product Parameters
Product description:
1.Bed rail by super audio quenching and precision grinding.
2.Precision grinding of the main shaft box, low noise.
3.More thread type.
4.Electrical safety performance is good, high reliability.
5.With electromagnetic brake, the color of available options.
Product main technical Specifications:
| Specifications | C6150 | |
| Capacity | Max.Swing over bed | 500mm |
| Max. rotating diameter | 300mm | |
| Center distance | 750,1000,1500,2000mm | |
| Spindle hole | 52mm(82mm) | |
| Spindle | Spindle nose | ISO-C6(C8) |
| Spindle tap | MT6 | |
| Spindle speeds(Number) | 36-1600rpm (12 Steps) | |
| Feed | Metric threads range(Kinds) | 0.5-14mm (18 Kinds) |
| Inch threads range(Kinds) | 2-40/inch (28 Kinds) | |
| Moudle threads range(Kinds) | 0.25-3.5mπ (17 Kinds) | |
| Compound rest travel | 150mm | |
| Cross slide travel | 180mm | |
| Cross-section size of toolshank | 22×22mm2 | |
| Tailstock | Dia.of tailstock sleeve | 75mm |
| Taper of tailstock sleeve | MT5 | |
| Travel of tailstock sleeve | 160mm | |
| Main motor power | 5.5/7.5KW | |
| Machine size (L*W*H mm) | Overall dimensions for750mm | 2100×1150×1550mm |
| Overall dimensions for1000mm | 2350×1150×1550mm | |
| Overall dimensions for1500mm | 2850×1150×1550mm | |
| Overall dimensions for2000mm | 3350×1150×1550mm | |
| Weight(kg) | Weight for 750mm | 1700kg |
| Weight for 1000mm | 1800kg | |
| Weight for 1500mm | 2000kg | |
| Weight for 2000mm | 2200kg | |
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
