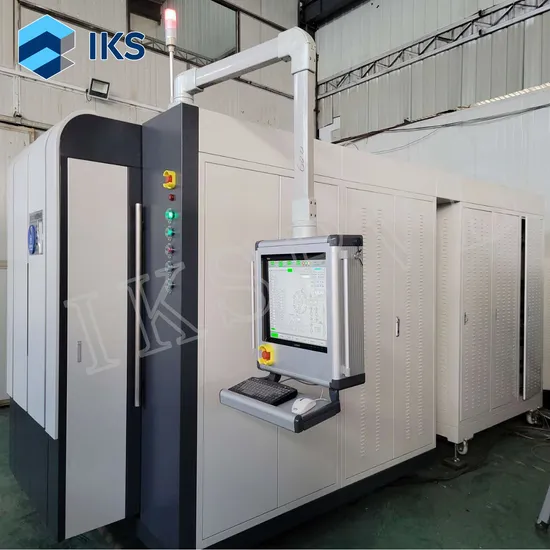

Magnetron Sputtering Coating Machine / Decorative PVD Coating

Product Description

Equipment Brief ZY-1212 decorative coating machine for clock and watchs, it has the advantages of both ion coating and magnetron sputtering,
and the coating layer is very smooth with uniform color, good brightness and strong adhesion. It's suitable for depositing various of color and thickness, high quality and wear resistant decorative films on the surface of watch straps and dials etc. ZY-1212 decorative coating machine integrates vacuum technology, Mid-frequency magnetron sputtering technology, film technology and other technologies, and adopts fully automatic control mode, to ensure simple and reliable operation, high productivity, great efficiency, and stable performance. The machine can deposit IP black, rose gold, IP gold, sapphire blue, champagne gold, dazzling silver, coffee color, colorful, gun black, zirconium gold, rose red and other various colors coating layers.
Equipment Features 1.Good controllability of film thickness and repeatability. The coating layer can easily achieve designed thickness. And it can deposit uniform film on the large surface. 2.Strong adhesion of substrate and the film. 3.It can deposit films of special materials, as well as mixed films and composite films. 4.The electric control system can be controlled manually, semi-automatically or fully-automatic control by PLC. And the machine can run various processes with high reliability.
Equipment Parameters

Vacuum Chamber	φ1200 × H1200	Effective Coating Space	φ850 × H900
Max Diameter of Work-Piece×Quantity	φ150 × 11PCS	Standard Configuration	6Pcs Arc Source + 4 Pairs Mid-Frequency
Technology	Mid-Frequency + ARC Planar Target + Ion Source (Optional)	Target	6pcs Arc Targets, 8pcs Mid-Frequency Magnetron Cylindrical Targets
Standard Coating Color	IP black,rose gold, IP gold, sapphire blue, champagne gold, dazzling silver, coffee color, rainbow, gun black, zirconium gold, rose red and other various colors coating layers.	Power Source	DC inverter power supply, Pulse bias power supply, Mid-Frequency magnetron power supply, DC magnetron power supply
Coating Cycle	0.5~2 Hours/Furnace	Occupation Space	L3300×W2900×H2500MM
Application	Clock , watch, glasses, jewelry, and so on.

Application
Workshop
IKS PVD Company is committed to providing vacuum coating solutions, vacuum coating machines, various vacuum componets and one-stop vacuum coating services. At the same time, the company also has a strong technical team to provide customers with vacuum equipment core technical support and excellent after-sales service.
Please contact us for more details on coating machine configurations and quotations, Thank you!
