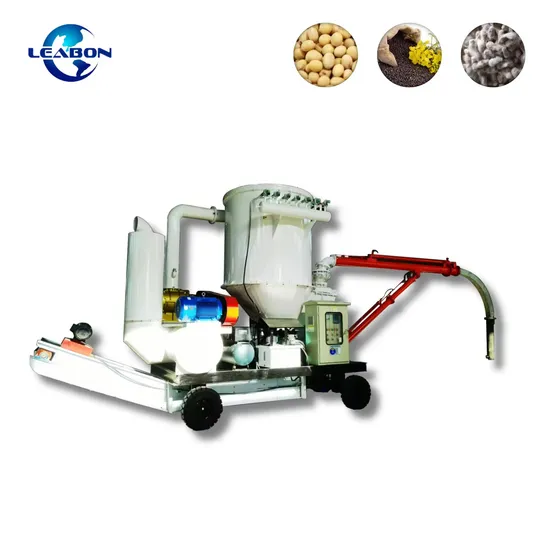

Hot Selling 50t/H Automatic Intelligent Grain Suction Machine for Corn Soybean Wheat

Product Description

Hot Selling 50T/H Automatic Intelligent Grain Suction Machine for Corn Soybean Wheat

Product Description

Product Description - Automatic Suction Machine e
1)Highly intelligent, labor saving, one person can operate.
2)Pulse dust removal; Almost dust-free, higher than environmental requirements.
3)Wireless remote control, operation, self-walking flexible and convenient.
4)Compact structure, reasonable layout, can be adapted to various working environments.
5)Clean thoroughly, no need to clear the warehouse.
6)Suction and unloading of bulk granular materials (e.g. wheat, rice, corn, rapeseed, soybean, cottonseed, feed, granular fertilizer, plastic, cement, etc.). Suitable for farm, station, warehouse, grain processing plant, feed processing plant and other places

Product Parameters
Technical Parameter of - Automatic Intelligent Grain Suction Machine

Model	LB-D50
Capacity	50t/h
Power	37kw
Suction arm length	6.5m
Overall dimension	11000mm*2000mm*3500mm

Detailed Parameter Configuration - Grains Suction Machine

NO	Item Name	Units	Parameter	Note
1	Delivery capacity	t/h	50	Rated condition, full absorption of wheat
2	Energy consumption ratio	kg/kw/h	760
3	Suction main motor power	kw	37	50Hz,380v,IP55 national standard motor
4	Discharge main motor power	kw	55
5	Auxiliary power	kw	15.5
6	Main motor speed	r/min	1480
7	noise	dB(A)	85	10m average distance from the object boundary
8	Exhaust dust	mg/m3	60	China national standard 150mg/m3
9	Wind resistance of the whole machine	kpa	1.25	Wind speed 45m/s
10	The pneumatic system resists external pressure	kpa	70
11	Grain suction arm horizontal length	m	6.5	Horizontal tube joint distance vertical axis
12	Grain suction arm vertical length	m	3	Suction distance from horizontal tube axis
13	Suction beam large arm amplitude change function	m	2	Speed 5m/min traction
14		( ° )	150	Speed 0.6rad/min gear drive
15		( ° )	+30 ,-15
16	Air shut-off capacity	l/r	50	Wear resistant cast iron, rotary impeller type
17	Air shut-off speed	r/min	39
18	Dimensions (length * width * height)	mm	11000*2000*3500	Some adjustments are made according to the actual situation
19	Dust collector type	Pulse dust removal
20	Dust handling mode	Return material
21	Silencing method	Impedance compound muffler
22	Mode of operation	Centralized control/wireless remote control, effective distance greater than 100 meters
23	Circuit control	1. Equipped with four-hole aviation plug, dustproof treatment of electric cabinet, cable in cabinet equipped with line mark. 2, the electrical control box is equipped with soft start (Ning Lang brand), anti-overload protection device, the panel has an operation button. 3, electrical components, the use of Delixi brand products.

Detailed Photos
Othery Type Suction Machine

Model	LBX-15
Maximum throughput(m'/h)	10
Fan power	15KW
Roots fan model (caliber)	125
Discharger Power (kw)	2.2
Feed pipe diameter (mm)	100
Pipe diameter (mm)	100
Inlet and outlet pipe diameter (mm)	100
Overall dimensions (mm)	2080*1148*1800

Model	LB-125
Three leaf Roots fan	Caliber 200mm((including riser, silencer, base)
Fan power	380V,15KW (Including triangle belt, belt wheel, guard)
Chakron cyclone dust removal	2pcs
Discharge	16L closed air discharger (including deceleration motor)
Conduit	4 inch beef hose 20 m (including matching clamp and connecting short pipe)
Movable base	1pc
Electric cabinet	1pc
Feed nozzles	1pc

Raw material and Final Product

Raw Material : Application for conveying different grains raw material, such as : corn, soybean, wheat, barley, rice, sorghum etc.USE Site of Suction Machine : Pneumatic grain suckers are suitable for mechanized operations of loading, unloading, replenishing, unloading, turning over, stacking in farms, docks, stations, large grain depots, etc., as well as bulk, bulk transportation, and bulk unloading in the production process of grain processing, feed processing, and beer brewing industries. Grain suckers can be operated alone or in combination according to the conveying process requirements, or they can form a conveying system with other equipment to meet different operating requirements. They have the characteristics of flexible layout, easy movement, wide operating surface, and large conveying capacity, which can save a lot of manpower and material costs.
Company Profile

Packaging & Shipping

FAQ

Before quote, pls inform us follows information, so then we can suggest a suitable model grain suction machine for you.

Q1:What's your raw material?

Q2: What's the capacity of suction machine you needed?(ton/hour)

Q3:what is the size of the grain suction plot so that we can determine the diameter of the suction port.

Q4: What's the industrial voltage in your country?

Q5:Do you have special requirements for the color of grain suction machine?

Q6:What are your requirements for electrical configuration?
