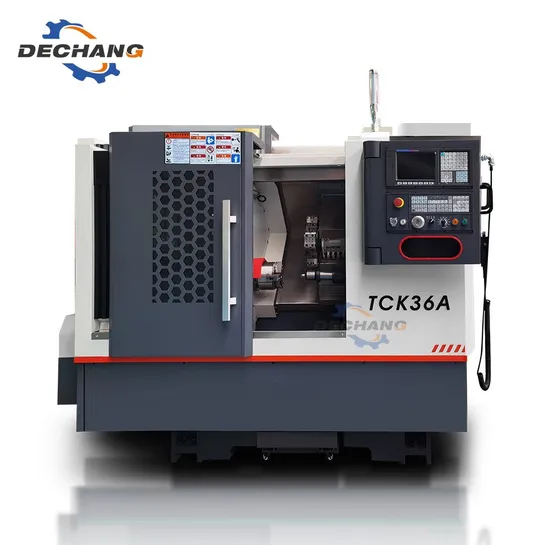

Factory Price CNC Turning Lathe Tck36A Slant Bed CNC Lathe Machine

Factory Price CNC Turning Lathe Tck36A Slant Bed CNC Lathe Machine

US$15,500.00-23,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Tck36A
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Tck36A Slant Bed CNC Lathe Machine
Transport Package
Plywood Case
Trademark
DECHANG
Origin
China
HS Code
8458190000
Production Capacity
500

Packaging & Delivery

Package Size
220.00cm * 160.00cm * 185.00cm
Package Gross Weight
2400.000kg

Product Description

Factory Price CNC Turning Lathe Tck36A Slant Bed CNC Lathe Machine
Product Description
Product features:
Highest accuracy Taiwan linear guide ways
Higher speed spindle unit ,optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Application :
The machine is suitable for automobile, motorcycle, electronics, aerospace, oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.
Main technical specifications:
Specification Unit TCK36A
Max.swing over bed mm 360
Max.swing over cross slide mm 140
Max. Processing length mm 300
Max. Bar capacity mm 41
Max.processing diameter of plate type of workpiece mm 360
Spindle nose type A2-5
Spindle bore mm 48
Spindle speed range r/min 50-4000
Main motor power kw 5.5
Chuck form Hydraulic chuck
Chuck size inch 6
X axis rapid traverse M/min 24
Z axis rapid traverse M/min 24
X axis servo motor torque N.m 6
Z axis servo motor torque N.m 6
X axis travel mm 170
Z axis travel mm 350
Guide rail type linear rail
Tool post type Horizontal 8 station
Tool shank size mm 20x20/dia.25
Tailstock type hydraulic
Tailstock quill dia. mm 65
Tailstock quill travel mm 870
Tailstock quill taper MT4
Total rated power kw 9
Total rated current A 19
Machine weight kg 2400
Machine dimension mm 2200x1600x1850


Detailed Photos
Company Profile
What We Do?
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
Our Machines Application Fields:
1.Aviation industry: 5-axis machining centers, horizontal and gantry machining centers, precision CNC lathes, etc. can be used to process parts such as aircraft wings, fuselages, empennages and engines
2.Railway locomotive manufacturing industry: CNC lathes, vertical and horizontal machining centers, and five-axis machining centers can process high-speed rail locomotive bodies, axles, wheels and other parts
3.Mold manufacturing: high-speed CNC milling machine, high-precision CNC machining center, precision grinding machine can process automotive panel molds, die-casting molds, forming extrusion molds, etc.
4.Power equipment manufacturing industry: For power generation equipment, heavy CNC gantry milling machines, large floor milling machines, large CNC lathes,
In addition, our machine tool products can also be used in weapon manufacturing, electronic information equipment manufacturing, metallurgical equipment manufacturing.

WHY CHOOSE US?
QUALITY COMMITMENT
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates.
SERVICE SUPPORT
The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
Company also provide provide online technical support, voice and video guidance.
Our Facotry
MANUFACTURER CAPABILITY
The company has purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, and the company's machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. Company provide first-class machines to to meet the needs of domestic and foreign customers.
R&D CENTER
Company collected first-rate professionals in domestic machine tool trade and established long-term technical cooperative relations with other famous machine manufactures. Meanwhile, companmy pays more attention to introducing advanced foreign technology, and makes great efforts to achieve technical renovation and develop market oriented highly sophisticated products.
Company provide comprehensive cnc machines and manual machines to global customers.
Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, drawings, and we will provide the most and we will provide the most suitable machine or a comprehensive processing line solution.

After Sales Service
SERVICE SUPPORT
From the moment you become part of the DECHANG, we are fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.
4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost

FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.
