CNC Vertical Internal and External Compound Grinding Machine Tool Mklf28 Series

Product Description

Product Description
Main purposes of the machine tool:

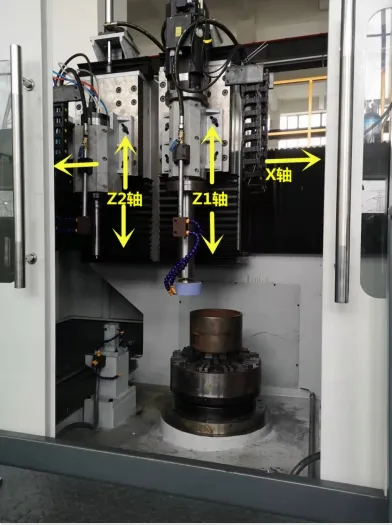

MKLF28-1000 is composed of four axes, of which X1 and X2 axes are transverse feed system, Z1 and Z2 axes are up and down reciprocating system of grinding wheel, and four axis two linkage NC double column compound grinder. Two grinding wheel spindle are all vertical grinding spindle, One of the grinding wheel spindle is used for grinding the inner circle and inner end face; The other grinding wheel spindle is used for grinding the outer circle and outer end face, and the grinding wheel speed has stepless speed regulation function. The grinding cycle is completed automatically (including automatic feed, automatic dressing of grinding wheel, automatic compensation, automatic rough grinding, fine grinding and automatic tool withdrawal).
Processing object:
The machine tool can grind the inner circular hole, step hole, inner end face, outer circle and outer end face of the work piece. Suitable for internal and external machining of short shafts and disk and sleeve parts with a diameter of 600 mm and a length of 500 mm or less.
Product Parameters
Key Technical Parameters for MKLF28-1000 Vertical CNC Composite Grinding Machine

Serial number	Name	Specification
1	Max. Grinding ID	1500mm
2	Max. Grinding OD	1600mm
3	Max. Grinding depth	1000mm
4	Max. Swing diameter	1000mm
5	ID roundness	3μm
6	OD roundness	3μm
7	ID Surface roughness	Ra0.4μm
8	End face flatness	5μm
9	OD/End face surface roughness	Ra0.4μm
10	ID & OD concentracity	5μm

Detailed Photos
Company Profile
Our company offers variety of products in grinding machine which can meet your multifarious demands. Our main products are: CNC high-precision centreless grinding machine; CNC internal and external grinding machine; CNC vertical internal, cylindrical, end face grinding machine; CNC crankshaft grinding machine; CNC crankshaft milling machine; CNC camshaft grinding machine; CNC camshaft milling machine; Multi-function CNC surface grinding machine; Vertical machining center; Vertical gantry type machining Center and so on.At present, these products are mainly used in domestic high-end manufacturing fields such as national defense, research institutes, aerospace, shipbuilding, automobile, mining machinery manufacturing and so on. Users are all over China, and some products are exported to Southeast Asia, Europe and other countries. At present, these products occupy a considerable share in the same industry in China. Some varieties have reached the level of similar foreign products. The product cost performance has obvious competitive advantages at home and abroad.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
