Digital Network RS485 TCP/IP M-Bus Bacnet 0.2s Panel Multifunction Pqm Power Analyzer
Basic Info.
Model NO.
Sfere720
Installation
Direct Connected
Usage
Multi-Functional Energy Meter
Electric Equipment
Three Phase
Theory
Electronic Meter
Power Meter Connection
Terminal
Measured Signal
Pulse Peak
Type
Power Meter
Certification
ISO, CE
Customized
Customized
Phase
Three Phase
Measuring Energy Range
0-99999999
Accuracy Class
0.2s
Output Voltage
AC100V/220V/380V
Frequency
45-65Hz
Working Range
AC/DC 80V~270V
Rated Voltage
AC 100V/380V
Rated Current
AC 1A/ 5A
Operating Humidity Range
(5~95)% (No Gel)
Operating Temperature
-30~80ºC
Storage Temperature
-25ºC~70ºC
Communication
RS-485/Modbus/2-Wire
Relative Humidity
≤93%
Standard
IEC61010-1
Specification
96*96mm
Trademark
ELECNOVA
Origin
China
HS Code
8543109990
Production Capacity
20000PCS/Per Month
Packaging & Delivery
Package Size
11.00cm * 9.00cm * 9.00cm
Package Gross Weight
0.500kg
Product Description

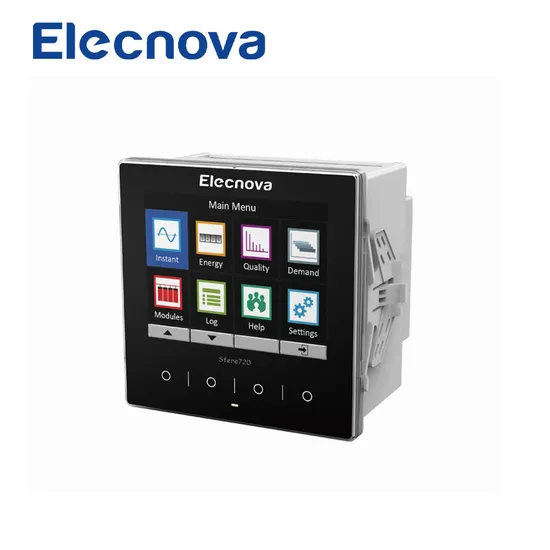

Digital network RS485 TCP/IP M-bus BACnet 0.2S panel multifunction PQM power analyzerSfere720 is equipped with electrical variable measurement, energy metering and power quality analysis functions. Sfere720 also can be extended with I/O modules for monitoring and controlling equipment at field, realizing system integration with different smart electricity distribution system and energy management system, and sharing monitoring data and energy data.
Product Description
Display Mode: TFT
Mobdus Interface: RS485
Energy Accuracy: 0.2S
Netwoks: TN, TT, IT networks
Voltage Accuracy:0.1%
Current: 0.1%
Harmonics: up to 63rd
iP Degree: Front IP64, Rear IP20
Technical Specifications
| Display Mode | Sfere 720: LCD, Sfere720:TFT | |
| V/A | 0.002 | |
| P/Q/S/PF | 0.002 | |
| Accuracy | F | ±0.01Hz |
| ±kWh | Class 0.2S | |
| ±kvar | Class 2 | |
| Rated value | AC 100V/ 380V | |
| Overload | Continuous: 1.2Vn Instantaneous: 2Vn/1010s | |
| Voltage Input | Burden | ≤0.1VA(per phase) |
| Impedance | ≥1.7MΩ | |
| Frequency | 45Hz~65Hz | |
| Rated value | AC 1A/5A | |
| Overload | Continuous: 1.2In Instantaneous: 2In/5s | |
| Current Input | Burden | ≤0.2VA(per phase) |
| Impedance | ≤20mΩ | |
| Auxiliary Supply | Working range | AC 80~270V 50/60Hz, DC 100~350V |
| Consumption | ≤5VA | |
| Communication Port | RS485, Modbus-RTU, 2-wire, up to 38.4kbps | |
| Energy Pulse Output | 1 photocoupler output, pulse width(80±20%)ms | |
| Digital Input | 2 AC wet contact inputs, Isolation: 5kVAC | |
| Relay Output | 2 relay outputs, contact rated at AC 5A/250V or DC 5A/30V, Isolation: 2kVAC | |
| Operating temperature | -25ºC~70ºC | |
| Storage temperature | -30ºC~80ºC | |
| Environment | Relative humidity | ≤93% |
| Altitude | ≤2500m | |
| Insulation | ≥2kVAC | |
| IP Degree | Front IP64, Rear IP20 |
