Sugarcane Tiller Cultivator Agricultural Tiller Cultivator
Basic Info.
Model NO.
3ZP
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Vertical Shaft
Certification
ISO
Color
Orange
Warranty
1 Year
Name
Sugarcane Cultivator
Row Number
2
Row Space
120-180cm
Matched Power
100HP
Weight
800kg
Dimension
1500*2200*1350mm
Transport Package
Iron Crate
Specification
150*220*135cm
Trademark
no
Origin
China
HS Code
346546
Production Capacity
50000
Product Description
sugarcane tiller cultivator agricultural tiller cultivatorThis machine can complete the mechanized joint operation of the field management functions such as crushing soil, weeding, fertilizing, and cultivating soil at the same time, which is conducive to the growth of sugarcane root system. Moreover, it can resist drought and conserve moisture, prevent lodging, dramatically improve work efficiency, reduce cost and labor intensity.It is suitable for sugarcane field management in plains and hilly areas with small slope.
Features It is composed of tractors with more than 80hp as power, including suspension,transmission box assembly, cutter roller shaft transmission box assembly, fertilizer organization assembly, soil plough assembly,rotary blade roller and other components.Sugarcane field working are completed simultaneously, such as crushing soil, weeding,fertilizing, and cultivating soil,which can significantly reduce labor intensity and improve working efficiency.

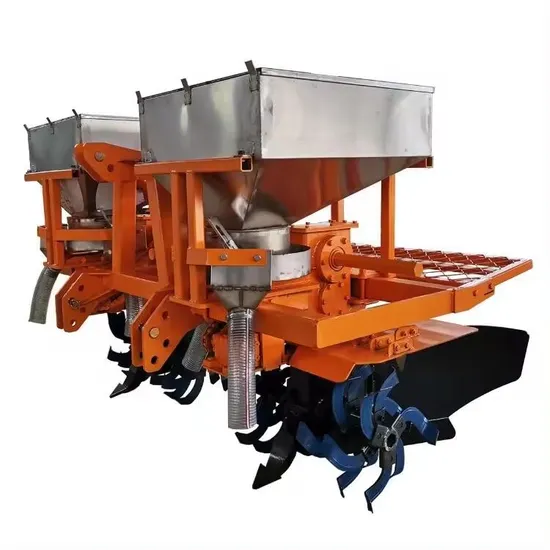

Sugarcane cultivator main structure
1. Frame assembly 2. Transmission box of rotary
3. Main transmission box
4. Fertilizer tank
5. tiller roller
6. Fender
7. Ridging plate
| Model | 3ZP-1800 | 3ZP-1400 |
| Connecting way | Three-point suspension | Three-point suspension |
| Number of row in one operation | 2 row | 2 row |
| Adjustable range of row spacing | 1200-1800mm | 1150-1400mm |
| Mate power | ≥73.5kw | ≥73.5kw |
| Soil cultivation method | Rotary tillage | Rotary tillage |
| Number of rotary blade | 4x12 | 4x9 |
| Capacity of fertilizer tank | 175L*2 | 175L*2 |
| Oversize | 1500×2200×1350mm | 1500×1450×1250mm |
| Weight | 870kg | 800kg |
