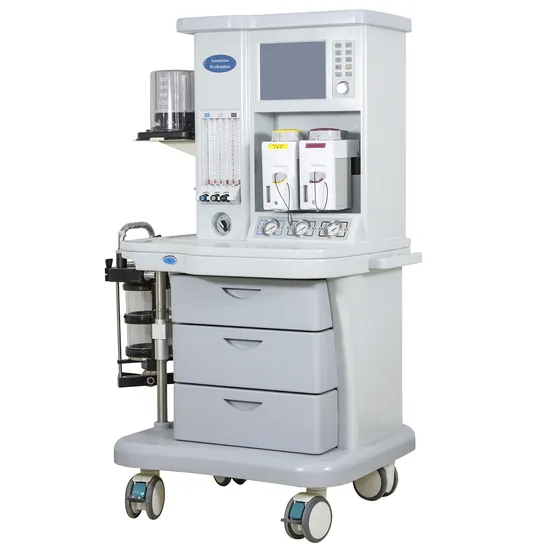

Adult′s Anesthesia Machine with Two Poor-Fill Vaporizer

Product Description

Product Description Circulating Closed Anesthesia Machine
The device supplies the patient with a low flow of anesthesia mixed gas in a one-way flow through the outgassing valve. Exhaled air enters the CO2 absorber through the expiratory valve for reuse. Its structure is mainly composed of oxygen supply and nitrous oxide device, gas flow meter, evaporator, CO2 absorber; one-way valve, breathing pipeline, outgas valve, storage bag, etc. Modern anesthesia machines are also equipped with ventilation. Airway pressure, expiratory flow, end-tidal CO2 concentration, inhalation anesthetic concentration, oxygen concentration monitor, hypoxia alarm and hypoxia-nitrous oxide automatic protection device.
Its structural principle can be divided into: gas supply and delivery system, anesthetic gas vaporizer, breathing circuit, anesthesia ventilator, safety monitoring system and residual gas removal system.
Product Parameters

Model No.	GSM-IIIC
Material	Metal
Anesthesia Type	Closed Circuit
Gas Sourse	Air,O2,N2O
Feature	Low air source alarm, high pressure limit, low pressure protection, power failure alarm
Advantage	24 Hours Whole Parameter Trending Curve
Component	Rack,External circuit,vaporizer,flow meter,monitor,Anesthesia Ventilator System
Vaporizer	180/250 ml Sevoflurane, Isoflurane, Optional (Integrated design, integrated circuit, high temperature resistance of 134 degrees)
Power Source	Electricity, 220V+/-10%, 50Hz+/-1%
Breathing Mode	IPPV,SIGH,SIMV/F/2,PEEP,SIPPV
Tidal Volume	30-15000 ml
Respiratory Rate	4-60 bpm
I/E Ratio	3:1 - 1:4 Adjustable
Upper Airway Pressure	2-6 Kpa
Lower Airway Pressure	0.6-2 Kpa
Display	10.4 Inch Colorful TFT High-Luminance Large Display
Working Mode	Closed System,Semi-Closed System,Semi-Open System (Manual /Auto)
Oxygen Flush	35L/ MIN-75L/MIN
Monitor Parameter	Tidal Volume,Respiratory Rate,I/E Ratio, Peak Airway Pressure,Airway Pressure Waveform
Loop	Integrated design, integrated circuit, high temperature resistance of 134 degrees

Certifications
Company Profile Guangdong HongYang Medical Equipment Co., Ltd (Hongyang) is the international department of factory Beijing HongRunDa Sci-Tech Development Co., Ltd(HRD). HRD was founded in 1997, is a high-tech enterprise located in Beijing Zhongguancun High-Tech Development Zone in China. With dozens of senior and middle-level R& D managers, complete production facilities and strong after-sales service team.HongYang takes professional technology as the leading, focusing on product development, practical implementation and service first, aiming to help medical institutions build perfect medical equipment systems, so that patients can get better services.As manufacturer, our researchers and engineers have developed series of Anesthesia Machine and Automatic Biochemistry Analyzers, Ventilators,Patient Monitor, etc...Our company owns the intellectual property rights of all the above-meditioned products, all of our products have been past SFDA examination, got ISO13485, ISO9001 and some products already got CE certificates. Our quality has reached the top level among the same kind of products in China.Since 2007, we have been exporting to Europe, America, Africa, Southeast Asia and the Middle East, where we have many distributors and hospital customers. We participated in the world′s largest medical fair in Germany, the second largest medical fair in China, the CMEF in Dubai, and the American Medical Fair to showcase our products and communicate with customers around the world. At the same time, we have launched a corporate cooperation project in Germany to certify and register German anaesthesia machines for international cooperation and service. We will continue to look for foreign agents and establish sales networks, and hope to cooperate with more foreign manufacturers.We have been adhering to the belief of making a contribution to human health and devoting ourselves to the medical industry. Believe we can do well together!

Our Advantages 1.24 Years Research and Production Experience of Medical Equipment
2.All research team all graduated from Tsinghua University (THU)
3.Every Machine Has a Strict Quality Control And Actual Operate Before Shipping
4.Our Machines's Unique Feature: 24 Hours Whole Parameter Trending Curve and High pressure limit alarm (Supper Safety and Stable)
