High-Performance Security Radar for Perimeter Protection and Alarm 24GHz

Product Description

Introducing the MMWave Ground Security Radar, your quintessential solution for Long Range Intrusion Detection. This cutting-edge device offers unmatched perimeter protection through sophisticated radar technology.
The TXPR200 radar stands out as a premier perimeter intrusion detection sensor, engineered to perfection with a MIMO array antenna design complemented by energy-efficient FMCW technologies. This smart radar automatically alerts you during intrusion events, providing precise data on the distance, angle, and speed of the intruder. Leveraging advanced machine learning capabilities, the TXPR200 effortlessly distinguishes between walkers, vehicles, and animals, effectively minimizing false alarms caused by trees, insects, and small animals.

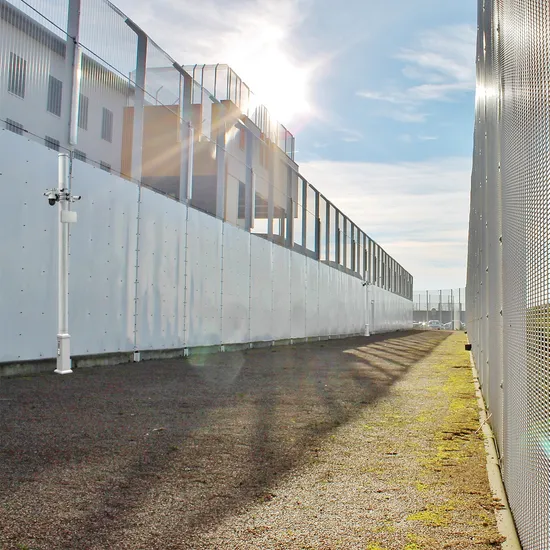

Perimeter Surveillance Radar: A state-of-the-art solution for sophisticated security needs.
Our product boasts a MIMO technology-based monopulse, equipped with low power FMCW radar capabilities. It delivers an exceptional probability of detection, offering precise location and speed information of intrusions-even for targets moving at ultra low speeds. By harnessing smart algorithms and deep learning, it adeptly filters out common false alarms triggered by environmental factors such as trees and bushes. This versatile radar can function independently or seamlessly integrate into third-party platforms for enhanced security solutions.
Features: Remarkable attributes that set our radar apart.
MIMO-based technology: Ensuring superior performance and reliability. High detection probability and low false alarm rates: Maximizing accuracy while minimizing disruptions. Smart target classification between people and vehicles: Distinguish with unparalleled precision. Long detection range, quick response time, strong anti-interference ability: Guaranteeing optimal functionality under various conditions. Easy to use and to integrate: User-friendly design meets seamless adaptability. 24/7 automatic running in all weather conditions: Unyielding protection, come rain or shine. Specifications: Technical details that empower our high-performance radar.

Radar type	FMCW
Frequency Band	24GHz
Scan Rate	10Hz
Human Detection Range	220m (722ft) lateral movement
Detectable Target Velocity	0.05-30m/s (0.16-98.4ft/s)
Effective Field of View (Horizontal)	±10°
Effective field of view (Vertical)	±6.5°
Simutaneous Tracking	32
Distance Accuracy	±1m (±3.3ft)
Angle Accuracy	±1°
Range Resolution	1.5m (4.9ft)
Alarm Output	NO/NC Relay *2;GPIO *2
Operating System	Built-in Linux
Communication Interface	Ethernet & RS485
Power Supply	12V DC /POE
Power Consumption	8W
Operating Temperature	-40 ~ 70ºC (-40 ~ 158ºF)
External Dimension of Radar Unit	300*130*50mm (11.8*5.1*2in)
Weight of the Radar Unit (Approx.)	1.5kg (3.3lb)
Installation Height	1.5 ~ 4m (4.9 ~ 13ft)
