Sy205c Amphibious Excavator Geninue Quality River Manufacturer

Product Description

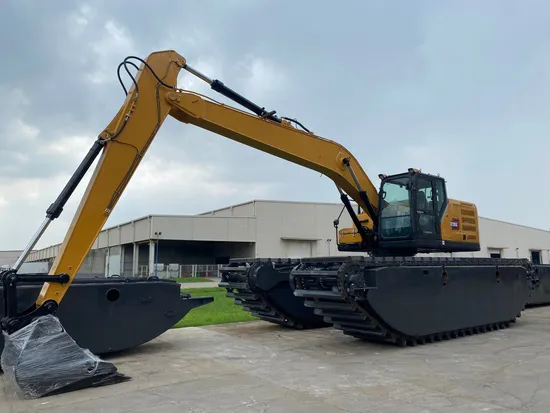

SY205C Amphibious Excavator Geninue Quality River Manufacturer

Technical Specification of SY205C AMPHIBIOUS EXCAVATOR
Model	Unit	Value
Operating weight	Kg	30500
Boom and stick length	mm	13000
Bucket capacity	m³	0.5
Working scope	Unit	Value
Max digging radius	mm	14360
Max digging height	mm	14690
Max digging depth	mm	9750
Max unloading height	mm	11775
Min turning radius	mm	4180
Main performance	Unit	Value
Driving speed	km/h	4~2.3(Max/min.)
Swing speed	r/min	11
Gradeability	%	30
Ground specific pressure	kPa	22.8
Bucket digging force	kN	120
Stick digging force	kN	85
Travel motor	Unit	Value
Motor model	/	TM60
Output torque	N.m(kgf.m)	67914(6930)
Continuous pressure	MPa(kgf/cm2)	34.3(350)
Engine	Unit	Value
Engine model	ISUZUJAPAN	4M50
Rated power/speed	Kw/rpm	118/2000
Max torque/speed	Nm/rpm	580/1600
Displacement	L	4.9
Hydraulic system	Unit	Value
Main pump	/	2 Piston pumps
Main pump rated flow	L/min	/
Main safety valve pressure	MPa	/
Walking system pressure	MPa	35
Swing system pressure	MPa	26
Pilot system pressure	MPa	/
Oil capacity	Unit	Value
Fuel tank volume	L	340
Hydraulic oil tank volume	L	239
Engine oil capacity	L	22
Dimensions	Unit	Value
Overall machine length	mm	13000
Overall machine width without side pontoons	mm	4500
Overall machine height(to boom)	mm	4020
Turntable width	mm	2875
Single pontoon length	mm	8140
Single pontoon width	mm	1500
Single pontoon height	mm	1800
pontoon overall width	mm	4500
Pontoon landed length	mm	3400
Track gauge	mm	2990
Distance between sprocket and idler	mm	7120
Counterweight ground clearance	mm	1995
Min ground clearance	mm	1210
Max turning radius of the tail	mm	2900
Optional	Unit	Value
Side pontoon length	mm	7000
Side pontoon width	mm	1250
Side pontoon height	mm	1000
Positioning piles	PCS	4
The length of Positioning piles	mm	6000

Usage of River SY205C Amphibious Excavator
SY205C amphibious excavators made by RIVER is a Tier IV Emission Standard Machine, which are primarily used for dredging, land reclamation, swamp and wetland construction, waterway clearing, and environmental restoration projects.
This amphibious excavator comes with an 11-meter extended arm. However, we can customize the extension length to meet your specific requirements, which will alter the digging range, the long reach front can be 11 meters, 13 meters, 15 meters or even longer. If you have any customization needs, please contact us, and we will provide you with a comprehensive solution! Main Application of SY205C Amphibious Excavator
1. Wetland Restoration: Ideal for restoring marshy areas, removing invasive species, and reshaping terrain.
2. Dredging Operations: Efficiently clears sediment from rivers, lakes, and ponds, reaching inaccessible areas.
3. Aquaculture Construction: Essential for building ponds, creating access channels, and installing aquaculture infrastructure.
4. Flood Control: Crucial in managing water levels, clearing debris, and reinforcing embankments during flood events.
5. Environmental Remediation: Safely removes contaminated soil and debris from water bodies in polluted sites.
The Supplying Range of Swamp Buggy
We offer a range of models and brands of amphibious excavators spanning from 5 to 50 tons, along with specialized amphibious undercarriage compatible with excavators within the same weight range. Additionally, if you require modifications for a second-hand excavator, feel free to reach out to us for tailored solutions.
The Advantage of Lightweight Design Pontoon Undercarriage

WHY CHOOSE RIVER?
1. The Key Components for Fabricating Amphibious Undercarriage
2. How To Select Suitable Attachment for Amphibious Excavator?
We offer optional side pontoons and positioning piles, allowing customers to choose different equipment based on their specific project needs. This significantly enhances the flexibility and scalability of their operations. With over 20 years of experience in river dredging, river's amphibious excavator have been field-tested by thousands of customers and hundreds of projects, ensuring reliable support for your construction projects.
3. Our Cooperated Excavator Brands
4. The Production Process of Fabricating Amphibious Undercarriage
5. Cooperation with Overseas Clients
