Kraft Paper Making Machine and Carton Paper Making Machine

Product Description

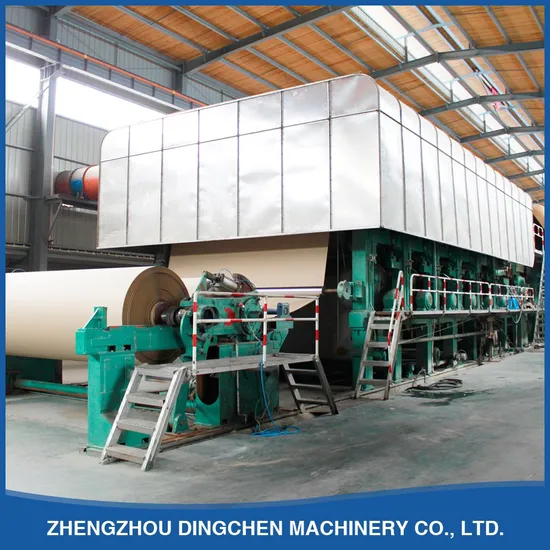

Kraft Paper making machine and Carton Paper making machine

Technical parameters of high profitable production line for 3800mm double wire kraft fluting paper machinery:

Raw material	waste paper,wood pulp board, waste paper
Finished paper	kraft fluting paper
Net paper Width	3800mm
Wire width	4200mm
Paper weight	110-150g/m2
Capacity	100t/d
Working speed	150-200m/min
Drive mode	AC transmission division
Design speed	250m/min
Rail gauge	4800mm

Main Structure of high profitable production line for 3800mm double wire kraft fluting paper machinery:
1. Wire part
Fourdrinier wire design,wire table length 18m,frame welded by #45 steel plate,covered by stainless steel. With 1 set open flow box,made by stainless steel,with double evener rolls.
2. Press part
4 pcs Blind press roll 1350mm×4200mm×4800mm,rubber shore hardness 96ºC±2, with pneumatic pressure device
3. Dryer part
22 pcs Dia.1800mm×4200mm×4800mm alloy dryer cylinder with 36pcs of blade.
4.Sizing part
Inclined type sizing machine,top roll 1000mm×4200mm×4800mm,imitation stone roll. bottom roll 1005mm×4200mm×4800mm,rubber roll.
5.Sequencing
wire part + press part + 14pcs dryer can + sizing machine + 8pcs dryer can+QCS scanner + winding machine
6. Winding part
1set horizontal pneumatic winding machine,winding drum 1100mm×4200mm×4800mm
7.rewinding part:Frame structure rewinding machine
Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure screen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.)C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)
Technical Advantage1.Experienced producing team2.Advanced technological strengthProduct Advantage1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
