18" Mixing Mill for Rubber (YADONG)

Product Description

Application:
Open mixing mill (mill for rubber) referred to the mill or mixing machine, also known astwin-roll kneader. Placed by two levels and different linear velocity relative rotation of theroller, rubber raw materials cut, squeeze its plasticizing, mixing, made to meet therequirements of the production and processing blanks.
Structure:
This equipment is consist of Roll, Bearing, Frame, Crossbeam, Driver, The device for regulating the roll gap, Safety device and brake, The device for regulating the temperature, Lubricator etc.
Working Process:
Two roller mill (roll) at different speeds (struts. Velocity. Configfile The Velocity) is the relative rotation, the rubber is added to the roller, roller squeeze, due to friction (various friction) and adhesion(coherent force) the role of being drawn into the gap of the tworollers (roll gap), the plastic material in the gap are strongly squeezed (squzze) and shear (shear), so as to achieve the purpose of processing plastic materials. Discharged fromthe roll gap blanks coated ("rolling around) two roller surface velocity and temperature differences in return between the two rollers on a roller, so repeatedly, to complete mixing(milling) role.
Technical Model:

Item Model	Mixing Mill for rubber	XK-160	XK-250	XK-360	XK-400	XK-450	XK-550	XK-560	XK-610	XK-660	XK-710
	Rubber sheeting machine	--	--	--	XKY-400	XKY-450	XKY-550	--	XKY-610	XKY-660	XKY-710
Roll diameter	(mm)	160	250	360	400	450	550	560/510	610	660	710
Roll working length	(mm)	320	620	900	1000	1200	1500	1530	1930	2130	2200
Front roll linear speed of Mixing mill	(m/min)	9	16.3	16.7	18.65	21.8	22.5	26.4	27.3	28	31.9
Front roll linear speed of Sheeting machine	(m/min)	--	--	--	21.9	25.6	31.7	--	30	31.6 30.5	30.26
Speed ratio of rolls	Mixing mill	1: 1.35	1: 1.1	1: 1.25	1: 1.27	1: 1.27	1: 1.2	1: 1.2	1: 1.2	1: 1.24	1: 1.51
	Sheeting mill	--	--	--	1: 1.08	1: 1.08	1: 1.09	--	1: 1.09	1: 1.09 1: 1.13	1: 1.09
Max roll space	mm	4.5	8	10	10	12	16	15	15	15	15
Compound feeding capacity	kg	1-2	10-15	2--25	18-35	50	50-65	50-65	140	165	190
Motor power	kw	5.5	18.5	30	45	55	110	90	160	185/250	280
Dimensions	mm	1133*920*1394	2722*1115*1345	4200*1780*1855	4471*1850*1855	5405*1740*1790	6646*2736*2105	6270*2282*2000	6575*2910*1800	7280*3400*2530	8185*3910*2270
Gross weight	Ton	2	3.2	6.5	8.3	11.4	22	22.5	44	49	59

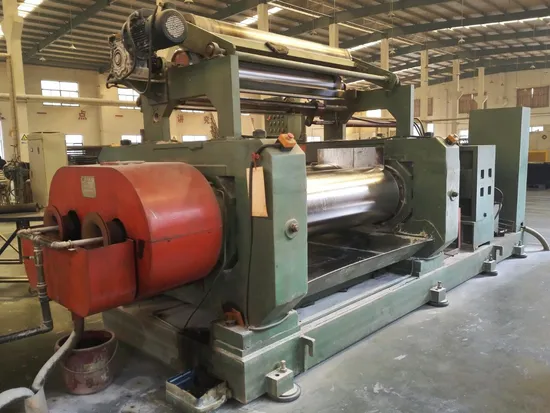

Machine Overview:
