HY-550-12-1510 Single needle different ruffling abutted seam car seat heavy duty sewing machine

Product Description

Walking foot leather industrial sewing machine, special sewing machine
HY-550-12-1510 | Program control, different ruffling, abutted seam sewing machine

Model No.	HY-550-12-1510
Feeding system	Alternating presser foot, feed dog and needle feeding
Max sewing speed	2000 s.p.m
Shuttle diameter	Ф28mm
Applied needle	DP×17 #18-#23
Max stitch length	9mm
Max alternating presser foot	6.5mm
Max presser foot lifting height	16mm
Auto trimming	√
Auto oil system	√
Auto back tacking	√
Presser foot lifting height by air	√
DL function	√
Touching screen control	√
Operation space	255×103mm

Product Description:
1. It can set the ruffling density for two layers on the screen, it realized the standardization of ruffling density when the two layers material are stitched together, the upper and lower layers can be ruffled at the same time or the upper and lower layers can be ruffled separately, so that achieve the standardization of ruffling density.
2. When processing non-padded interiors, the abutted seam sewing and wrinkle operations can be completed in one step.
3. The functions of auto back tacking, pneumatic presser foot lifting, adjusting instantaneously internal and external presser foot alternating amount make the daily sewing easier and more efficient.
Typical Field of Application:
Ruffling sewing process for soft furniture, car seat, office chair and etc.
Product Advantages

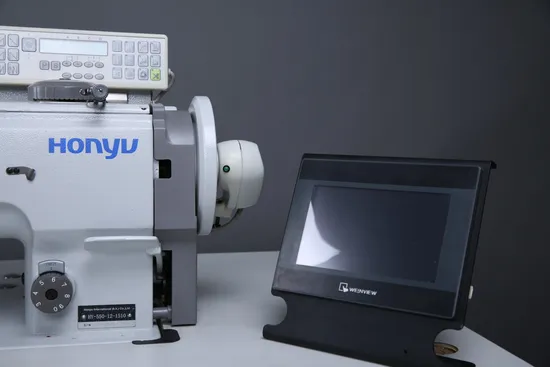

Operation control Screen:
1.Touch control panel with intergrated SD card and USB port guanteantees an intuitive operation.
2.Incorporating the advantages of lock stitching technology,the two larges of fabrics can be wrinkled evenly at the same time.
Wrinkle mode :
1.Through its ruffling device and program controlling,the sewing machine can be set at differenr sewing sections
(1).Both upper layer and lower layer are wrinkle-free.
(2).Both upper layer and lower layer are wrinkled at the same time,and the wrinkle density of the upper layer and the lower layer is the same or different.
2.It can achieve the standardization of ruffling density.
