Lab Scale Electrostatic Spinning Machine

Product Description

Product Description

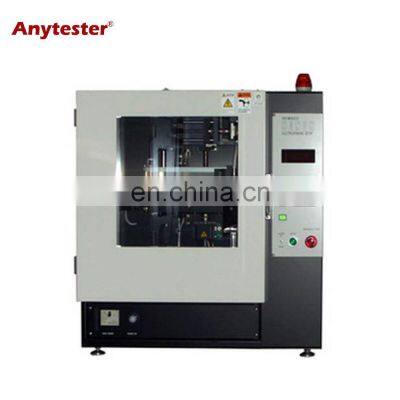

Product DescriptionAT234B Electrostatic Spinning Machine can be used to make nowoven fabric of 210×297mm (A4 paper size) in size, to make namofibers of various materials, such as, polymer and ceramics and to make various namofibers, such as, with smooth surface, porous surface or globular by electrostatic spinning. With optional accessories, it can also be used to make orientation-arrange namofibers. Features 1. Temperature and Humidity Controlling System: Infrared heating system for controlling temperature and automatic temperature controlling with ultrasonic or laser humidifier and electronic cooling dehumidifier (except AT234BS);2. Adjustable positive high-voltage power source, overcurrent and overvoltage protection and wide output pulse;3. Nozzle movement system: High-precision screw rod, grating scale feedback control with automatic position compensation, rapid response and delicate reversing;4. Various optional nozzle structures and collecting devices selectable to meet different requirements;5. Secure and reliable motor, excellent stability, low noise; PLC direct controls rotation speed and digit display.Specification ModelAT234BSAT234BEAT234BMAT234BFPotential customerLabLab/EnterpriseMedical enterpriseFactoryTemperature controlling system---RT~80℃Infrared heat, rapid heat, high temperature accuracyHumidity controlling system---Automatic humidity control, ultrasonic or laser humidifier; electronic condensing humidifier;With current and voltage protection, wide output and adjustable voltageVoltage controlling systemPositive high-voltage power source DC 0~30KVinstant power: 100W~60KWOutput pulse width:1us~50usWith current and voltage protection, wide output pulse and adjustable voltageFlow controlling systemMicro injecting pump0.1~600ml/hApplicable injectors: 10ml injector 0.1~300ml/h20ml injector 0.1~400ml/h30ml injector 0.1~600ml/h---Flow controlling systemSpecialized constant-flow pump---OptionalOptional0~2500ml/minParts contacting with liquid are made of stainless steel and PTFE, high efficiency and maintenance-free, suitable for transporting various liquidsNozzle movement systemSingle-axis for single collecting drumSpeed: 0~500mm/sEffective stroke: 150mmAccuracy<5umX-Y bi-axisSpeed: 0~500mm/sEffective stroke: 150*150mmAccuracy<5umX-Y-Z tri-axisSpeed: 0~500mm/sEffective stroke: 150*150*150mmAccuracy<5umNozzle structureClip-type nozzle, simple and practicalOnly need to clean the metal parts by direct immerging them into solvent to cleanWhen replace spinning solution, only need to replace injector, plastic tube, metal connector and injecting needleMulti-hole nozzleSuitable for materials of wide viscosity range;Carry out spinning at lower voltage Filament collecting deviceNormal motor with reducer; rotating speed 320rpm/min, tooth-embed separation structure with built-in plastic cushion and whole body made of aluminum alloyHigh stability, low noise, secure and reliable; PLC direct control rotating speed, digit display, variable speed and real-timely adjustableHigh speed motor with rotating speed 3000rpm/minImported steel balls bearing makes the service life of the motor up to 10000hourHigh rotation speed, long service life, large torque, low temperature and noise, stable running and convenient to use; PLC direct control rotating speed, digit display, variable speed and real-timely adjustableMechanical StructureControl moduleButton controlPC control with built-in PLC and 7-inch industrial PCCollecting moduleRotary collecting drum, suitable for making nonwoven fabricAdjust the rotation speed to make nonwoven fabric at low speed or oriented fibers at high speedCollecting area: approx.1300cm2Rotation speed: approx.63~320rpm/minCollecting drum size: ¢200×200mm or ¢200×300mmShell structureCold-roll steel sheet with surface spraying plastics and insulation film304 stainless steel structure with insulation lining304 stainless steel structure with no dead angle design of body and insulation lining304 stainless steel structure with insulation liningPower supplyAC220V 50Hz, 2500WDimensions800×450×840mm1200×700×900mm800×450×840mm1200×700×900mm
