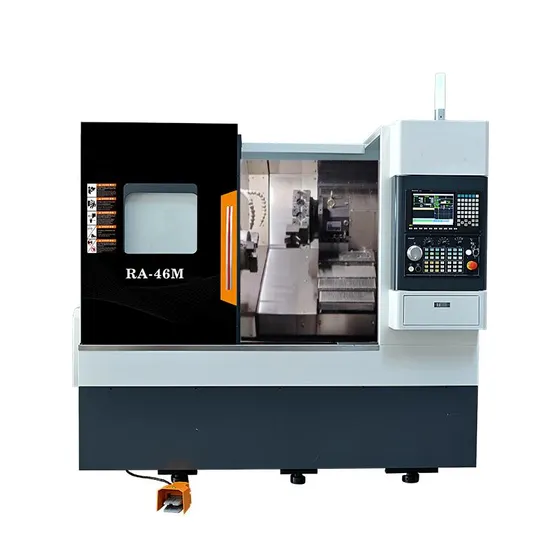

Multi-Functional Slant Bed CNC Turning Milling Lathe Machine Center for Alloys and Soft Metals

Product Description

Multi-Functional Slant Bed CNC Turning Milling Lathe Machine Center for Alloys and Soft Metals
Product Description

Processing Capability			Unit	RA-508M
Processing Capability	Maximum bed swivel diameter		mm	Φ550
	Maximum machining diameter		mm	Φ330
	Maximum machining diameter on the tool holder		mm	Φ230
	Maximum processing length		mm	470
	Maximum bar through-hole diameter		mm	Φ52
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-6
	Spindle through-hole diameter		mm	Φ65
	Maximum spindle speed		rpm	4000
	Hydraulic cylinders/chucks		Inch	8''
Axis feed	Axis travel	X-Axis	mm	220
		Z-Axis	mm	550
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
	Rail Type		/	Linear track 45 (ball)
Turret	Number of tool positions		pcs	BMT55-12T
	OD tool holder specifications		mm	25x25
	I.D. Tool Holder Specifications		mm	Φ40
Tailstock	Hard rail as standard		/	Hydraulic Programmable
	Maximum travel of tailstock rail		mm	550
	Tailstock Sleeve Taper		mm	Morse #5
	Tailstock Sleeve Diameter		mm	Φ80
	Tailstock sleeve travel		mm	100

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Detailed Photos
Control System
Anoher Advantages
• Immerse yourself in the zenith of precision and performance within our cutting-edge production environment. Carefully designed to deliver exceptional processing conditions and outstanding results, it promises an unmatched standard of excellence.
Our advanced imported equipment lineup, which includes horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines, is meticulously engineered to ensure extraordinary workpiece precision. This leads to significantly improved assembly accuracy and prolongs performance longevity, ensuring your operations flow seamlessly and efficiently.
• Cutting-Edge Detection Techniques
Using advanced laser technology, we meticulously test and calibrate positioning accuracy, ensuring adherence to the rigorous German VDI3411 inspection standards, consisting of 5 comprehensive tests per standard.
Every machine tool undergoes stringent processing tests before departing our factory, ensuring they surpass actual processing accuracy standards and provide you with a product that is both reliable and superior.
Product sample
• Unlock exceptional efficiency with our Automated 4-Axis CNC Drilling Milling Center. This avant-garde vertical machine combines state-of-the-art milling, drilling, and tapping functions to revolutionize both productivity and precision.
• Master precision with our CNC machine, expertly designed to handle a diverse range of materials including aluminum, steel, copper, and various non-metal profiles. Achieve remarkable craftsmanship and exquisite detail in every venture.
• Boost your production capabilities across diverse industries, from 3C electronics and rail transportation to aerospace and linear module guide rails, with our versatile CNC machining solutions. Our trailblazing technology ensures unmatched adaptability and performance.
Packaging & Shipping
•Highly Protective: Our cutting-edge packaging solutions are meticulously designed to keep the Vertical CNC Drilling Machine Center impeccably safe and secure throughout its journey. Prioritizing robust protection, we proactively guard against potential damage, offering you complete peace of mind while maintaining the product's flawless integrity.
•Structural Stability: Ingeniously engineered, our packaging maintains the machine's structural stability at every phase. Each component is securely fastened, ensuring the machine arrives in pristine condition, ready for immediate operation with zero hassle.
•Environmentally Friendly and Recyclable: Reflecting our unwavering commitment to sustainability, we utilize packaging materials that are both highly durable and environmentally friendly. Our fully recyclable solutions dramatically reduce environmental impact, beautifully balancing robust protection with our responsible dedication to planetary stewardship.
Professional Team
FAQ
1. What are the Payment Terms?
A: We graciously accept T/T payments, ensuring a seamless transaction process. An initial deposit of 40% is required upon ordering, with the remaining 60% balance due before shipment, safeguarding both parties' interests.
2. What are your trade terms?
A: Our trade terms, including FOB, CFR, and CIF, provide you with unparalleled flexibility to choose the option that perfectly aligns with your preferences and shipping needs.
3. When is the delivery time?
A: Our standard Vertical CNC Drilling Machine Center is typically ready for delivery within an efficient 30-day timeframe. For custom or specialized machinery, please note that additional time may be required. We encourage timely order placement in alignment with our delivery schedule to ensure optimal planning.
4. What is your minimum order quantity and warranty?
A: We proudly offer a minimum order quantity of just one set, demonstrating our commitment to serving all customer needs. Our extensive one-year warranty is a testament to the quality and reliability of our machinery.
5. How are the machines packaged?
A: Each machine is expertly and meticulously packed in a robust wooden case, ensuring it arrives at your doorstep in pristine condition, ready for immediate use.
6. How can I choose the most suitable machines?
A: Share your specifications with us, and we will diligently recommend the most suitable model tailored to your exact needs. Alternatively, you can personally select the precise model that meets your requirements.
Alternatively, you may provide us with your product drawings, and our expert team will determine the optimal machine configuration to fulfill your production objectives.
