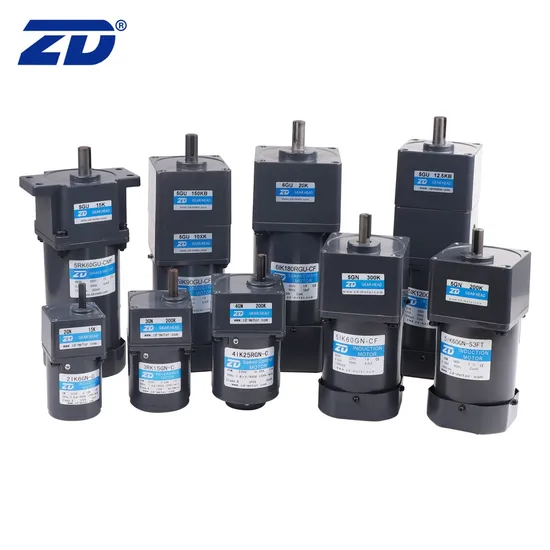

ZD 110V/220V/380V/415V 6W-200W 60mm-104mm 2IK,3IK,4IK,5Ik,6Ik Series Square Mount Right Angle Single Phase Three Phase Micro Electric Induction AC Gear Motor
| US$30.00-150.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
2IK/3IK/4IK/5IK/6IK
Number of Stator
Three-Phase
Function
Driving
Casing Protection
Closed Type
Number of Poles
2-4
Starting Mode
Direct on-line Starting
Brand
ZD
Size
60mm, 70mm, 80mm, 90mm, 104mm
Power
6W-200W+
Voltage
110V, 220V, 380V, 415V
Reduction Ratio
3K ~ 750K
Shaft Type
GN, GU, RC, RT
Transport Package
CTN
Specification
UL, CE, ISO9001, CCC, RoHS
Trademark
ZD
Origin
Cixi, Zhejiang, China
HS Code
85014000
Production Capacity
30000pcs/month
Packaging & Delivery
Package Size
25.00cm * 15.00cm * 15.00cm
Package Gross Weight
3.500kg
Product Description
Model Selection ZD Leader has a wide range of micro motor production lines in the industry, including DC Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Drum Motor, Planetary Gearbox, RV Reducer and Harmonic Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.• Model Selection Our professional sales representive and technical team will choose the right model and transmission solutions for your usage depend on your specific parameters.
• Drawing Request If you need more product parameters, catalogues, CAD or 3D drawings, please contact us.
• On Your Need We can modify standard products or customize them to meet your specific needs. Product Parameters AC Gear Motor
| MOTOR FRAME SIZE | 60 mm / 70mm / 80mm / 90mm / 104mm |
| MOTOR TYPE | Induction Motor / Reversible Motor / Torque Motor / Speed Control Motor |
| OUTPUT POWER | 10W / 15W / 25W / 40W / 60W / 90W / 120 W / 140W / 180W / 200W / 300W(Can Be Customized) |
| OUTPUT SHAFT | 8mm / 10mm / 12mm / 15mm ; Round Shaft, D-Cut Shaft, Key-Way Shaft (Can Be Customized) |
| Voltage type | Single phase 100-120V 50/60Hz; Three phase 200-240V 50/60Hz; Three phase 440-480V 60Hz 4P |
| Accessories | Electric Brake / Fan / Speed Controller / Terminal Box / Thermal Protector |
| GEARBOX FRAME SIZE | 60 mm / 70mm / 80mm / 90mm / 104mm |
| Gear Ratio | 3K-200K |
| Type Of Pinion | GN Type / GU Type |
| Gearbox Type | Regular Square Case gearbox / Right Angle Gearbox / L Type Gearbox |
